Home / Products / 5 KWH ~ 35 KWH 6000 Cycles Solar Lithium Stackable Lithium Ion Battery Lifepo4

This product is no longer available

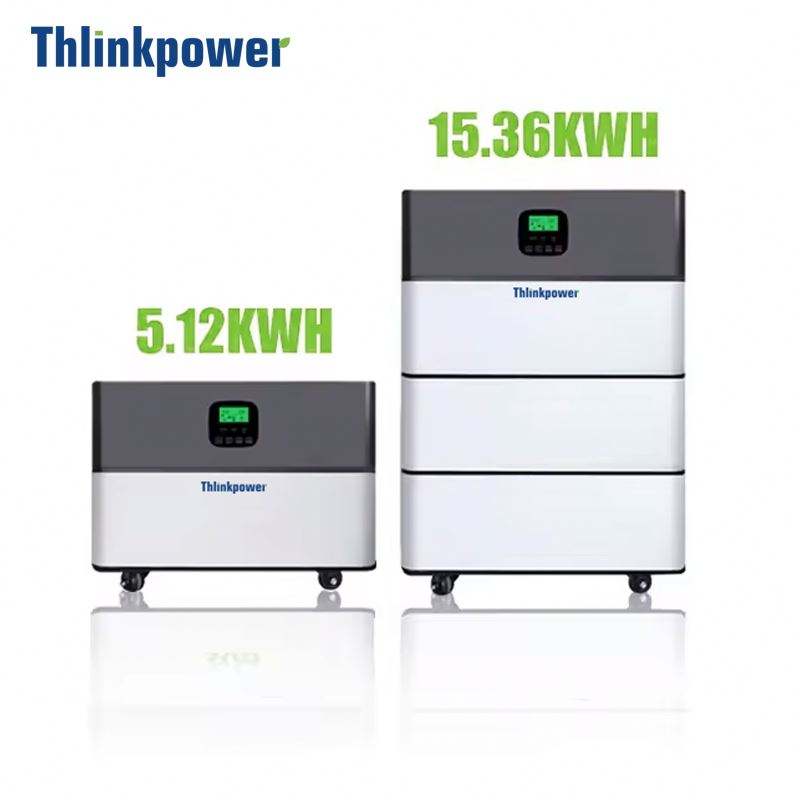

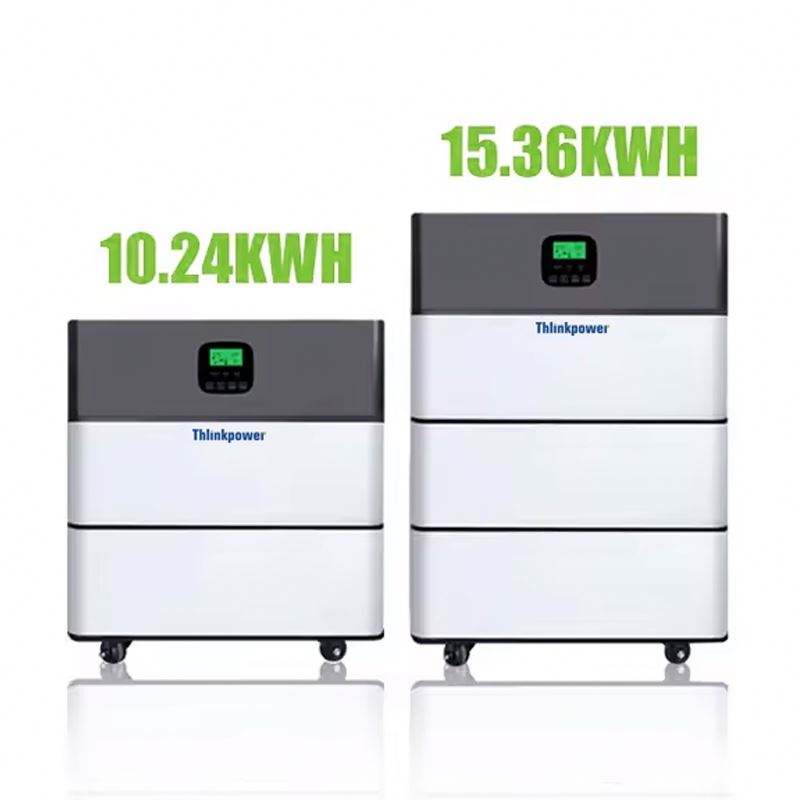

5 KWH ~ 35 KWH 6000 Cycles Solar Lithium Stackable Lithium Ion Battery Lifepo4

Share to:

Availability:

Product Description

Product Description

Total Capacity	5.12 KWH	10.24 KWH	15.36 KWH	20.48 KWH	25.6 KWH
Single module capacity	5.12 KWH	5.12 KWH	5.12 KWH	5.12 KWH	5.12 KWH
Module number	1 pcs	2 pcs	3 pcs	4 pcs	5 pcs
Standard voltage	51.2 V	51.2 V	51.2 V	51.2 V	51.2 V
Working voltage	43.2V~57.6V	43.2V~57.6V	43.2V~57.6V	43.2V~57.6V	43.2V~57.6V
Standard discharge current	100A	200A	300A	400A	500A
Standard charge current	50A	100A	150A	200A	250A
Suggested DOD	80%
Humidity	20%~60%
Installation	Stacked
IP rating	IP 20
Communication	CAN/RS485/RS232(WiFi/Bluetooth/4G WiFi/bluetooth/4G optional)
Product size (mm)	620550480	620550760	6205501040	6205501320	6205501600
N.W. Unit	50KG	80KG	120KG	150KG	190KG

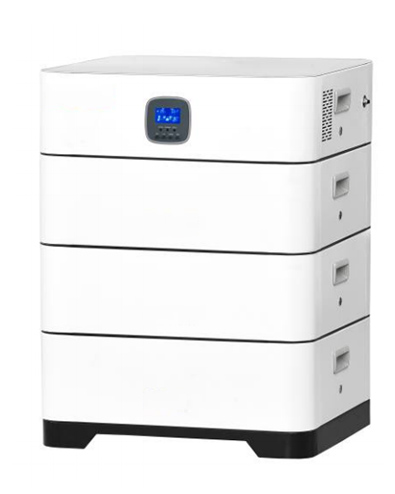

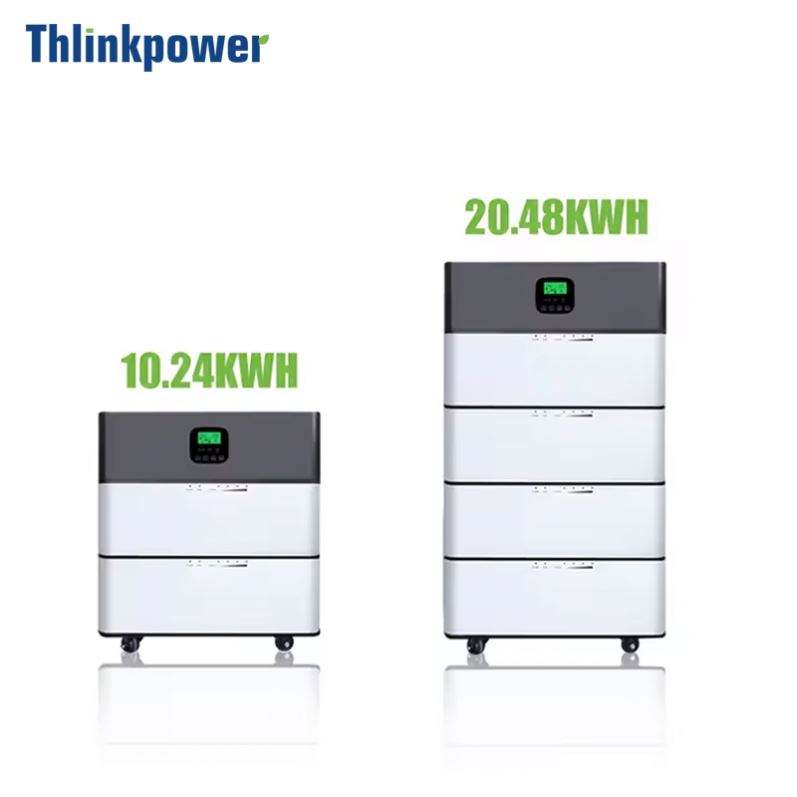

I Residential Stacked Battery Pack I 5~35kWh

The stacked lithium energy storage battery use long working life LiFePO4 cell, high performance BMS

to protect and manage the battery system.The max series is 8pcs, free combination for the capacity

and meet all kinds of demand for home / industry.

Product parameters

Recommend Products

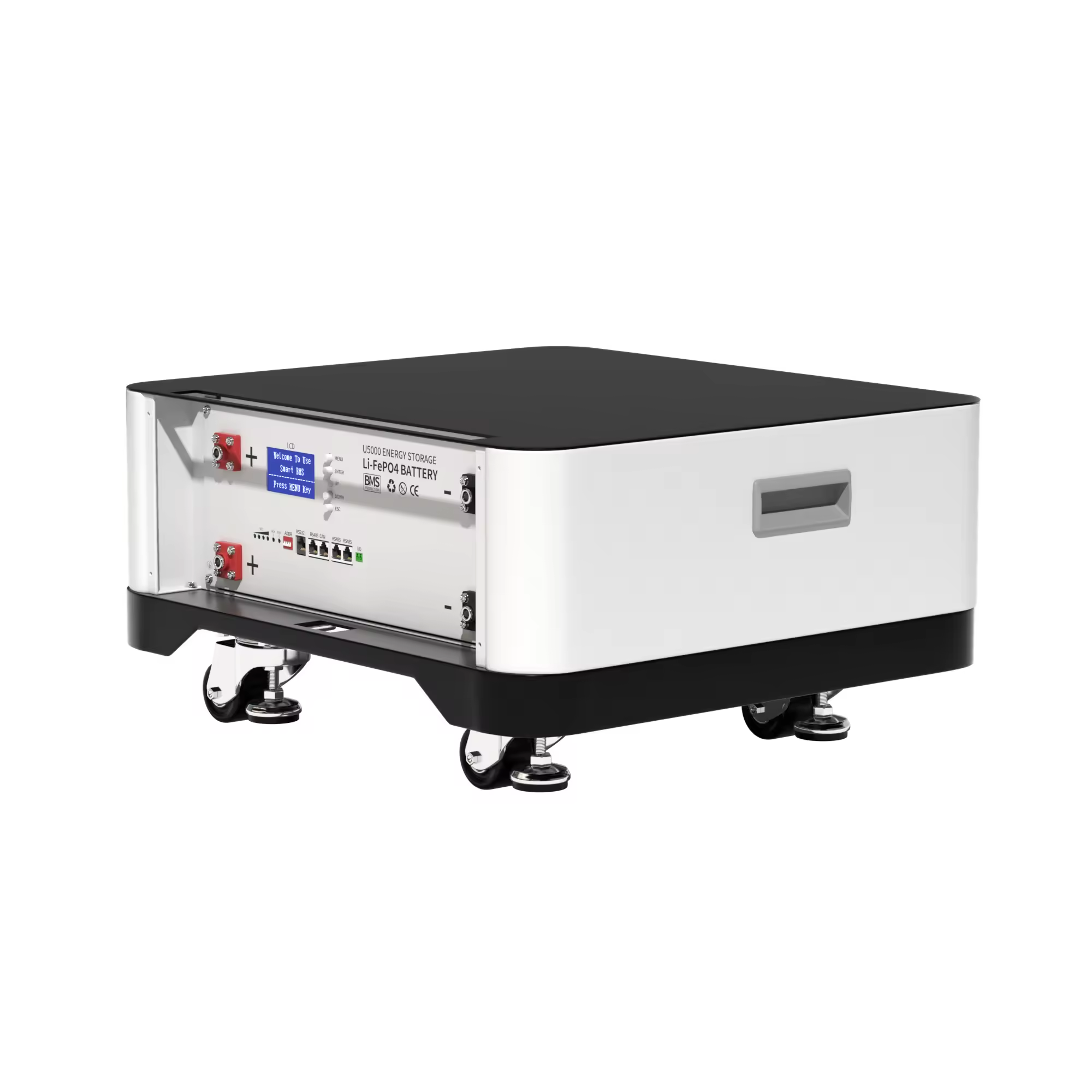

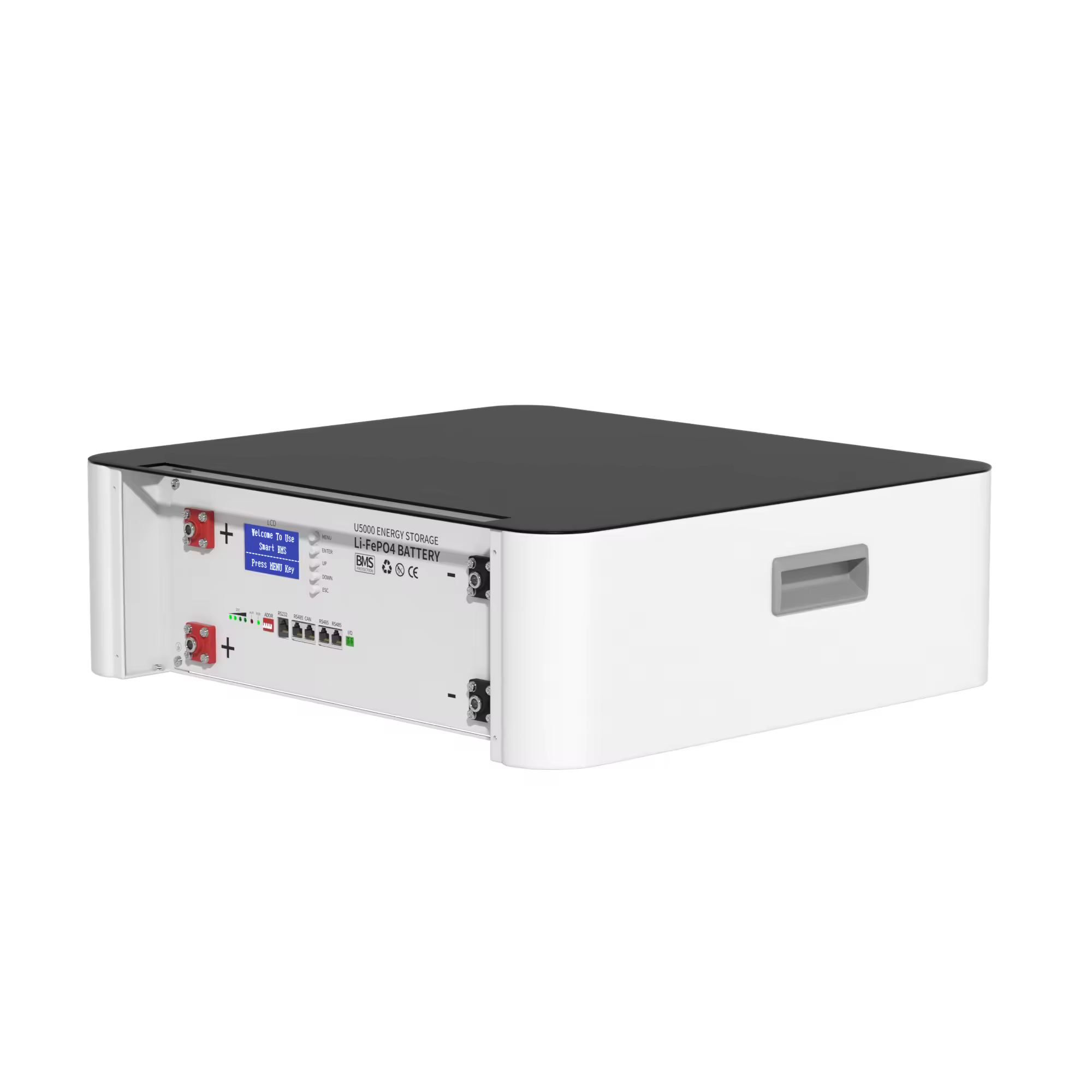

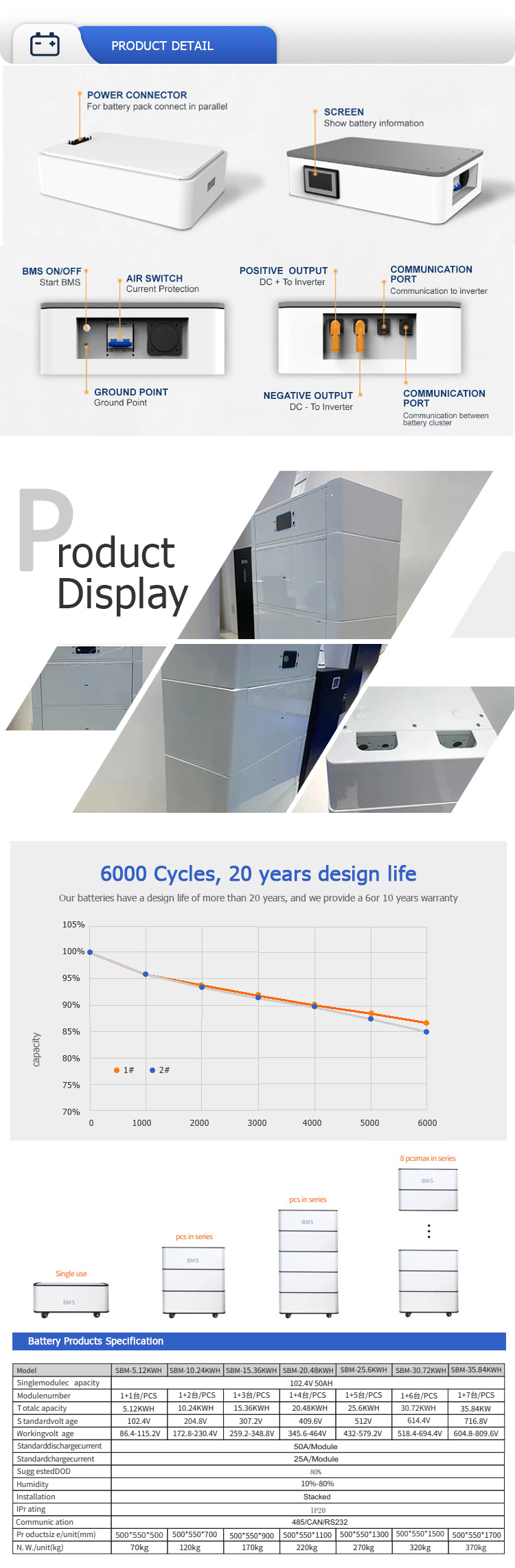

Products Details

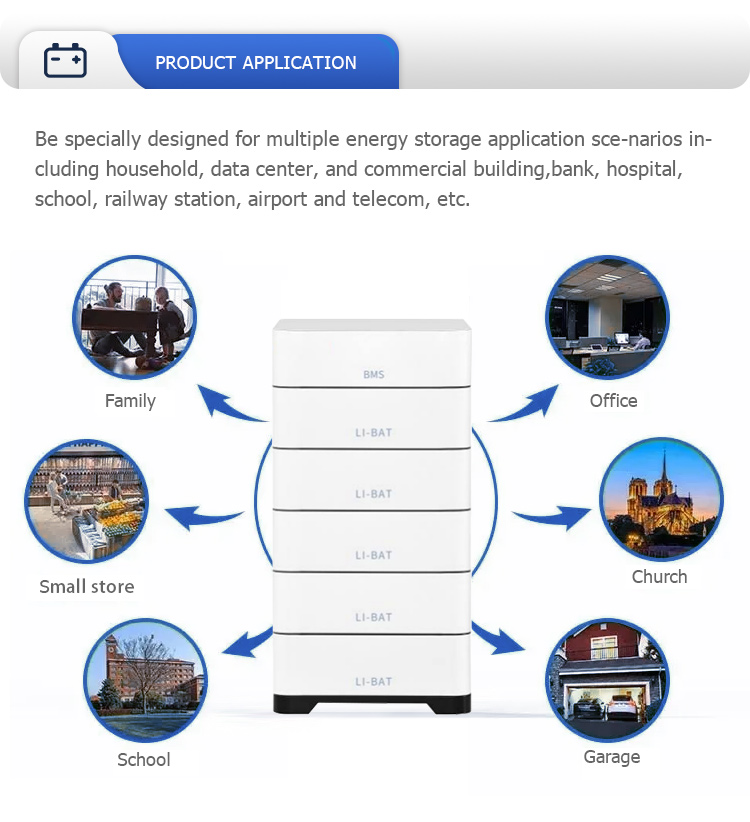

Application

Why Choose Us

FAQ

Q1: Are you direct manufacturer or trading company?
Thlinkpower is a global leading energy storage solution provider, owning three manufacturing centers in Ningbo China. We have 550+employees, and a R&D team of 150+ people with more than 10 years experience in this industry, who has deep understanding for energy storage and global carbon neutrality.

Q2: What services can thlinkpower provide you?

1. pre-sale service: Custom scheme design Pre-installation design of the system Early design of system debugging.

2. Quick install: Delivered with installation kit and video Remote Online Video Installation Guide.

3. Remote training: Online Product Training Online Troubleshooting Training.

4. After-sales service: 7 days x 24 hours dedicated and timely service Remote diagnostics and technical support and regular system maintenance.

Q3: Is the battery used in the battery pack grade A?

Yes, we only use Grade A and Brand new cells inside.

Q4: Do you test and match the battery before installing the battery pack?

Yes, every cell will be tested capacity, IR, voltage to surely match.
Voltage:The deviation less than 0.01V

Resistance:The deviation less than 0.1mΩ

Capacity: Same capacity matched

Q5: What is the cycle life of the battery? 6000 cycle life and 80% DOD.

Q6: How do I store my batteries? When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C~35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.

Q7: Do your batteries support series or parallel connection?

Our 48V battery packs support up to 15pcs in parallel, if you need series connection, please contact our sales staff

Q8:How long is the warranty?

Our energy storage equipment has undergone strict quality control and cyclic testing. All products can ensure long-term stable operation. The battery cell is guaranteed for 5-10 years and undergoes 6000-8000 cycles.

Q9: How about the after-sales service? We have a big after-sales team, if you have any problems, please tell us directly and we will try our best to solve all of your problems.
