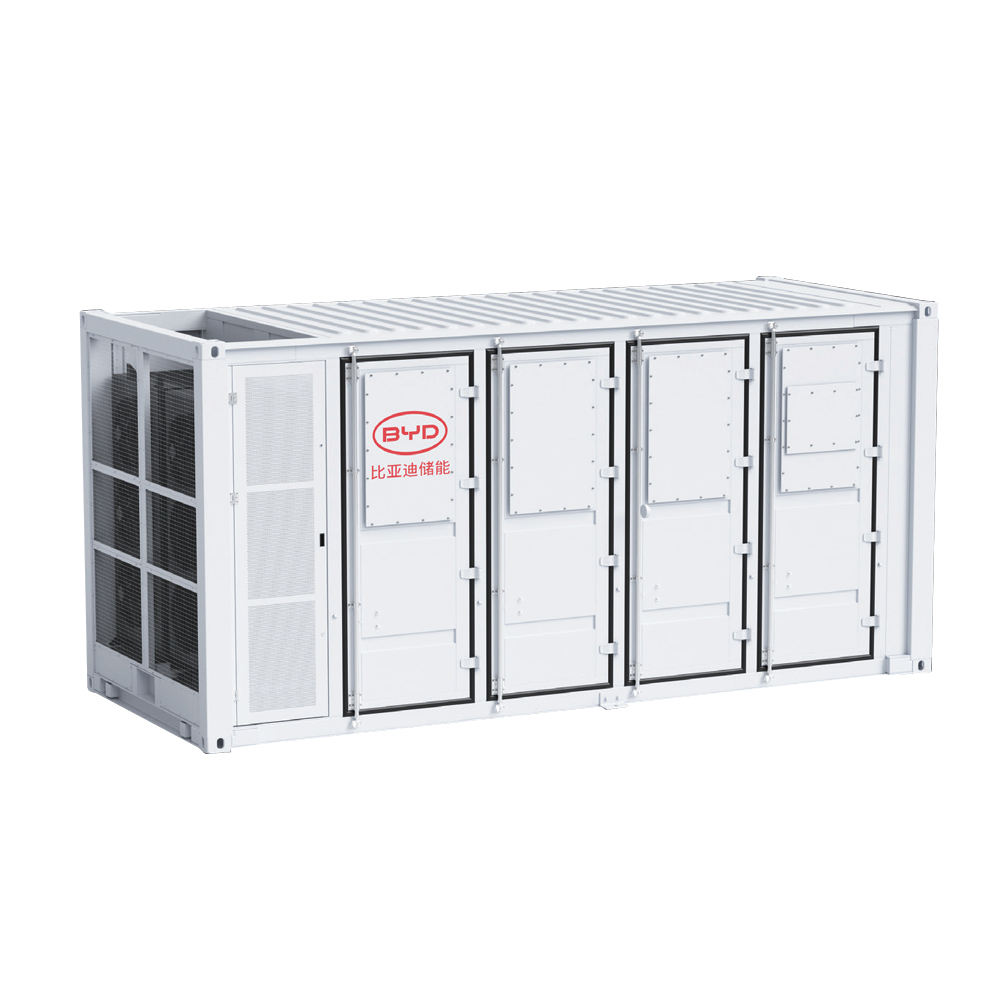

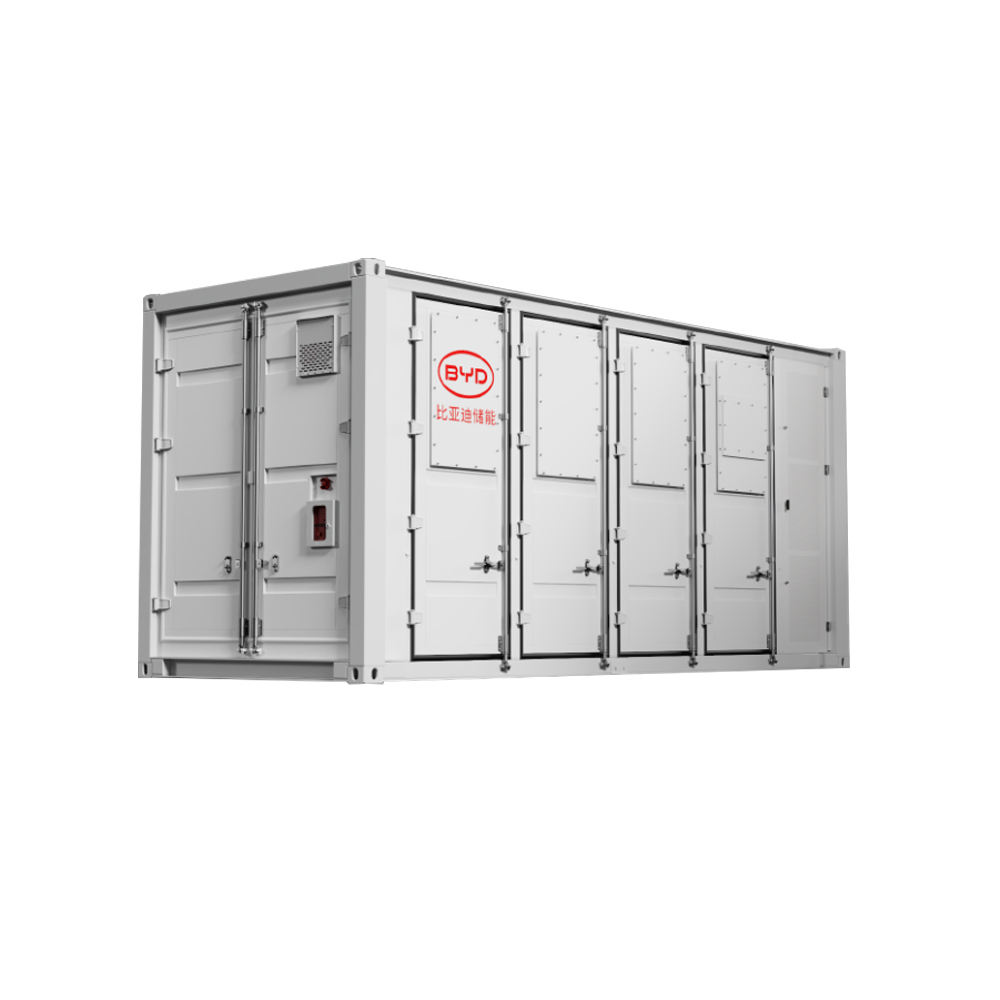

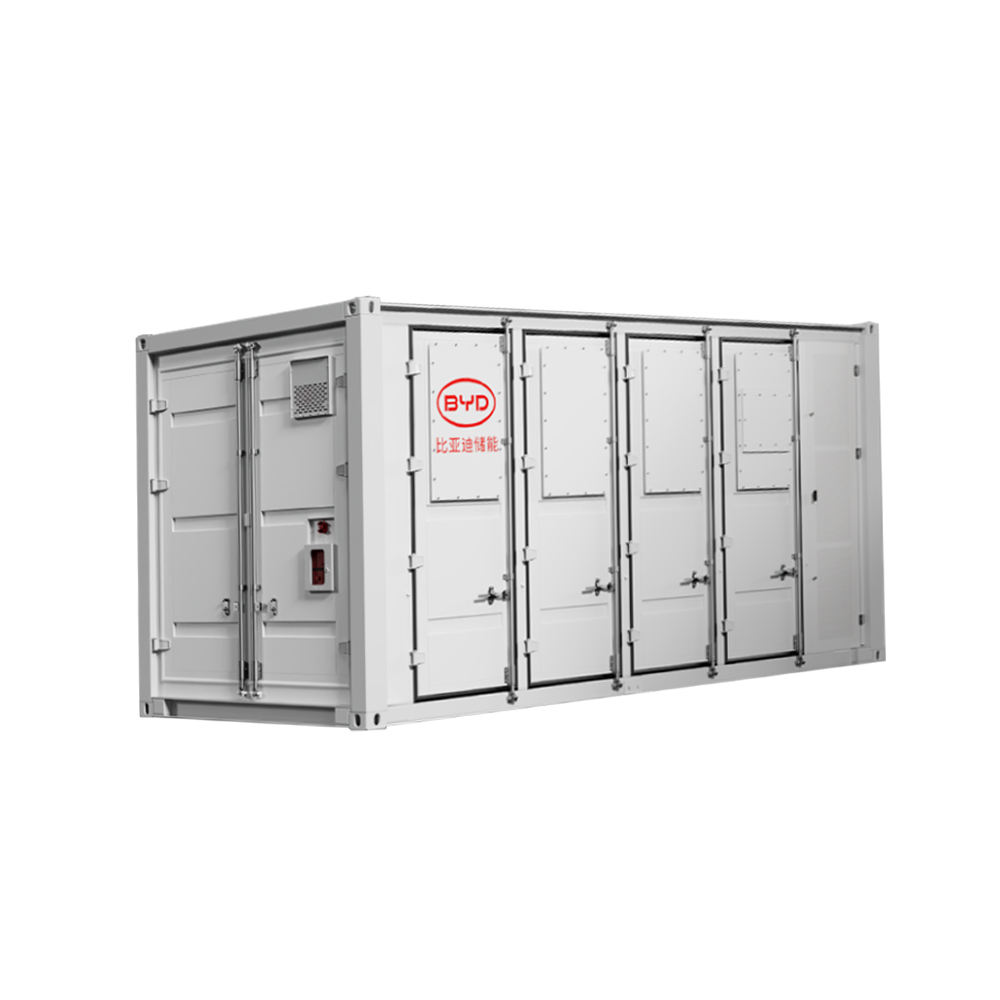

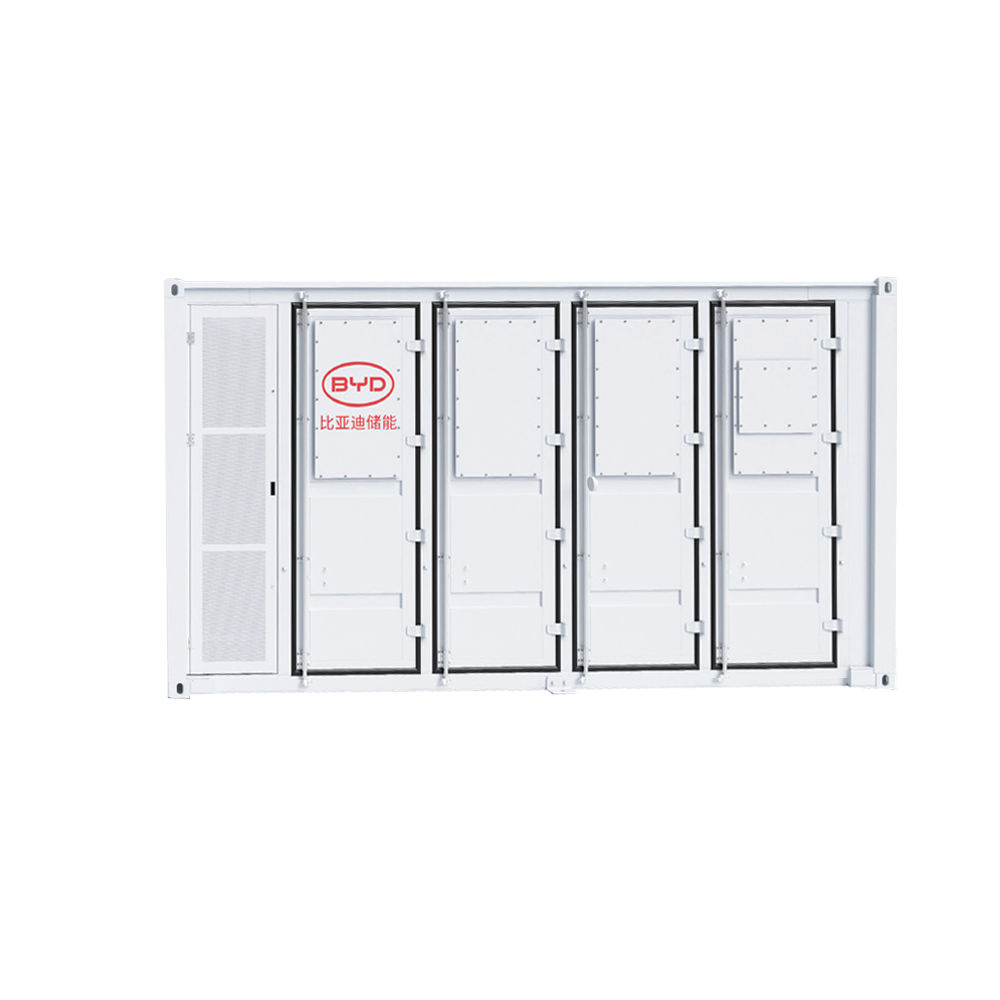

20ft ESS 3000kwh Flexible Configuration Battery Energy Storage System Energy Storage Container

Share to:

Availability:

Product Description

Product Description

Energy storage system

Covering a capacity of 250KWh-3.44MWh

The product features an integrated design housed within an outdoorcabinet,tightlyintegrating batteries, BMS, PCS, air conditioning, andfire protection systems. This design significantly enhances energydensity. Moreover, in conjunction with an advanced liquid coolingsystem for the batteries, the product boasts better stability, facilitatesexpansion, and offers greater flexibility in configuration.

High Safety

Using stable lithium iron phosphate basedbatteries and an independent fire protectionsystem, this system is stable and reliable

Increased System Stability

The system intelligently adjusts its mode basedon ambient temperature conditions, ensuringthat the temperature difference inside the battery cells remains within a narrow range ofless than 3 °C. This precise temperature controlcontributes to more stable system performance

International Certifications

Certified to European and American batterystandards such as lEc and UL

Standard Modular Design

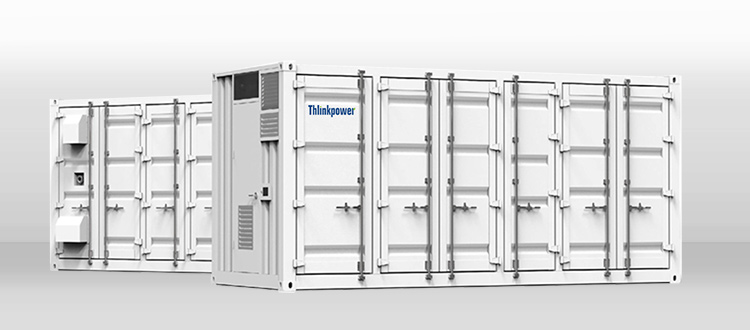

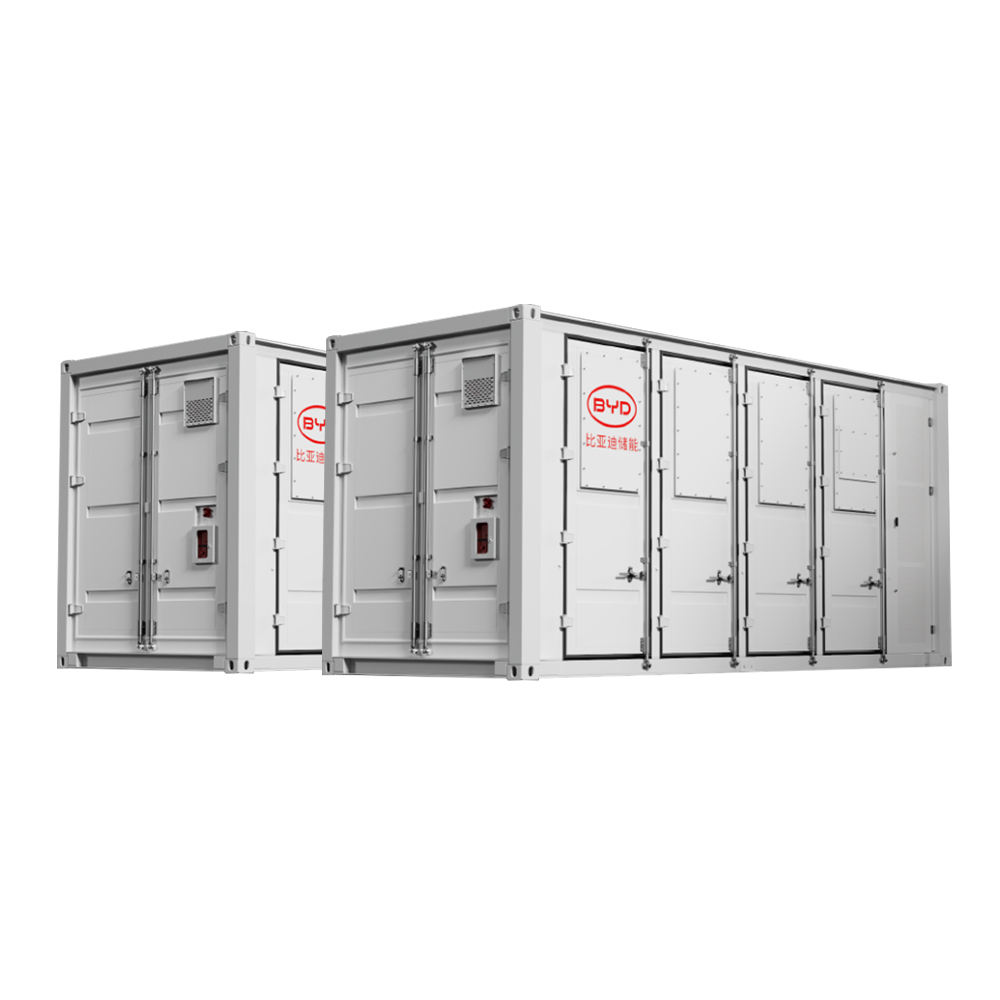

Using a standardized modular design, this system can be expanded easily by adding cabinets in parallel to reach the desired energyand power capacity for many applications

Product parameters

System Type	CS20H-B3168	CS20H-B2982
DC Data
Cell type	LFP C15-340Ah	LFP C15-320Ah
Pack type	1P52S	1P52S
Rack size	1P364S (7 Packs)	1P364S (7 Packs)
System configuration	8× 1P364S	8× 1P364S
Battery capacity (BOL)	3168kWh	2982kWh
DC usable energy (BOL) @FAT	2946kWh	2713kWh
DC usable energy (BOL) @SAT	2857kWh	2631kWh
Battery voltage range	946.4～1310.4V	946.4～1310.4V
Nominal power	1428.5kW	2631kW
General Data
Cabinet Type	Standard HQ	Standard HQ
Dimension (W×D×H)	6058×2438×2896mm	6058×2438×2896mm
Weight	＜35T	＜35T
IP rating	IP55	IP55
Anti-corrosion Grade	C4	C4
Operating ambient temperature range	-30℃～+55℃	-30℃～+55℃
Relative humidity	5%～100%	5%～100%
Max. Working altitude	≤2000m	≤2000m
Cooling concept	Liquid cooling	Liquid cooling
Noise	≤75dBA	≤75dBA
Fire suppression system	NOVEC1230/FM200/Water Sprinkler System
Auxiliary system nominal power	27kW	52kW
Auxiliary system voltage	400V	400V
Auxiliary system wiring	3P4W	3P4W
Auxiliary system peak power requirement @45℃，PF=0.8	33.75kVA	65kVA
Communication interfaces	Ethernet	Ethernet
Communication protocols	Modbus TCP/IP	Modbus TCP/IP
Standard color	RAL 9003	RAL 9003
Compliance	UN38.3, UN3536, UKCA, CE Marking, NFPA69, IEC62619, IEC60356

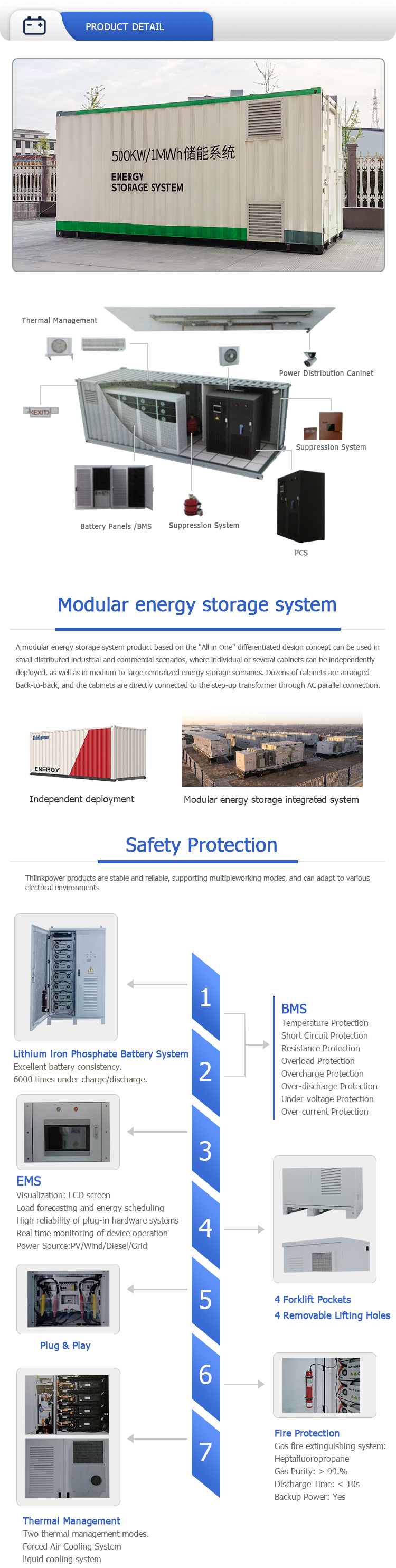

Products Details

Application

Why Choose Us

FAQ

Q1: Are you direct manufacturer or trading company?
Thlinkpower is a global leading energy storage solution provider, owning three manufacturing centers in Ningbo China. We have 550+ employees, and a R&D team of 150+ people with more than 10 years experience in this industry, who has deep understanding for energy storage and global carbon neutrality.

Q2: What services can thlinkpower provide you?
1. pre-sale service: Custom scheme design Pre-installation design of the system Early design of system debugging.
2. Quick install: Delivered with installation kit and video Remote Online Video Installation Guide.
3. Remote training: Online Product Training Online Troubleshooting Training. 4. After-sales service: 7 days x 24 hours dedicated and timely service Remote diagnostics and technical support and regular system maintenance.

Q3: Is the battery used in the battery pack grade A?
Yes, we only use Grade A and Brand new cells inside.

Q4: Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match.
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Same capacity matched

Q5: What is the cycle life of the battery?

6000 cycle life and 80% DOD.

Q6: How do I store my batteries?

When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C~35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.

Q7: Do your batteries support series or parallel connection?
Our 48V battery packs support up to 15pcs in parallel, if you need series connection, please contact our sales staff.

Q8:How long is the warranty?
Our energy storage equipment has undergone strict quality control and cyclic testing. All products can ensure long-term stable operation. The battery cell is guaranteed for 5-10 years and undergoes 6000-8000 cycles.

Q9: How about the after-sales service?

We have a big after-sales team, if you have any problems, please tell us directly and we will try our best to solve all of your problems.
