525W 530W 535W 540W 545W 182mm 25% Efficiency Monocrystalline Silicon Battery Cells Solar Panel 530

Share to:

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

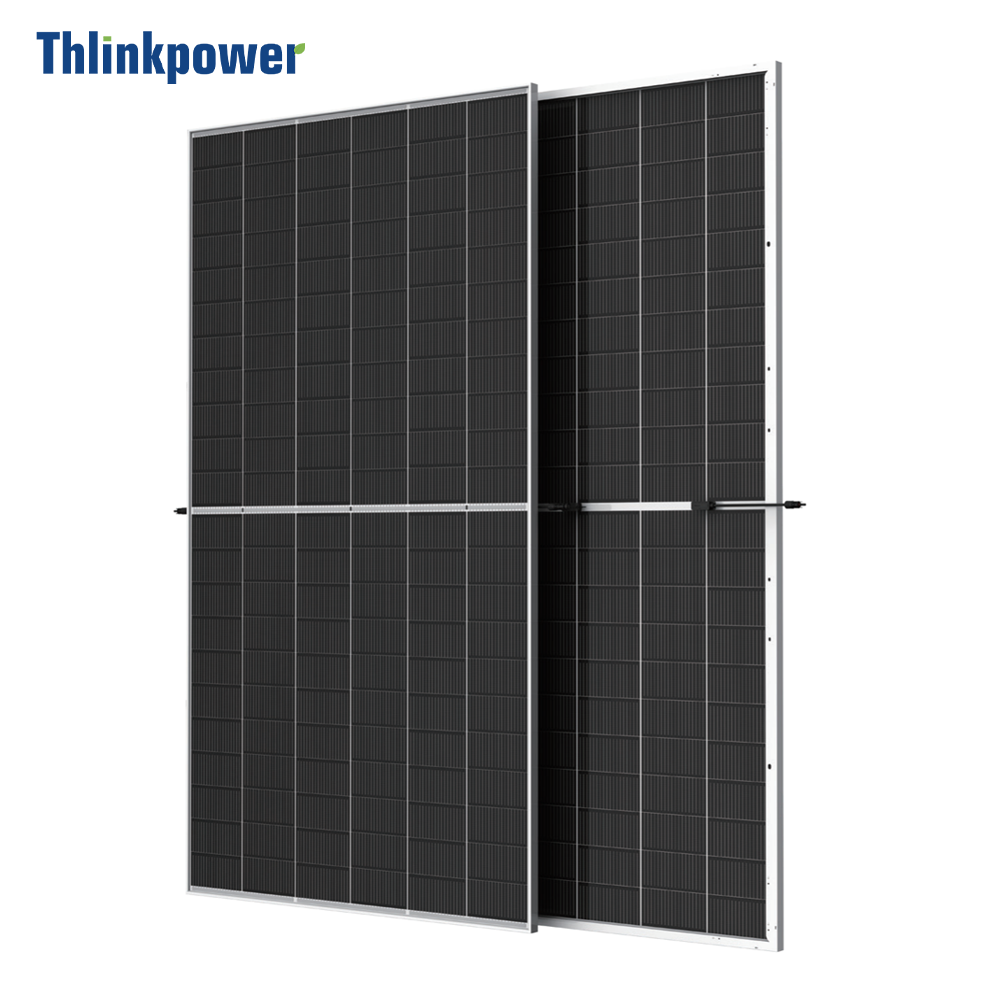

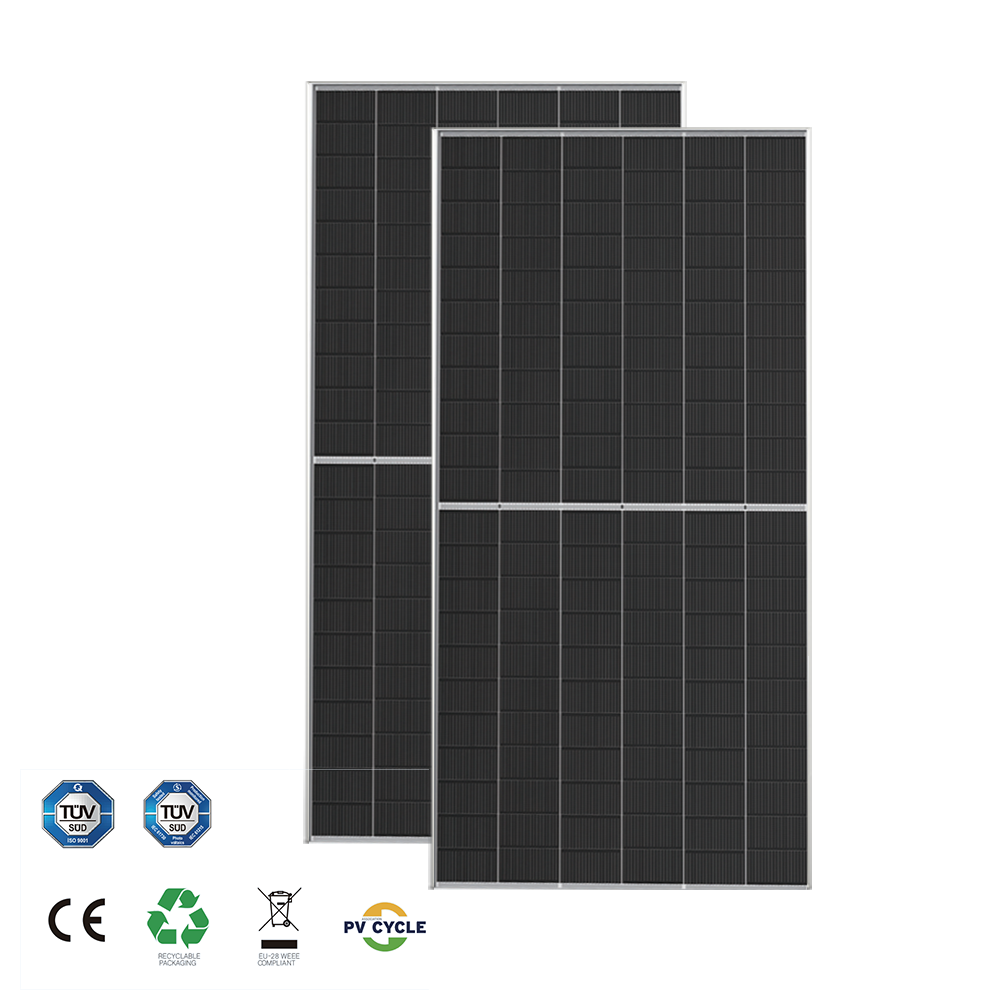

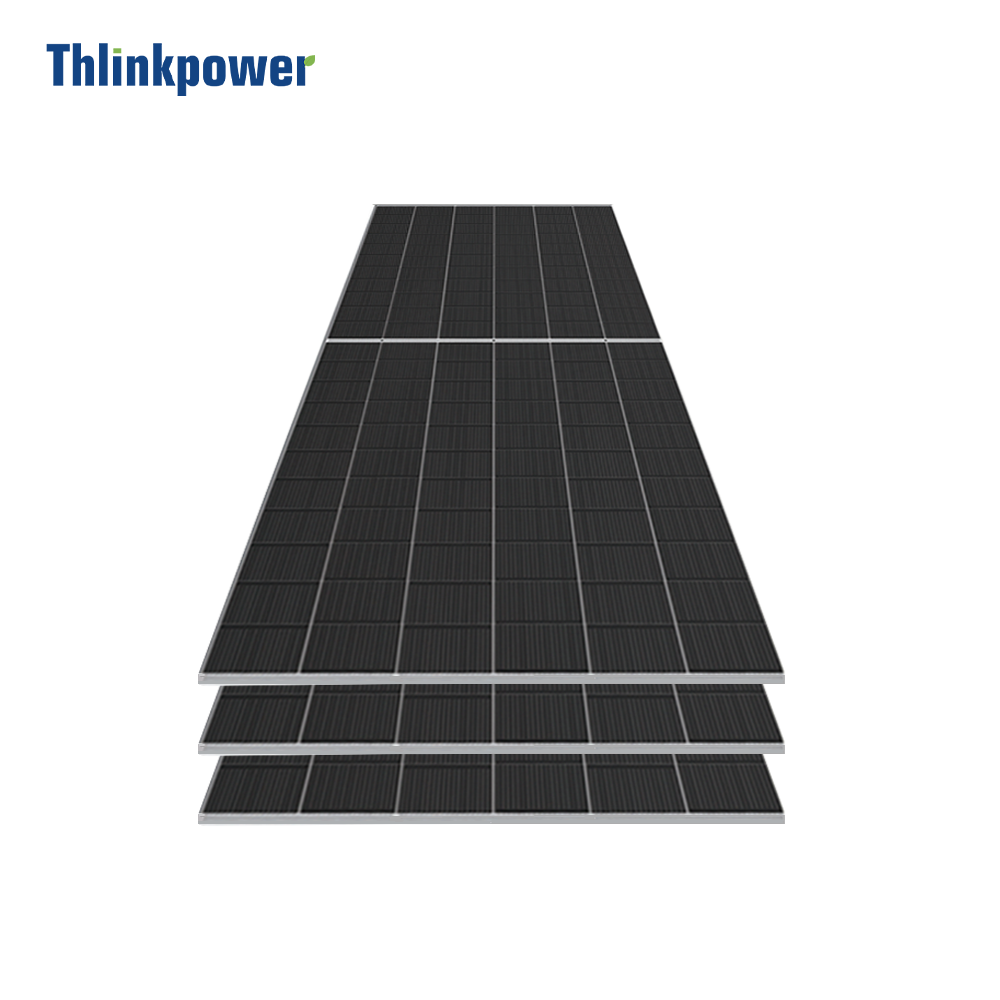

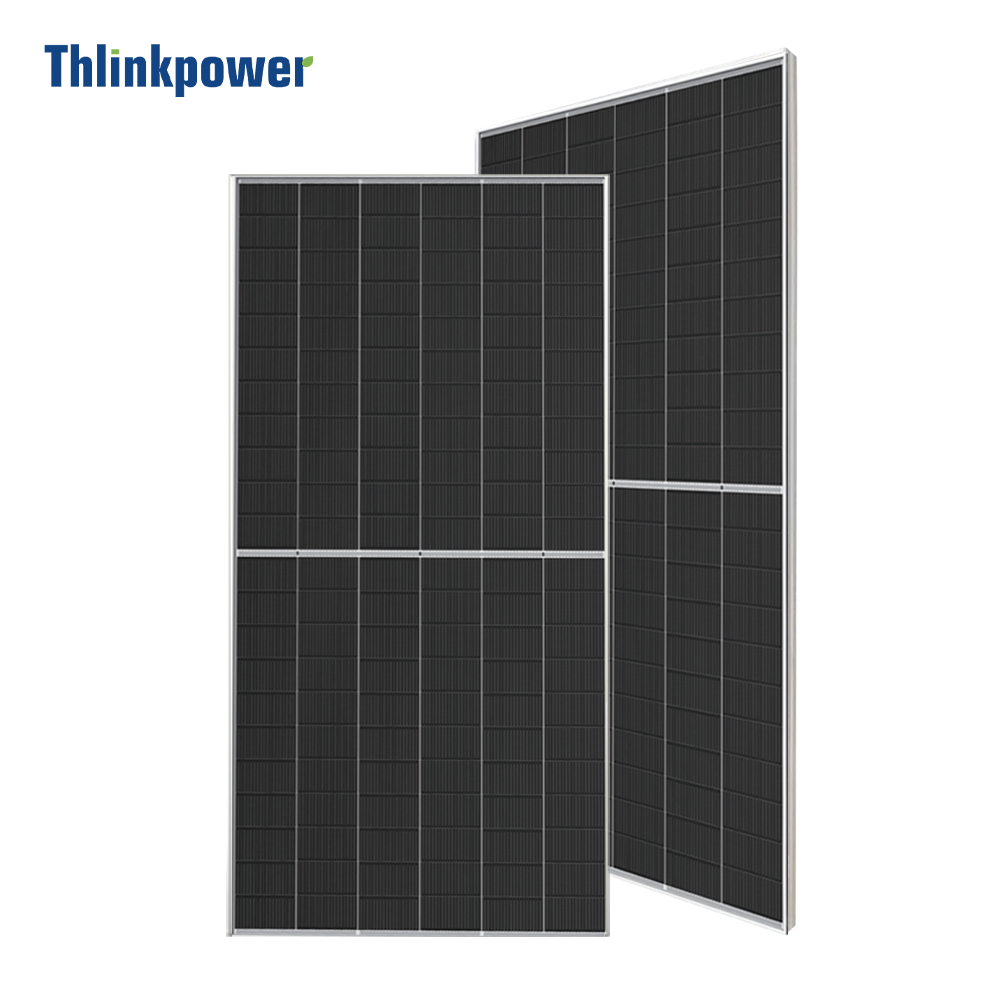

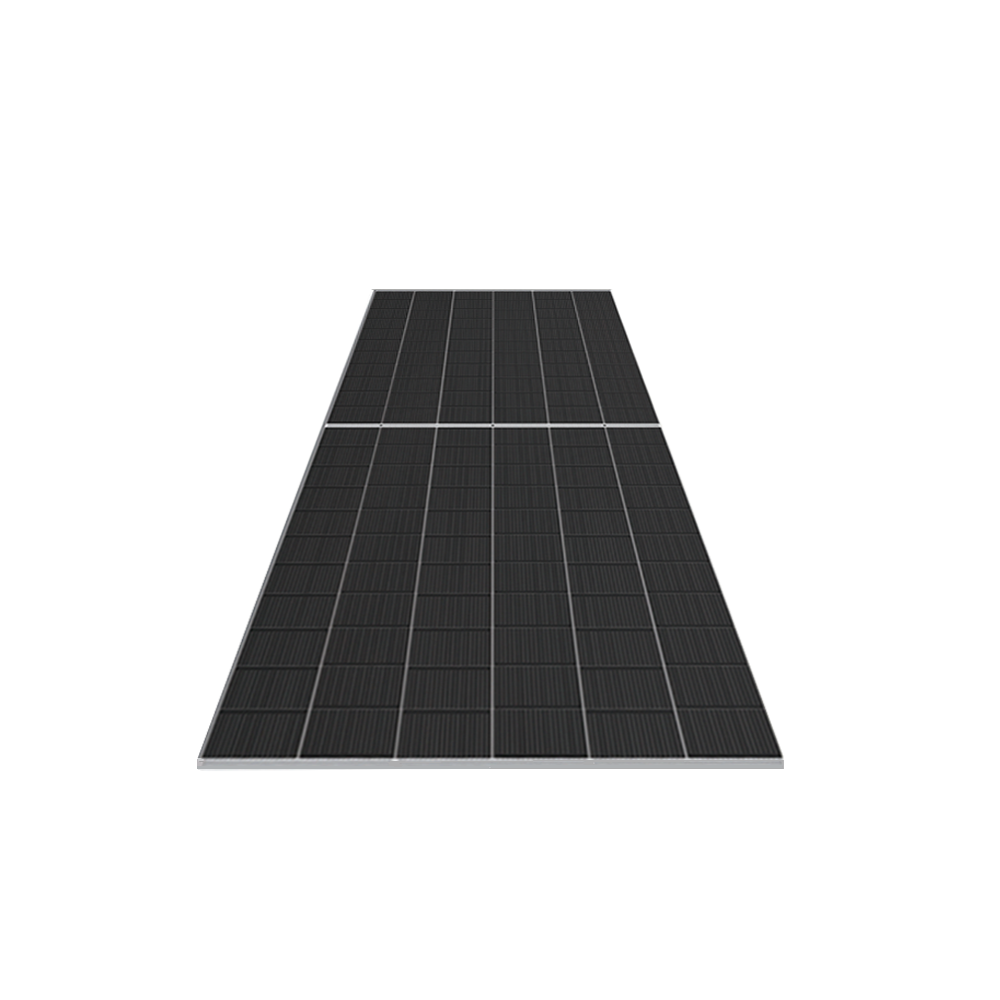

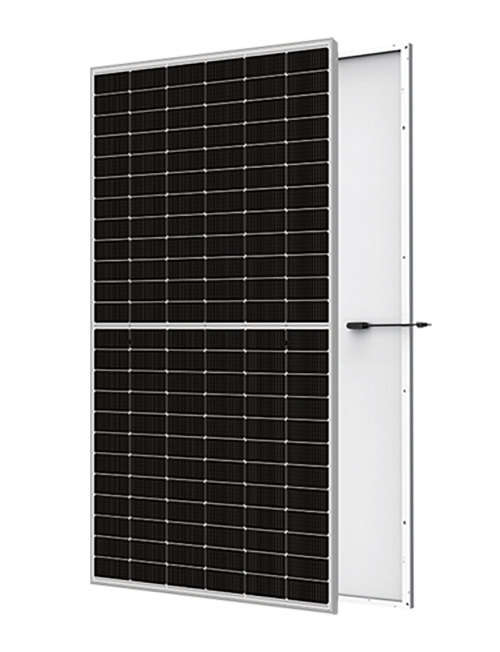

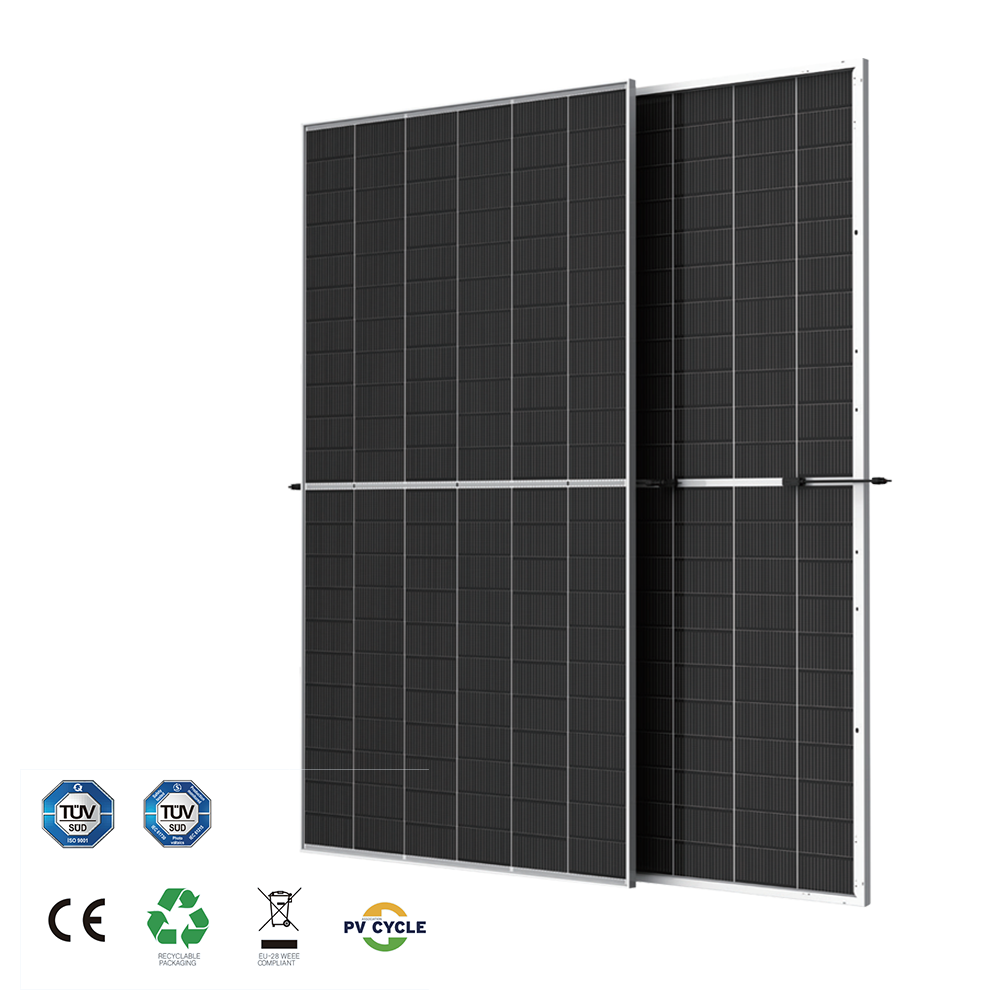

I Mono half-cut module Solar Panel I 525-545W

At least 30 years life cycle Extra power generation is higher than regular modules about 10%-30%.Lower electricity cost High double-sided ratio high module power Reduce the overall BOS of the PV system.

Product parameters

Peak Power(Pmax)	525	530	535	540	545
Maximum Power Voltage(Vmp)	41.2	41.4	41.6	41.76	41.93
Maximum Power Current(Imp)	12.75	12.81	12.87	12.94	13.00
Open Circuit Voltage(Voc)	49.02±3%	49.26±3%	49.50±3%	49.70±3%	49.90±3%
Short Circuit Current(Isc)	13.52±3%	13.58±3%	13.63±3%	13.72±3%	13.81±3%
Module Efficiency(﹪)	20.31	20.51	20.70	20.89	21.09
Cell Type	182*91 Mono
No. of Cells	144(6x12)*2
Dimensions	2279113435mm
Weight	27.2kg
Front Glass	3.2mm high transmission,low iron,tempered glass
Frame	Anodized Aluminium Alloy
Junction box	IP67/IP68 3 diodes
Output cables	4mm² cable 30cm+mc4
MaxWind Load/Snow Load	2400Pa/5400Pa

Application

Why Choose Us

FAQ

Q1: Are you direct manufacturer or trading company?
Thlinkpower is a global leading energy storage solution provider, owning three manufacturing centers in Ningbo China. We have 550+ employees, and a R&D team of 150+ people with more than 10 years experience in this industry, who has deep understanding for energy storage and global carbon neutrality.

Q2: What services can thlinkpower provide you?
1. pre-sale service: Custom scheme design Pre-installation design of the system Early design of system debugging.
2. Quick install: Delivered with installation kit and video Remote Online Video Installation Guide.
3. Remote training: Online Product Training Online Troubleshooting Training.

4. After-sales service: 7 days x 24 hours dedicated and timely service Remote diagnostics and technical support and regular system maintenance.

Q3: Are you offering warranty ?
yes , we are offering 12 years of quality warranty and 25 years of power loss within 20% guarantee for all customers.

Q4: how can you offer quality guarantee ? Each solar modules will be inpsected in twice for both EL and power testing during production to ensure our products quality.

Q5: What are your main products?
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.

Q6: How about the after-sales service?

We have a big after-sales team, if you have any problems, please tell us directly and we will try our best to solve all of your problems.

If you want to know more information, please feel free to send inquiry to our team, we will cover more details.
