For wholesalers, distributors, and large-scale solar installers, understanding the core components of a photovoltaic (PV) system is crucial for business success. Among these components, the solar inverter is arguably the most critical.
In this comprehensive guide, we will explore how many types of solar inverter exist, how they work, and which options are best suited for different commercial and residential applications.
A solar inverter is the "brain" of a solar energy system. While solar panels capture sunlight and convert it into Direct Current (DC) electricity, most home appliances and the utility grid operate on Alternating Current (AC).
The primary role of a solar inverter is to convert DC into usable AC. Beyond conversion, modern inverters also provide system monitoring, safety shutdowns, and power optimization to ensure the system operates at peak efficiency. For B2B stakeholders, choosing the right inverter type directly impacts the return on investment (ROI) and maintenance costs of a project.
When evaluating solar technology, the industry generally categorizes inverters into four primary types. Each has a specific architecture designed to meet different budget, efficiency, and layout requirements.

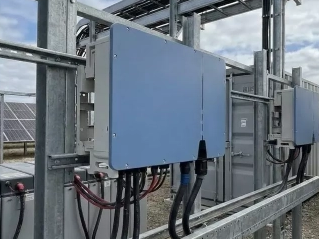

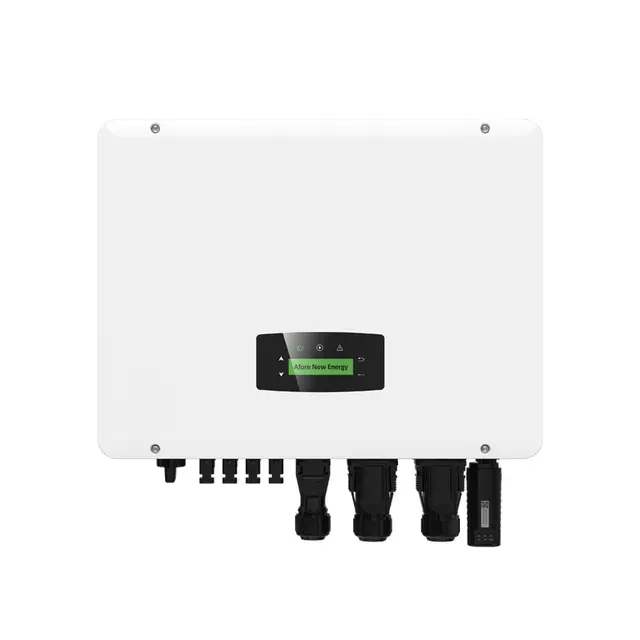

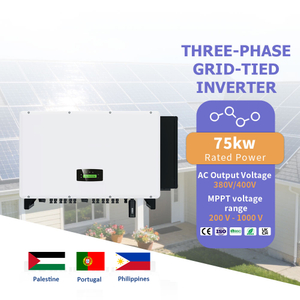

It is the most established and commonly used technology worldwide. In this setup, multiple solar panels are connected in a series (a "string"), and the total DC power is sent to a single standalone inverter unit.
The panels act like a single large panel. Each string of panels feeds DC electricity into the inverter, which then converts the cumulative power into AC. It is a centralized system, meaning one or two inverters usually handle the entire roof's output.
Cost-Effective: Because it uses a single unit for many panels, the cost per watt is significantly lower, making it the top choice for budget-conscious B2B projects.
Simple Maintenance: Being located at ground level or in an accessible area, troubleshooting and replacing a string inverter is straightforward.
High Reliability: The technology is mature, with a long track record of performance in various climates.
The "Christmas Light" Effect: If one panel in the string is shaded or fails, the performance of the entire string drops to the level of the weakest panel.
Limited Flexibility: String inverters require panels to have the same orientation and tilt. They are not ideal for complex roof shapes.
A micro inverter is a small, modular device installed directly on the back of each individual solar panel in a photovoltaic system.
Unlike traditional string inverters, which manage the power of an entire row of panels at once, a micro inverter converts Direct Current (DC) from a single panel into Alternating Current (AC) right at the source.
Individual Panel Optimization: Shading on one panel does not affect the others. This maximizes energy yield for roofs with trees or chimneys.
Granular Monitoring: Distributors can offer clients the ability to monitor the performance of every single panel via an app.
Scalability: It is much easier to add more panels to a system later without needing to replace a central inverter.
Higher Initial Cost: Micro inverters are significantly more expensive than string inverters on a per-watt basis.
Complex Installation: Installing a device under every panel takes more time and labor.
Maintenance Challenges: If a micro inverter fails, a technician must go onto the roof, remove the panel, and replace the unit.
Power optimizer inverters represent a middle ground between string and micro inverters. They are part of the Module-Level Power Electronics (MLPE) family.
Similar to micro inverters, a power optimizer inverter is placed on each panel. However, it does not convert DC to AC. Instead, it "conditions" the DC electricity (fixing the voltage) and sends it to a central string inverter.
Partial Shade Resilience: Like micro inverters, they mitigate the losses caused by shading or panel mismatch.
Higher System Efficiency: They ensure the central inverter always receives the optimal voltage.
Lower Cost than Micro Inverters: You get the benefits of MLPE without the high cost of putting a full inverter on every panel.
Added Complexity: More components mean more potential points of failure compared to a basic string system.
Inverter Dependency: You still rely on a central inverter. If the central inverter fails, the whole system goes down.

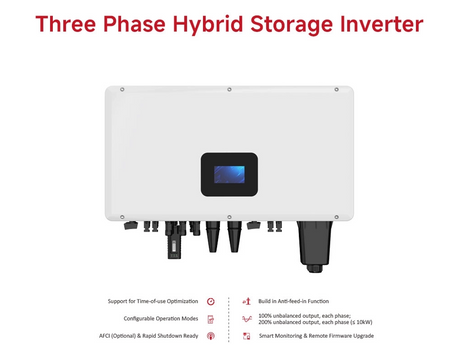

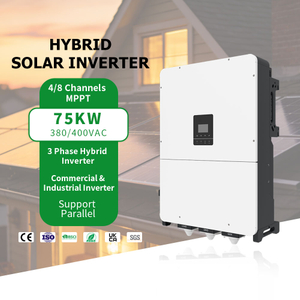

A hybrid inverter (also known as a multi-mode inverter) is an advanced solar inverter that can simultaneously manage inputs from solar panels, battery storage, and the utility grid.
Unlike a standard solar inverter—which only converts DC to AC for immediate use—a hybrid inverter acts as a centralized energy manager. It decides whether to power your appliances, charge a battery backup, or sell excess electricity back to the grid.
Solar Conversion: It converts DC electricity from your panels into AC for your home.
Battery Management: It directs excess solar energy to a battery bank instead of wasting it or sending it to the grid for low credits.
Grid Interaction: It can draw power from the grid when solar and battery levels are low, or export power when the battery is full.
Backup Power: During a grid outage, a hybrid inverter can automatically disconnect from the grid and provide "islanding" power to your home from the solar panels and batteries.
Battery Ready: It eliminates the need for separate solar and battery inverters, reducing system costs for clients wanting storage.
Grid Independence: Supports off-grid and backup power modes during utility outages.
Energy Management: Allows users to store cheap solar energy during the day and use it at night when rates are higher (Time-of-Use optimization).
Premium Pricing: These are the most expensive units due to the complex internal electronics.
Installation Expertise: Requires advanced knowledge of battery chemistry and electrical wiring.
Selecting the right solar inverter is a strategic decision that determines the efficiency, scalability, and ROI of a photovoltaic system. For B2B stakeholders like wholesalers and distributors, the choice should be guided by the specific technical requirements and economic goals of the target end-user.
Assess the Installation Environment: For large-scale Industrial and Commercial (C&I) projects with vast, unshaded roof spaces, string Inverters are the standard choice due to their low capital expenditure (CAPEX) and proven reliability.
Evaluate Roof Complexity: In High-End Residential markets where roofs may have multiple orientations or shading issues, micro inverters or power optimizers are preferred to ensure maximum energy yield and provide homeowners with granular, panel-level monitoring.
Prioritize Grid Stability: In Emerging Markets or regions with frequent power outages, hybrid inverters are the essential choice because they integrate solar production with battery storage, providing critical backup power and energy independence.
Verify Future Compatibility: To ensure long-term viability, always select inverters that are compatible with the latest high-wattage PV modules and offer robust software for remote diagnostics and firmware updates.

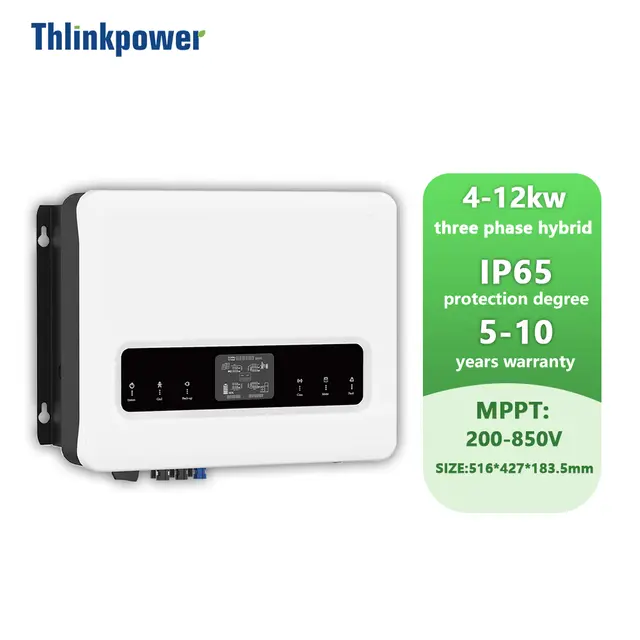

For distributors looking to capture the rapidly growing energy storage market, Thlinkpower's hybrid inverters stand out as a premium solution. These units offer a seamless "all-in-one" integration that manages solar, battery, and grid inputs within a single high-performance platform.
Versatile Performance: They support both on-grid and off-grid modes, making them ideal for customers seeking total energy security.
Simplified Logistics: By combining solar and battery management into one device, Thlinkpower reduces the number of components you need to stock and simplifies the installation process for your clients.
Enhanced ROI: With high conversion efficiency and smart energy management features, Thlinkpower inverters help end-users lower their electricity bills more effectively than standard string systems.
Understanding how many types of solar inverter are available is the first step in providing value to your customers. Whether it is the cost-efficiency of a string inverter, the precision of micro inverters, the balance of power optimizers, or the versatility of hybrid inverters, each technology has its place in the solar ecosystem.
At Thlinkpower, we are committed to providing high-quality energy solutions. By selecting the right inverter technology, you ensure long-term performance, customer satisfaction, and a sustainable future.
