Big LCD display;
IP65 ingress protection;
Power export limit ;

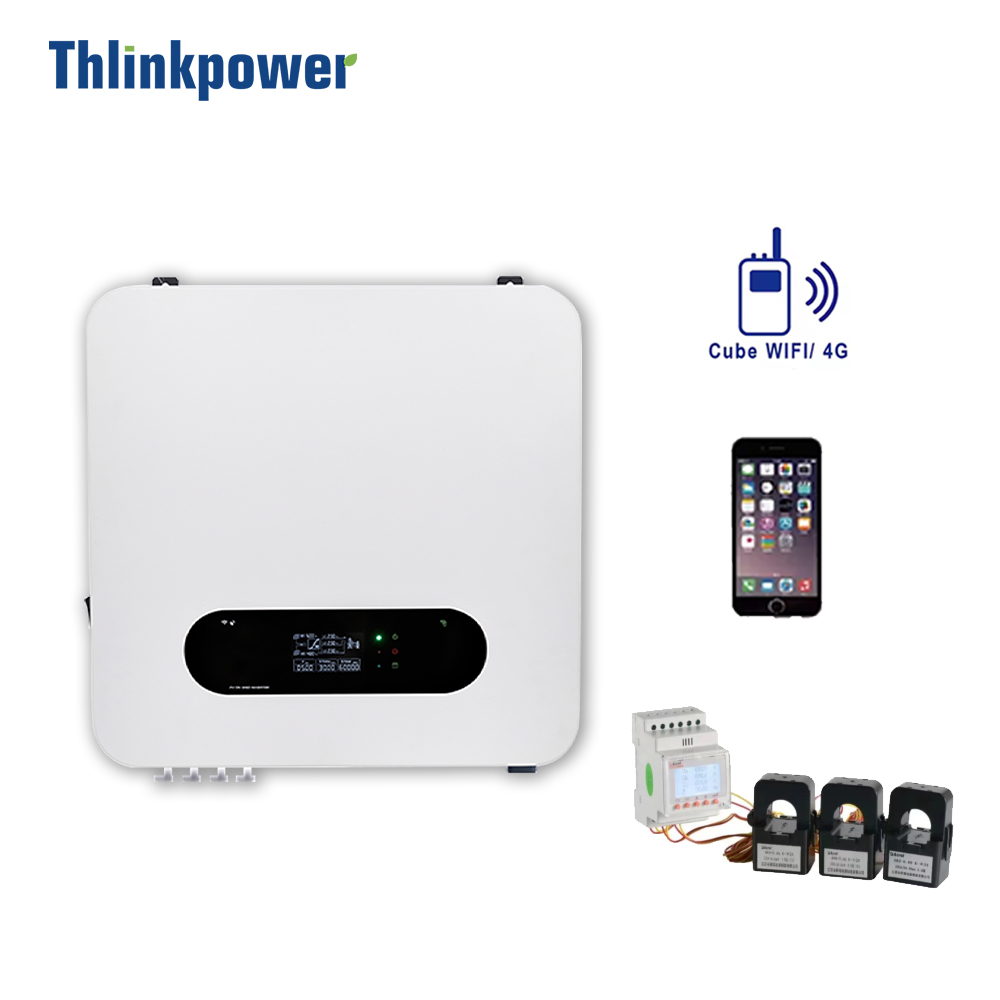

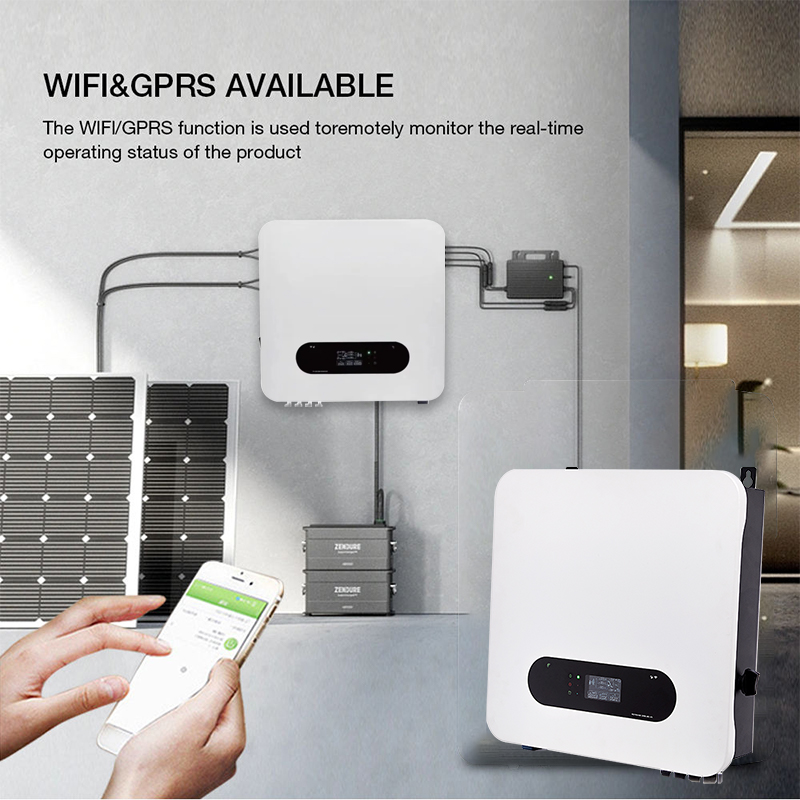

WIFI/GPRS/Lan communication optional;
Comply with international quality standards tested by TUV,BV,Dekra ETC.
| Quantity: | |
|---|---|
Product Description
The Thlinkpower 4 kW–15 kW Three-Phase On-Grid Solar Inverter is engineered for efficiency, durability, and seamless integration into commercial and industrial solar systems. Delivering nominal outputs from 4 kW up to 15 kW, this inverter offers industry-leading maximum conversion efficiency of up to 98.4% and IP65-grade weather protection. Designed for global compatibility, it features a wide input voltage range (up to 1000 VDC), dual MPPT trackers for optimized energy capture, and intuitive LCD monitoring. With robust safety protections and flexible communication options like WiFi, GPRS, and RS-485, this three-phase grid-tied inverter ensures reliable performance even in harsh environments.
High Efficiency & Dual MPPT
Achieves up to 98.4% maximum conversion efficiency and 99.9% MPPT efficiency across two MPPT channels, maximizing energy harvest.
Rugged & Certified Design
Built with IP65 protection, transformerless architecture, natural convection cooling, and CE compliance. Ideal for outdoor applications with dependable long-term performance.
Smart Connectivity & Safety
Equipped with LCD display and communication interfaces (RS-485, WiFi, GPRS) for remote monitoring. Includes comprehensive safety mechanisms like reverse-polarity protection, SPD, residual current protection, and anti-islanding.
| TECHNICAL SPECIFICATION | |||||||
| Model | TP4KTL | TP5KTL | TP6KTL | TP8KTL | TP10KTL | TP12KTL | TP15KTL |
| Input(DC) | |||||||
| Max. DC power | 5500W | 6500W | 7500W | 9500W | 11500W | 18000W | 22500W |
| Max.DC voltage | 1000Vd.c. | ||||||
| Min working voltage (Vdc) | 160Vd.c. | ||||||
| MPPT voltage range | 160-850Vd.c. | ||||||
| Max input current/per string | 18A/18A | ||||||
| Max.input short circuit per MPPT | 25A/25A | ||||||
| Number of MPP trackers | 2 | ||||||
| Strings per MPP tracker | 1 | ||||||
| Output (AC) | |||||||
| AC nominal power | 4000w | 500W | 6000W | 8000W | 10000W | 12000W | 15000W |
| Max AC apparent power | 5000VA | 6000VA | 7000VA | 8800VA | 11000VA | 13200VA | 16500VA |
| Max output current | 8A | 10A | 12A | 15A | 17A | 20A | 23A |
| Nominal AC output | 50/60 Hz; 400 Vac | ||||||
| AC output range | 45/55 Hz ; 280 ~ 490 Vac (Adj) | ||||||
| Power factor | 0.8leading...0.8laging | ||||||
| Harmonics | < 5% | ||||||
| Grid type | 3 W/N/PE | ||||||
| Efficiency | |||||||
| Maximum conversion efficiency | 98.00% | 98.20% | 98.20% | 98.40% | 98.40% | 98.40% | 98.40% |
| Euro Efficiency | 97.50% | 97.70% | 97.80% | 97.90% | 97.90% | 97.90% | 98.00% |
| MPPT Efficiency | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% | 99.90% |
| Safety and Protection | |||||||
| DC reverse-polarity protection | Yes | ||||||
| DC breaker | Yes | ||||||
| DC/AC SPD | Yes | ||||||
| Leakage current protection | Yes | ||||||
| Insulation Impedance Detection | Yes | ||||||
| Residual Current protection | Yes | ||||||
| General Data | |||||||

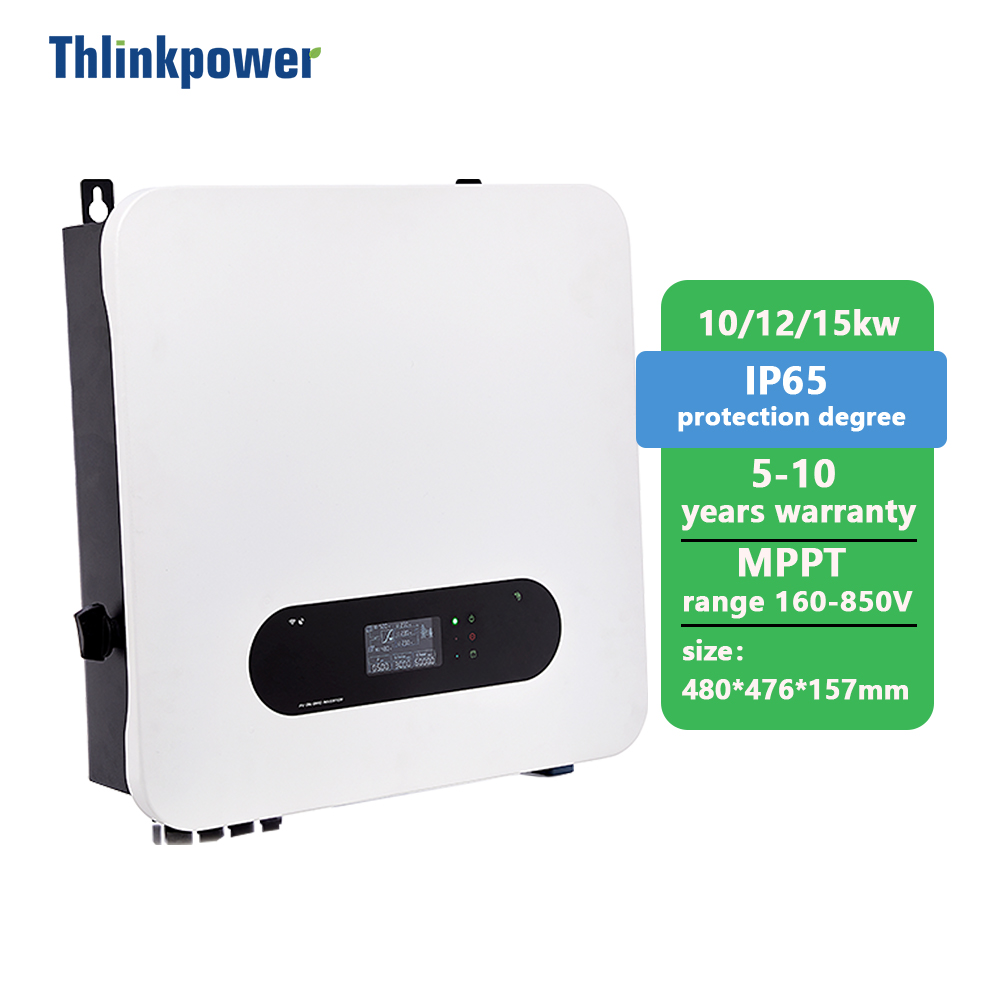

| Dimension (W/H/D) | 480*476*157 | ||||||
| Weight | 16 | ||||||
| Operating temperature range ºC | -25 ~ +60 | ||||||
| Degree of protection | IP65 | ||||||
| Cooling concept | Smart Cooling | ||||||
| Topology | Transformerless | ||||||
| Display | LCD | ||||||
| Humidity | 0-95%, no condensation | ||||||
| Communication | RS485/WiFi/GPRS | ||||||
| Warranty | Standard 5 years; 7/10 years optional | ||||||
| Certificates and Approvals | |||||||
| Certificates | CQC, VDE-AR-N4105,VDE0126-1-1, AS4777, IEC61727, IEC62116 | ||||||
