Product Description

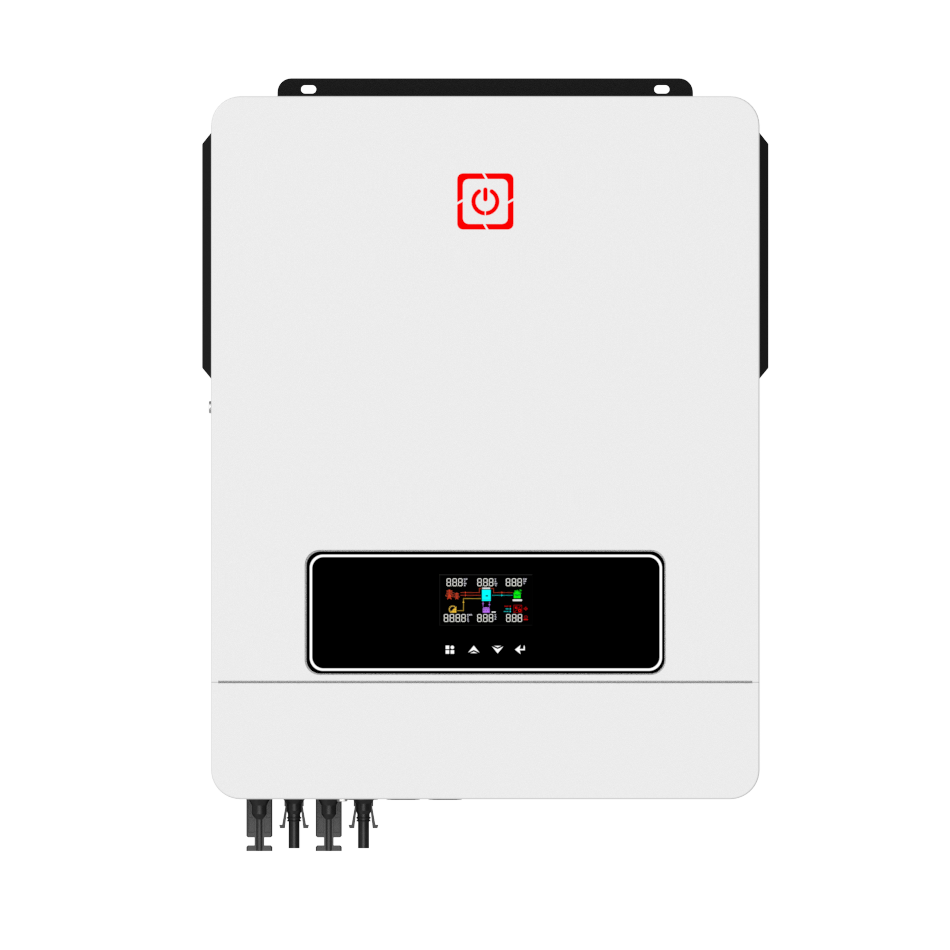

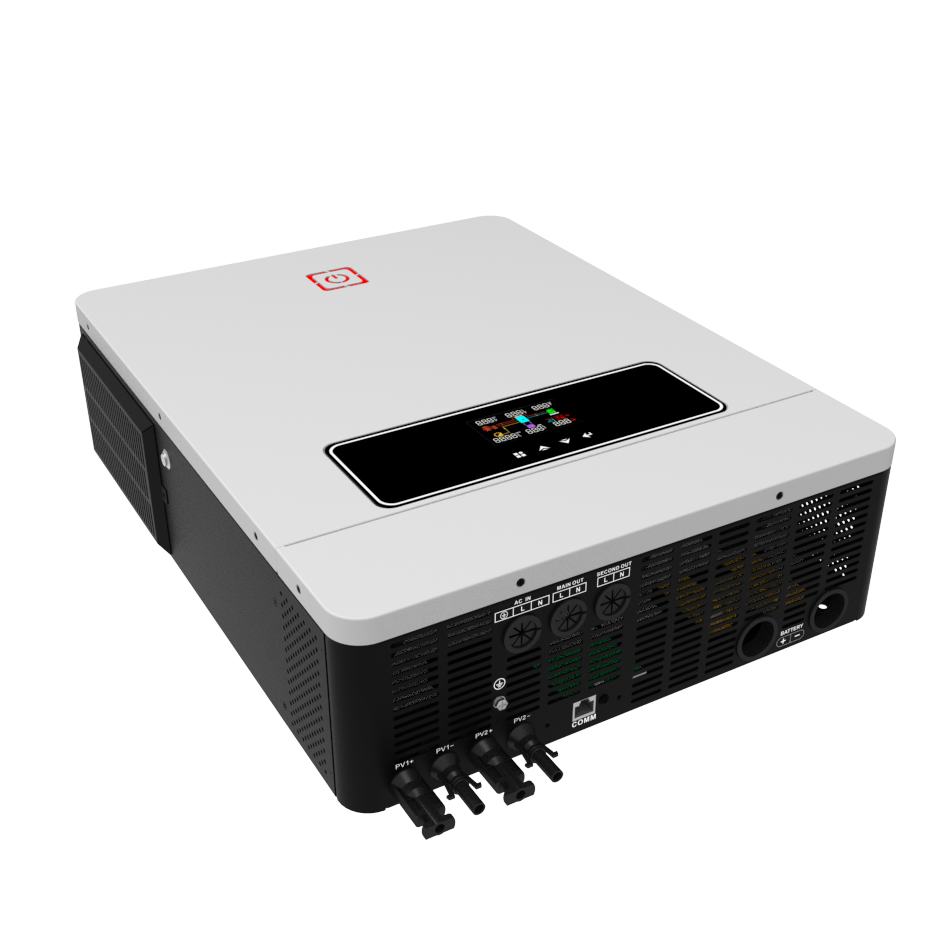

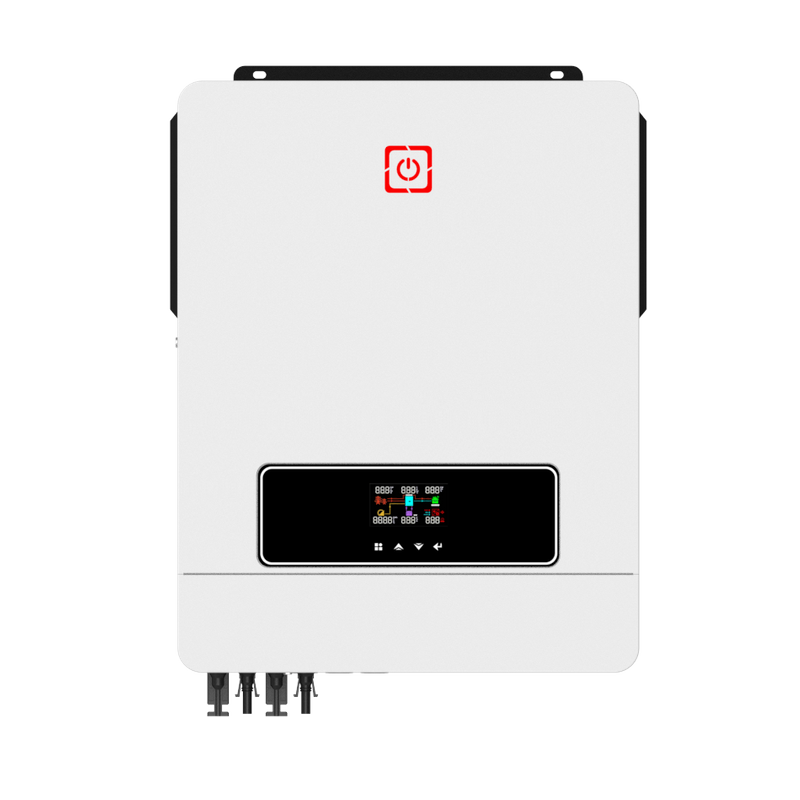

The Pure Sine Wave Hybrid Solar Inverter 8-10Kw is a powerful and versatile energy solution designed for residential and commercial applications. Supporting both on-grid and off-grid modes, it ensures continuous power supply with a rated output of 8200W/10200W. Equipped with a high-capacity 160A MPPT solar charger, this inverter maximizes energy harvest even under variable sunlight. Built-in features like WiFi/GPRS connectivity, dual communication ports, and smart battery charging extend system reliability and battery life. With CE safety compliance and robust anti-dust protection, it delivers consistent, intelligent performance even in demanding environments.
Advanced MPPT & Efficiency
Dual MPPT with up to 98% conversion efficiency ensures optimized solar power utilization.
Flexible Hybrid Operation
Supports on-grid, off-grid, and hybrid modes, with seamless switching and dual load outputs.
Smart Monitoring & Safety

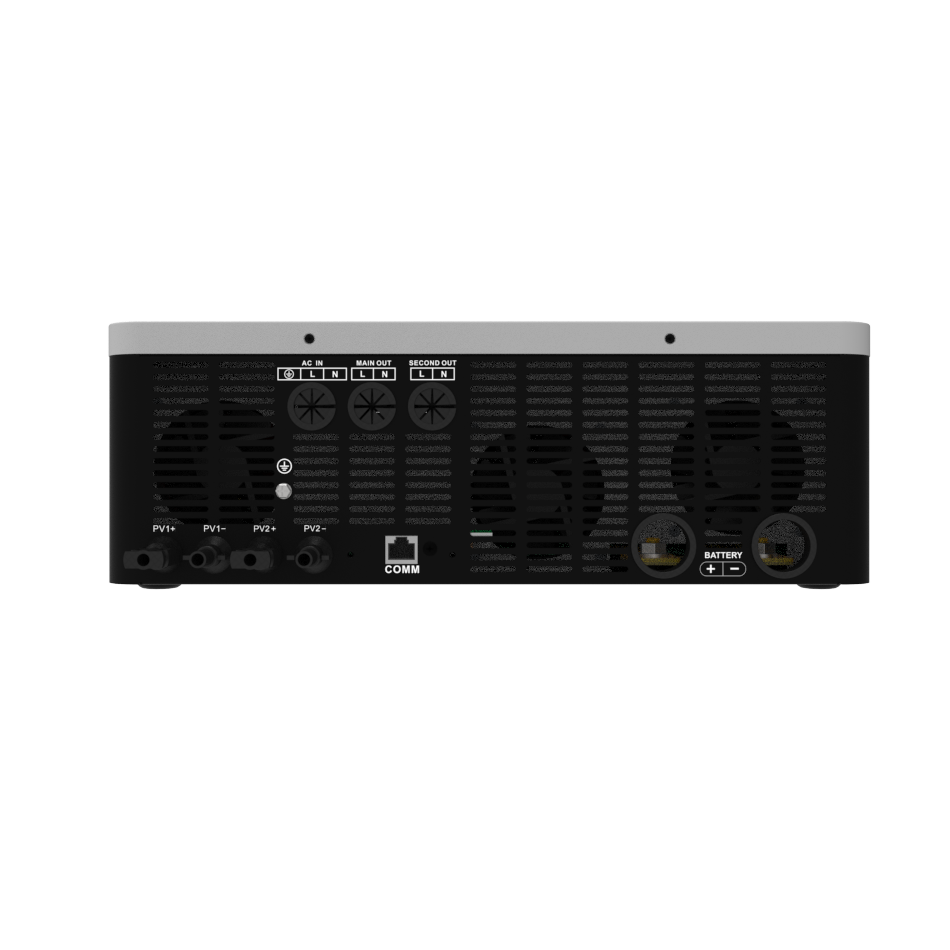

WiFi/GPRS app compatibility, RS232/RS485 communication, and CE-certified protections guarantee safe and remote operation.
| MODEL | Max-8.2KW | Max-10.2KW |
| Phase | 1-phase | |
| Maximum PV Input Power | 5400W+5400W | |
| Rated Output Power | 8200W/8200VA | 10200W/10200VA |
| Maximum Solar Charging Current | 160A | |
| GRID-TIE OPERATION | ||
| PVINPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| Start-up Voltage/lnitial Feeding Voltage | 90VDC/120VDC | |
| MPPT Voltage Range | 90~450VDC | |
| Maximum Input Current | 2/18A | |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Voltage Range | 195~253VAC | |
| Nominal Output Current | 35.6A | 44.3A |
| Power Factor | >0.99 | |
| EFFICIENCY | ||
| Maximum Conversion Efficiency(DC/AC) | 98% | |
| TWO LOAD OUTPUT POWER | ||
| Full Load | 8200W | 10200W |
| Maximum Main Load | 8200W | 10200W |
| Second Load Range | 1640W~5740W | 2040W~7140W |
| Maximum Load Cut Off Voltage | 52VDC | |
| Maximum Load Return Voltage | 54VDC | |
| OFF-GRID OPERATION | ||
| AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |
| Acceptable Input Voltage Range | 90~280VAC or 170~280VAC | |
| Frequency Range | 50±1Hz/60±1Hz | |
| MaximumAC input Current | 48.2A | 60A |
| PVINPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| MPPT Voltage Range | 90~450VDC | |
| Maximum Input Current | 2/18A | |
| BATTERY MODE OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Wave Form | Pure sine wave | |
| Efficiency(DC to AC) | 94% | |
| BATTERY&CHARGER | ||
| Nominal DC Voltage | 48VDC | |
| Maximum Solar Charging Current | 160A | |
| MaximumAC Charging Current | 140A | |
| Maximum Sotar+AC Charging Current | 160A | |
| HYBRID OPERATION | ||
| PVINPUT(DC) | ||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |
| Start-up Voltage/lnitial Feeding Voltage | 90VDC/120VDC | |
| MPPT Voltage Range | 90~450VDC | |
| Maximum Input Current | 2/18A | |
| GRID OUTPUT(AC) | ||
| Nominal Output Voltage | 220/230/240VAC | |
| Output Voltage Range | 195~253VAC | |
| Nominal Output Current | 35.6A | 44.3A |
| AC INPUT | ||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |
| MaximumAC Input Current | 48.2A | 60A |
| Maximum Charging Current | 140A | |
| GENERAL | ||
| PHYSICAL | ||
| Dimension,H*W*D(mm) | 500*390*136 | |
| Cartoon Dimension,H*W*D(mm) | 588*463*205 | |
| Net Weight(kgs) | 14.5 | 14.7 |
| Gross Weight(kgs) | 16.1 | 16.2 |
| INTERACE | ||
| Communication Port | RS232/RS485/WIFI/GPRS/LITHIUM BATTERY | |
| ENVIRONMENT | ||
| Humidity | 5%to 95%Relative Humidity(Non~condensing) | |
| Operating Temperature | -10℃~50℃ | |
| STANDARD | ||
| Compliance Safety | CE | |
