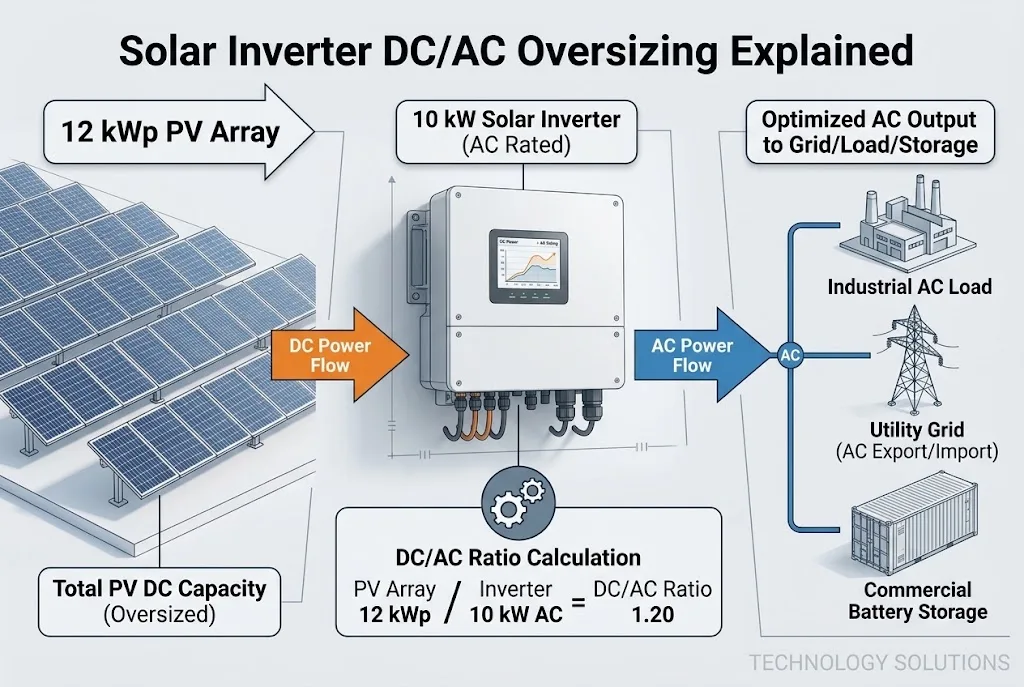

Solar inverter sizing is not simply a matter of matching the PV array's nameplate capacity to the inverter's AC rating. In many well-designed solar projects, the DC capacity of the solar modules is intentionally higher than the inverter's AC output capacity. This approach is known as solar inverter oversizing, DC oversizing, or inverter loading ratio design.
When applied within the inverter manufacturer's limits, oversizing can improve annual energy yield, make better use of inverter capacity, and reduce the cost per kilowatt-hour.

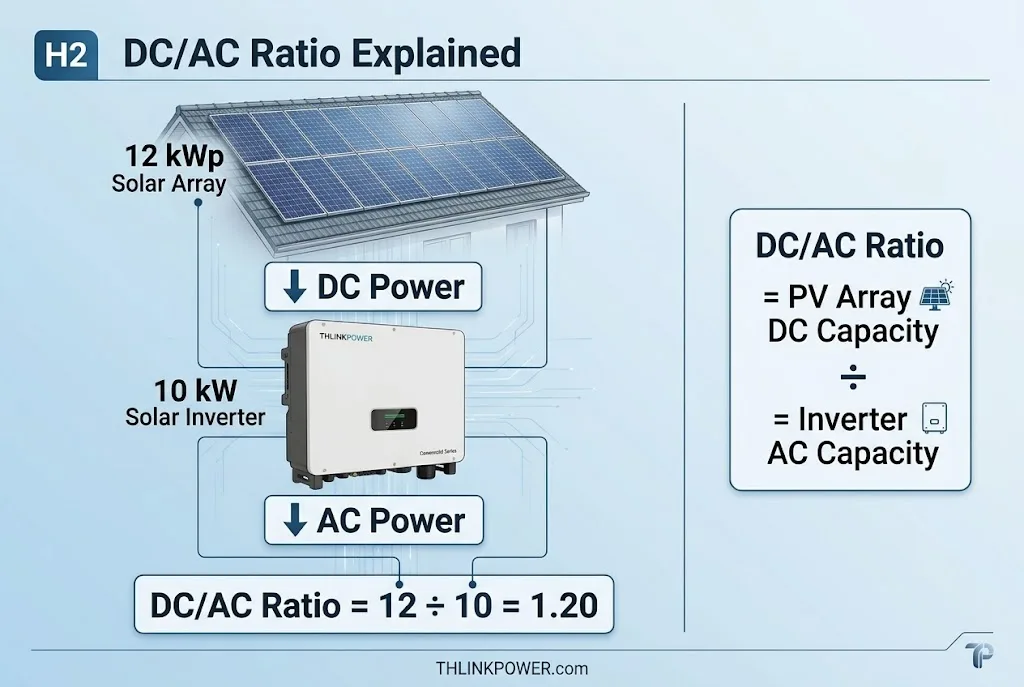

The inverter DC/AC ratio compares the rated DC capacity of the solar array with the rated AC output power of the inverter.
For example, a system with 12 kWp of solar panels connected to a 10 kW inverter has a DC/AC ratio of:
This means the solar array is oversized by 20% relative to the inverter's nominal AC output.
The term inverter oversizing can sometimes create confusion. In practice, it usually means oversizing the PV array on the DC side—not selecting an unnecessarily large inverter. A DC/AC ratio above 1.0 means the module capacity is larger than the inverter's AC rating.
PV modules rarely operate at their Standard Test Condition (STC) rating in real installations. STC assumes cell temperatures of 25°C and irradiance of 1,000 W/m². In the field, module temperature is often much higher, while irradiance varies with weather, season, time of day, shading, dust, tilt angle, and orientation.
As a result, a 10 kWp PV array may produce substantially less than 10 kW for much of the day. If the inverter is sized exactly at 10 kW AC, its capacity may be underused during morning, afternoon, winter, and low-irradiance periods.
A moderate solar inverter oversizing strategy can offer several advantages:
Higher energy production during low-light and shoulder-hour conditions.
Better inverter utilization over the day.
More annual kWh from the same inverter AC capacity.
Lower balance-of-system cost per installed DC watt in some projects.
Improved energy availability for battery charging in hybrid solar systems.
A better match for module performance losses caused by heat, soiling, aging, and non-ideal orientation.
When PV generation exceeds the inverter's maximum output capability, the inverter limits its AC power output. This condition is called inverter clipping.
For instance, if a 10 kW inverter receives enough DC power for 11 kW AC output, it will normally cap production near its rated limit. The extra potential output is not converted to usable AC energy at that moment.
Clipping is not automatically a design failure. A limited amount of clipping may be economically acceptable if the additional modules generate more energy during non-peak hours than is lost at peak production.
However, excessive oversizing can reduce project value because:
More energy is clipped during high-irradiance periods.
Additional modules may deliver diminishing annual-yield benefits.
The inverter may exceed its permitted DC input power.
PV string voltage may exceed the inverter's maximum DC voltage in cold weather.
String current may exceed the permitted input current or MPPT current limit.
Warranty coverage may be affected if the manufacturer's specifications are not followed.
Solar design software and energy-yield modeling should be used to estimate clipping before final equipment selection.
There is no universal maximum DC/AC ratio. The correct limit is always the lower of:
The inverter manufacturer's stated maximum recommended PV input power.
The electrical limits for maximum DC voltage, MPPT voltage range, input current, short-circuit current, and string configuration.
Local grid-interconnection, electrical-code, and utility requirements.
The project's modeled economic optimum.
This is a general reference range, not a universal design rule.
For many grid-tied and hybrid solar projects, a DC/AC ratio of approximately 1.1 to 1.3 is a practical starting range. Ratios closer to 1.2 may provide a balanced result for many systems, while 1.3 or higher requires more detailed evaluation of climate, orientation, system design, and clipping losses.
A 10 kW AC inverter might therefore be paired with:
DC/AC Ratio | Solar Array Capacity | General Design Effect |
1.00 | 10.0 kWp | Minimal clipping, but lower inverter utilization |
1.10 | 11.0 kWp | Conservative oversizing |
1.20 | 12.0 kWp | Common balance of yield and clipping |
1.30 | 13.0 kWp | Higher annual yield potential; verify clipping and limits |
1.40+ | 14.0 kWp or more | Requires detailed manufacturer and production analysis |
High module temperatures reduce PV output. In hot climates, solar modules often operate below STC power during the strongest sunlight hours, which can support a moderately higher DC/AC ratio.
Cool, clear locations may produce stronger peak DC power. In these conditions, a high ratio may lead to more clipping and requires careful voltage calculation because cold modules produce higher open-circuit voltage.
South-facing arrays at an optimized tilt can generate sharp midday peaks. East-west arrays usually spread production more evenly across the day, which may allow a higher DC/AC ratio with less clipping.
Multiple roof orientations can also flatten the production curve. This may improve inverter utilization and increase the value of DC oversizing.

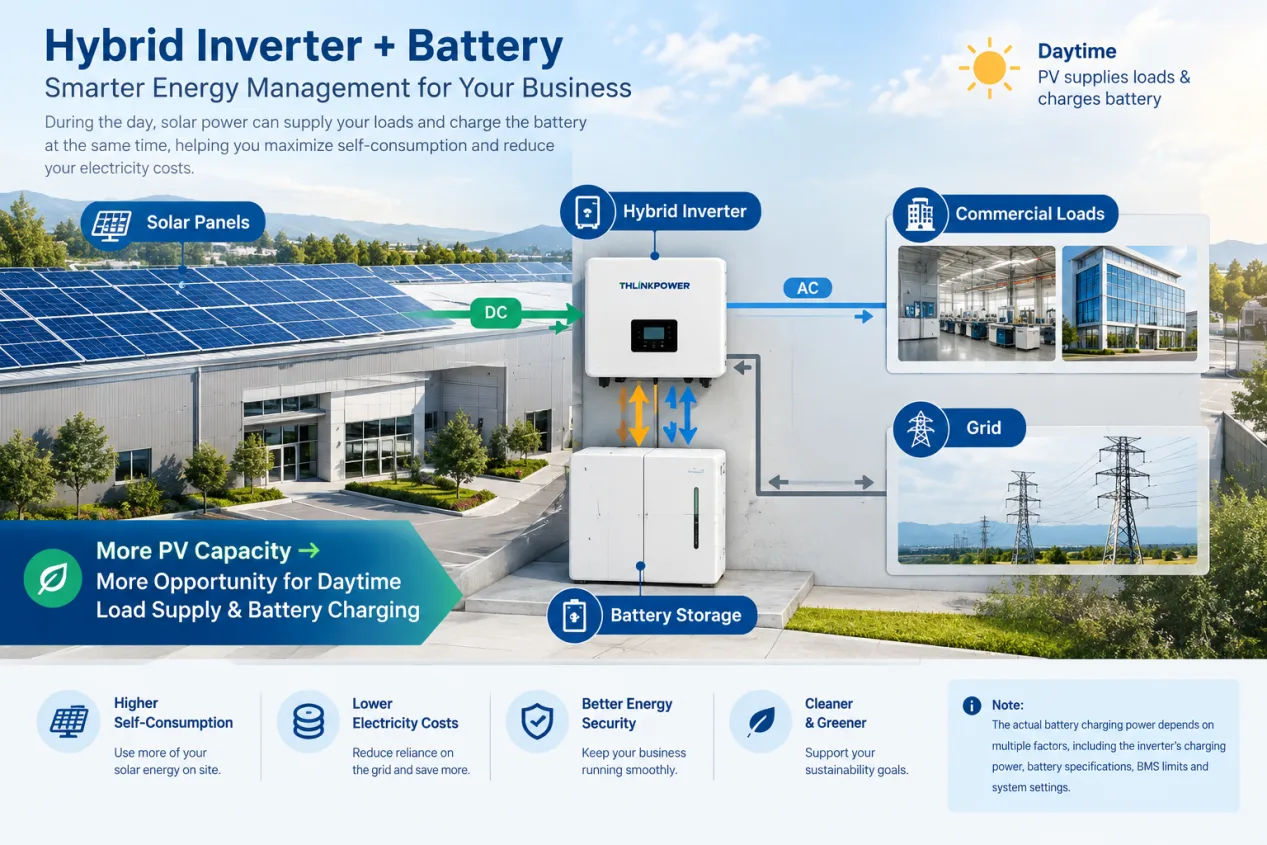

For hybrid solar systems, PV oversizing can help supply daytime loads and charge batteries earlier or more consistently. However, the designer must check whether the inverter has separate limits for PV input, battery charging power, AC output, and backup-load output.
A larger PV array does not necessarily mean the battery can charge at a higher power rate. The system must be designed around the battery's permitted charging current, usable capacity, BMS limits, and energy-management settings.
Some residential and commercial projects have export caps imposed by utilities or local regulations. In those cases, oversizing the PV array may still be valuable because additional DC generation can support self-consumption, battery charging, or daytime loads even when AC export is limited.
Solar modules gradually lose output over time. A sensible DC/AC ratio can help maintain inverter utilization as the array ages. This benefit should be evaluated alongside early-year clipping and the project's expected operating life.
The DC/AC ratio compares the total rated DC capacity of a solar PV array with the inverter's rated AC output capacity. For example, a 12 kWp solar array connected to a 10 kW inverter has a DC/AC ratio of 1.20, meaning the PV array is 20% larger than the inverter's nominal AC capacity.
Yes. Connecting a PV array with a higher DC capacity than the inverter's AC output rating is a common design approach known as DC oversizing or inverter oversizing. However, the PV capacity must remain within the inverter manufacturer's specified maximum PV input power, voltage, current, and MPPT limits.
For many grid-tied and hybrid solar projects, a DC/AC ratio of approximately 1.1 to 1.3 can be used as a general starting range. However, there is no universal ideal ratio. The final ratio should be determined by the inverter specifications, local climate, module orientation, system design, grid requirements, and expected clipping losses.
When the PV array can generate more power than the inverter can convert at its maximum AC output, the inverter limits its AC power output. This is known as inverter clipping. A moderate amount of clipping may be acceptable in some projects, but excessive oversizing can reduce the value of additional PV capacity.
Solar inverter oversizing is a practical way to improve annual solar production, but it should be treated as an engineering decision rather than a fixed percentage rule. Start with the inverter's maximum PV input specification, calculate the inverter DC/AC ratio, and model expected clipping under local conditions.
