Single-Phase vs. Three-Phase Inverters: The Ultimate B2B Guide to Choosing the Right Solar Solution

In the rapidly expanding global solar market, choosing the right infrastructure is critical to the success of any photovoltaic (PV) project. For solar distributors, EPC contractors, and system installers, one of the most fundamental yet pivotal decisions is selecting between a single-phase inverter and a three-phase inverter.

Understanding the technical nuances, application boundaries, and cost efficiencies of these two technologies is essential for optimizing system performance and maximizing your clients' return on investment (ROI).

As a premier global provider of advanced solar solutions, Thlinkpower has compiled this comprehensive guide to help you navigate this choice and deliver the most reliable energy solutions to your market.

1. What is a Single-Phase Inverter?

A single-phase inverter is designed to connect to a standard single-phase electrical grid, which utilizes two wires: a phase (live) wire and a neutral wire.

Key Characteristics:

• Voltage Standards: Typically operates around 220V to 240V (depending on regional grid standards in Europe, South America, and parts of Asia).

• Power Output Limits: Generally capped at lower capacities, usually ranging from 1kW to 8kW or 10kW.

• Ideal Applications: Perfect for standard residential properties, small offices, and light-commercial applications where the overall power demand is relatively low.

2. What is a Three-Phase Inverter?

A three-phase inverter connects to a three-phase electrical grid, which uses four wires: three phase (live) wires and one neutral wire. This configuration allows for a more balanced and continuous delivery of electrical power.

Key Characteristics:

• Voltage Standards: Typically operates at higher voltage levels, such as 380V, 400V, or 415V.

• Power Output Capacity: Designed for high-power demands, easily scaling from 10kW to over 100kW+.

• Ideal Applications: Essential for heavy commercial environments, industrial factories, agricultural setups, and large-scale residential complexes with high-drain appliances (such as central HVAC systems or heavy machinery).

3. Core Differences: Single-Phase vs. Three-Phase Inverters

To help your procurement team make an informed decision, let’s break down the technical and operational differences across four critical dimensions:

A. Power Transmission and Grid Stability

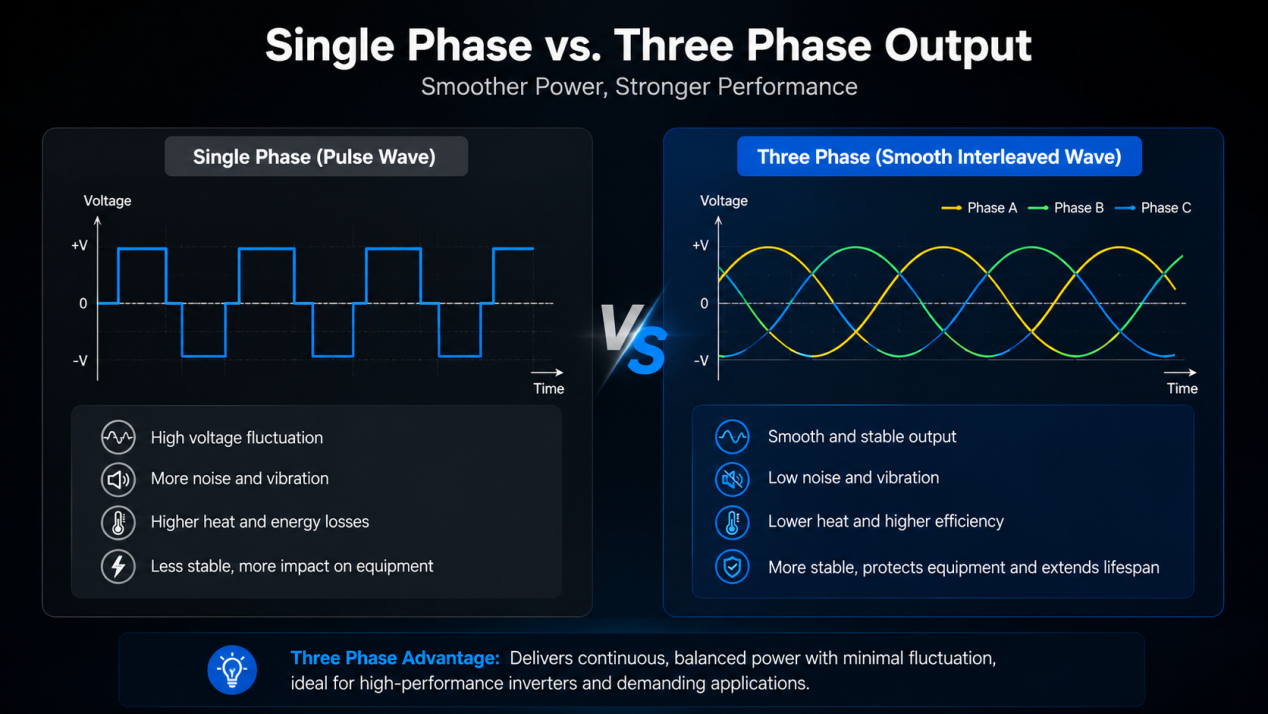

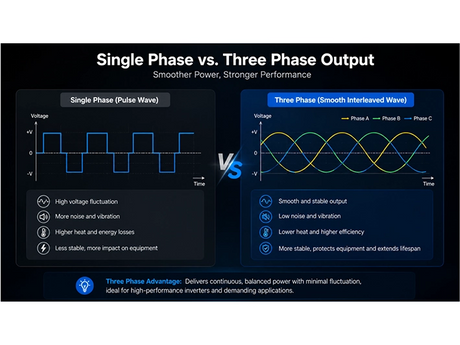

Single-phase power flows in a wave-like, pulsating pattern, meaning the power delivery drops to zero at certain points in the cycle. While this is unnoticeable for standard household electronics, it is inefficient for heavy loads.

In contrast, three-phase power combines three distinct alternating currents that are out of phase with each other. This creates a continuous, smooth, and highly stable power flow. For commercial clients, a three-phase inverter ensures that large electrical loads do not cause voltage drops or grid instability.

B. Efficiency and Equipment Lifespan

Because three-phase systems operate at higher voltages, they require lower current (amperage) to transmit the same amount of power compared to a single-phase system ($Power = Voltage \times Current$).

Lower current translates directly to reduced thermal loss and less stress on internal components. Consequently, three-phase inverters generally offer higher operational efficiency and a longer operational lifespan—a massive selling point for B2B buyers looking for low-maintenance solutions.

C. Cable and Installation Costs

A common misconception is that single-phase systems are always cheaper. While the inverter itself might have a lower upfront cost, transmitting high power over a single phase requires significantly thicker, more expensive copper cables to handle the high current safely.

A three-phase system distributes the current across three wires, allowing for thinner cables and smaller circuit breakers, which can significantly reduce the overall Balance of System (BoS) costs in larger installations.

D. Regional Compliance and Grid Constraints

In many European and Middle Eastern markets, local grid operators impose strict regulations on "phase imbalance." For instance, grid utilities often forbid connecting solar systems larger than 4.6kW or 5kW to a single phase to prevent destabilizing the local grid. In these regions, transitioning to a three-phase inverter is a regulatory necessity for larger residential and commercial projects.

4. Summary Comparison for B2B Buyers

4. Partner with Thlinkpower for Your Next Project

Navigating the complexities of solar energy storage and inversion requires a reliable manufacturing partner. At Thlinkpower, we specialize in designing and manufacturing top-tier solar inverters and advanced energy storage systems engineered for maximum reliability, safety, and regional compliance.

Whether your market demands compact, high-efficiency single-phase inverters for residential upgrades, or robust, high-capacity three-phase hybrid inverters for complex commercial energy storage systems, Thlinkpower has the technical expertise to support your business growth.

Why Global Distributors Trust Thlinkpower:

• OEM/ODM Flexibility: Custom configurations tailored to your local grid codes and brand identity.

• Certified Quality: Products engineered to meet stringent global safety and performance standards.

• Comprehensive Support: Dedicated technical R&D support from system design to after-sales service.

Explore our full product lineup and elevate your solar inventory today.
