What's the Difference between String Inverter vs Hybrid Inverter?

As solar energy adoption continues to grow, choosing the right inverter has become a critical step in designing an efficient and future-ready solar system. When comparing string inverter vs hybrid inverter, many homeowners, installers, and business users want to know which option delivers better value, flexibility, and long-term performance.

In this article, we will explain what is string inverter, introduce the working principles and features of both inverter types, compare hybrid inverter vs string inverter, and help you decide which one is best for your application.

1. What Is a Solar Inverter?

A solar inverter is a device that converts direct current (DC) generated by solar panels into alternating current (AC) for practical use. It is one of the core components in a solar power system because it connects solar generation with household, commercial, or grid electricity demand.

2. String Inverter Introduction

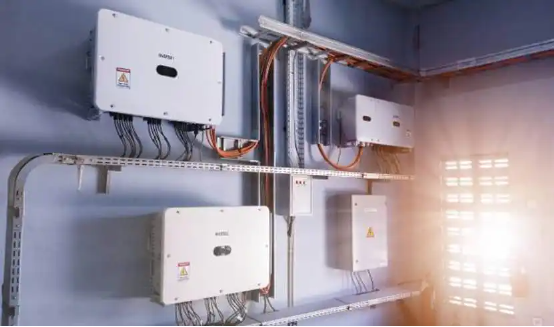

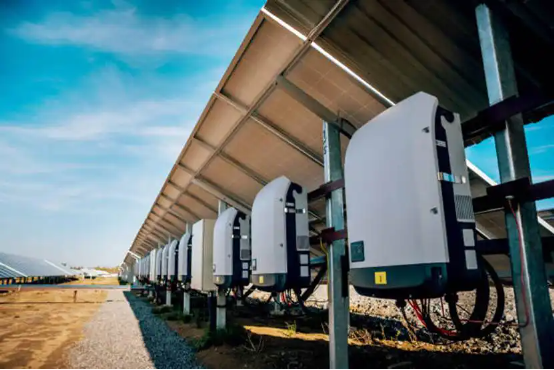

If you are wondering what is string inverter, it is a type of solar inverter that connects multiple solar panels in series and converts their combined DC output into AC electricity. In other words, the string inverter definition refers to a centralized inverter commonly used in standard grid-connected photovoltaic systems.

Working Principle

A string inverter receives DC electricity from one or more panel strings and converts it into usable AC power. The converted power can then be used by electrical loads or exported to the utility grid.

Features

A string inverter has a simple system structure, making it easy to install and maintain. It is also more affordable than a hybrid inverter in terms of upfront cost. Designed mainly for grid-tied solar systems without battery storage, it is widely used in residential, commercial, and industrial PV applications.

3. Hybrid Inverter Introduction

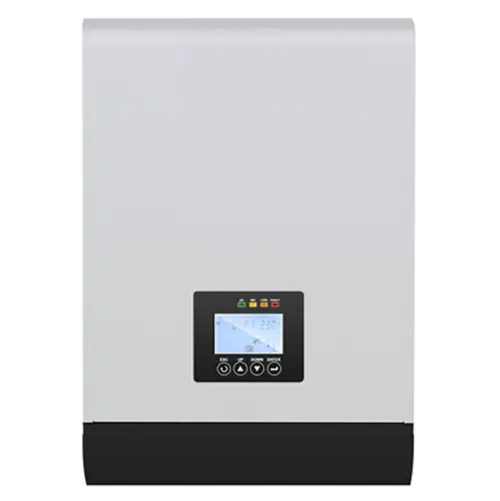

A hybrid inverter is a solar inverter that combines power conversion with battery management functions. It can handle solar generation, battery charging and discharging, and grid interaction within one integrated system.

Working Principle

A hybrid inverter converts solar DC power into AC electricity while also managing battery storage and grid power. It can store excess solar energy in batteries and supply stored energy when solar production is low or when backup power is needed.

Features

A hybrid inverter combines solar generation and battery storage in one system. It can intelligently manage power flow between solar panels, batteries, loads, and the grid. With greater flexibility, it is well suited for backup power and future system expansion. This makes it an ideal choice for users who want stronger energy independence and storage capability.

4. String Inverter vs Hybrid Inverter Differences

Architecture:

• String Inverters: A string inverter typically uses a centralized structure in which multiple photovoltaic strings are connected together for power conversion. This design is commonly applied in conventional grid-connected solar systems.

• Hybrid Inverters: A hybrid inverter is built around integrated management of solar panels, batteries, and the utility grid. Because it handles all three power sources within one system, it offers a more advanced energy architecture.

Function:

• String Inverters: The primary role of a string inverter is to convert DC power from solar panels into AC electricity, mainly for grid-tied use.

• Hybrid Inverters: In addition to standard power conversion, a hybrid inverter can operate in both grid-connected and off-grid modes while supporting energy storage functions.

Energy Storage:

• String Inverters: In most standard applications, string inverters do not include battery charging or discharging capability.

• Hybrid Inverters: Hybrid inverters are designed to work with batteries, allowing stored energy to be charged, managed, and released when required.

Cost:

• String Inverters: From an investment perspective, string inverters are generally the lower-cost option and are often chosen for projects with more basic system requirements.

• Hybrid Inverters: Because they combine solar conversion with storage management, hybrid inverters usually come with a higher upfront cost.

Flexibility:

• String Inverters: Since their role is focused mainly on solar power conversion, string inverters offer a more limited range of functions.

• Hybrid Inverters: With broader capabilities, hybrid inverters can adapt more easily to different power needs and system configurations.

Application Scenarios:

• String Inverters: These inverters are mainly used in grid-connected photovoltaic systems that do not require energy storage.

• Hybrid Inverters: They are better suited to storage-based solar systems and applications where backup power is needed.

 5. How to Choose the Right Inverter

Choosing the right inverter depends on your system goals, budget, and future energy needs. If you are building a standard grid-connected solar system without battery storage, a string inverter is usually the more practical and cost-effective option. It can meet basic solar power conversion needs while keeping the system structure relatively simple.

It is important to consider whether you may expand the system in the future. For users who plan to add batteries later or want stronger energy independence, a hybrid inverter offers more room for long-term development. In contrast, if the main goal is to reduce initial investment and support normal grid-tied operation, a string inverter is often sufficient.

6. Thlinkpower's Hybrid Inverter – Your Best Choice

Thlinkpower’s hybrid inverter is designed for solar systems that require battery storage, flexible energy management, and backup power support. By integrating solar generation, battery charging and discharging, and grid interaction into one system, it helps users improve energy use and build a more flexible power solution.

Why choose Thlinkpower’s hybrid inverter?

• Greater System Flexibility: It is well suited for projects that require both grid-connected operation and backup power capability.

• Better Support for Energy Storage Applications: It helps users make fuller use of solar energy by storing excess power for later use.

• A Smarter Long-Term Investment: For customers planning future energy expansion, a hybrid inverter offers broader functionality and stronger adaptability.

Contact Thlinkpower today to find the right hybrid inverter for your application.
