A single-phase solar inverter is a power electronic device specifically designed to convert direct current (DC) into alternating current (AC). Controlling the conduction and switching off of power switching devices (such as IGBTs or MOSFETs), it transforms DC voltage into single-phase AC voltage with a specific frequency and amplitude. Single phase inverters play a central role in renewable energy systems, uninterruptible power supplies (UPS), and residential power applications, serving as a fundamental component of modern power conversion technology.
The DC input terminals serve as the power source entry point for the inverter, connecting to DC power sources like solar panels or batteries. These terminals feature reverse-polarity protection, ensuring current flows only in the correct direction and providing a safe, reliable DC power access point for the system.
The Maximum Power Point Tracking (MPPT) controller is a critical energy harvesting component. It intelligently adjusts the inverter's operating point to ensure the photovoltaic array consistently outputs maximum power. Modern MPPT controllers achieve efficiencies up to 99%, significantly boosting energy yield.
The inverter bridge serves as the core power conversion unit in single-phase inverters, typically comprising multiple power switching devices. In a full-bridge topology, four power switches are divided into two groups, with diagonal switches conducting alternately to convert DC to AC.
The filter purifies the output waveform, typically comprising inductors (L) and capacitors (C). By eliminating high-frequency harmonics, it smooths the inverter's output waveform, approximating a standard sine wave. The filter's design quality directly impacts the output power's quality and compatibility.
Modern single-phase inverters feature intelligent monitoring systems that display real-time module information, including input, output, and battery status data. These systems support remote monitoring and parameter configuration, offering many alert methods such as email and SMS notifications for anomalies, enabling users to comprehensively understand system operation status.
DC Circuit Breaker: It serves as an isolation device on the DC side, safely disconnecting the DC power supply during maintenance or faults. This isolation protection is crucial for the safe operation of photovoltaic systems.
AC Circuit Breaker: Installed on the AC output side of the inverter, it provides overcurrent and short-circuit protection, ensuring rapid disconnection from the grid or load during abnormal conditions.
IGBT (Insulated Gate Bipolar Transistor) and MOSFET (Metal-Oxide Semiconductor Field-Effect Transistor) are the core switching devices in inverters. IGBTs are suited for high-voltage, high-power applications, while MOSFETs are more appropriate for high-frequency switching scenarios. The performance of these power devices directly determines the inverter's efficiency and reliability.
Single-phase inverters achieve DC-to-AC conversion by precisely controlling the conduction and switching off of power switching devices.
In a half-bridge inverter configuration, two switching transistors (T1 and T2) conduct alternately. When T1 is on, current flows through the path: Vs/2 (upper power supply) → T1 → load, generating a positive half-cycle output. At this point, if the load is inductive, the inductor stores energy. When the switching state changes, the stored energy is released through the feedback diode, maintaining current continuity.
For full-bridge inverters, the four switching transistors are grouped into pairs (Q1, Q4 and Q2, Q3), with diagonally positioned transistors conducting alternately. By controlling the on-off time ratio of the switching transistors via PWM (Pulse Width Modulation) technology, the amplitude and frequency of the output voltage can be adjusted. Connected to the output end, an LC filter eliminates high-frequency harmonics, making the output waveform approach a sine wave.
A square wave inverter produces a simple rectangular wave output with high harmonic content, suitable for basic applications with low waveform quality requirements. This inverter features a simple structure and low cost but may cause noise and efficiency degradation in certain electrical equipment.
A modified sine wave inverter employs multi-stage correction techniques to reduce harmonic distortion, offering an improvement over pure square waves. It performs well with linear power supplies and resistive loads, though issues may persist with certain sensitive equipment.
Pure sine wave inverters deliver smooth output waveforms with minimal harmonic distortion, perfectly matching grid quality. Capable of driving any compatible AC equipment—including sensitive electronics demanding high power quality—they are the ideal choice for modern solar grid-connected systems.
Simple Structure: Single-phase inverters feature relatively straightforward topology with fewer power switching components, reducing manufacturing costs and maintenance complexity.
Low Cost: Fewer components and simplified design provide significant price advantages, making them particularly suitable for budget-constrained projects.
Easy Installation: Typically compact and lightweight, single-phase inverters facilitate installation and transportation.
Versatility: Ideal for low-power applications, particularly in residential and small commercial settings.
Modular Design: Many modern single-phase inverters feature modular construction, enabling rapid fault replacement and minimizing system downtime.
Simplified Grid Connection: The grid integration process is relatively straightforward, often requiring only a standard single-phase meter for plug-and-play connectivity.
Power Constraints: Single-phase inverters have limited power ranges, generally between 1-10kW, making them unsuitable for large commercial or industrial applications.
Lower Efficiency: Compared to three-phase inverters, single-phase inverters exhibit lower efficiency at equivalent power ratings.
Load Imbalance Issues: In single-phase systems, load fluctuations more readily impact system stability, causing voltage variations and performance degradation.
Application Limitations: Single-phase inverters are suited for residential and small commercial applications, with limited applicability in large industrial settings.
Neutral Line Current Concerns: Using a single-phase inverter with an unbalanced three-phase system can lead to excessive neutral line current, compromising system safety.
Single-phase inverters feature simple construction and lower costs, primarily suited for residential and low-power scenarios. They output single-phase AC voltage, typically used in low-power applications.
Three-phase inverters deliver higher output power and efficiency, making them more suitable for commercial, industrial, and high-power applications. Three-phase systems provide smoother power output, better supporting large motor loads and industrial equipment.
Power Requirements: Determine inverter capacity based on load needs with adequate margin. Thlinkpower offers models ranging from 3kW to 10kW to meet diverse demands.
Efficiency Metrics: Focus on European efficiency and maximum efficiency ratings, as these directly impact energy yield. High-quality inverters should achieve European efficiency exceeding 97%.
MPPT Performance: For PV applications, MPPT efficiency and flexibility are critical. Check the MPPT voltage range (e.g., 50V-550V) and maximum input current per string (e.g., 20A).
Protection Features: Ensure the inverter includes essential protections like DC reverse connection protection, islanding protection, and ground fault detection.
Monitoring Capabilities: Select inverters supporting remote monitoring (e.g., WiFi, 4G) for real-time system status tracking and timely troubleshooting.
Protection Rating: For outdoor installations, a minimum IP65 rating is required to withstand harsh weather conditions.

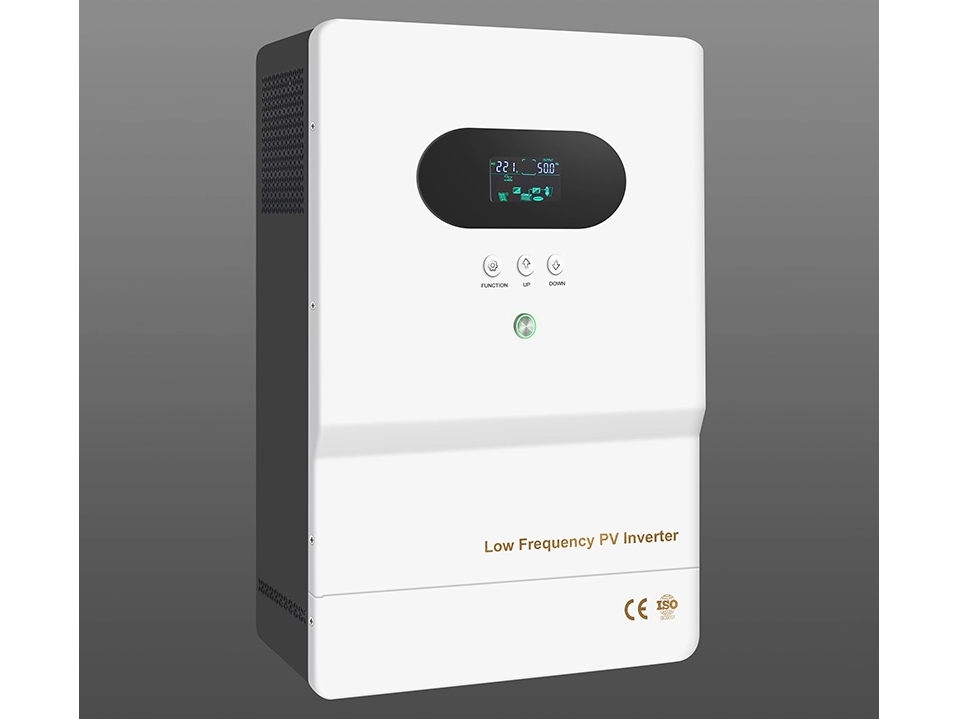

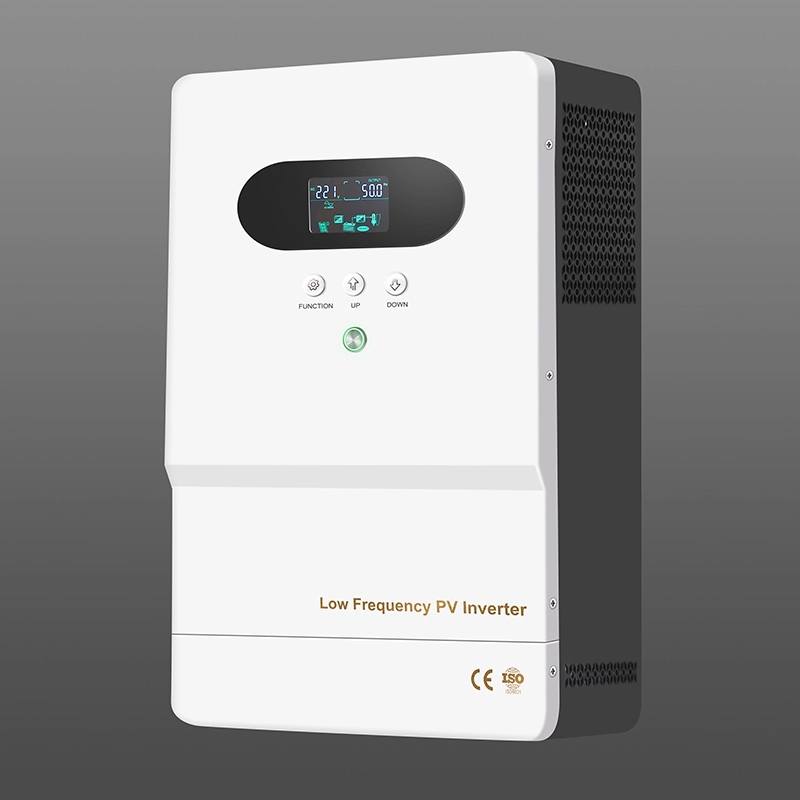

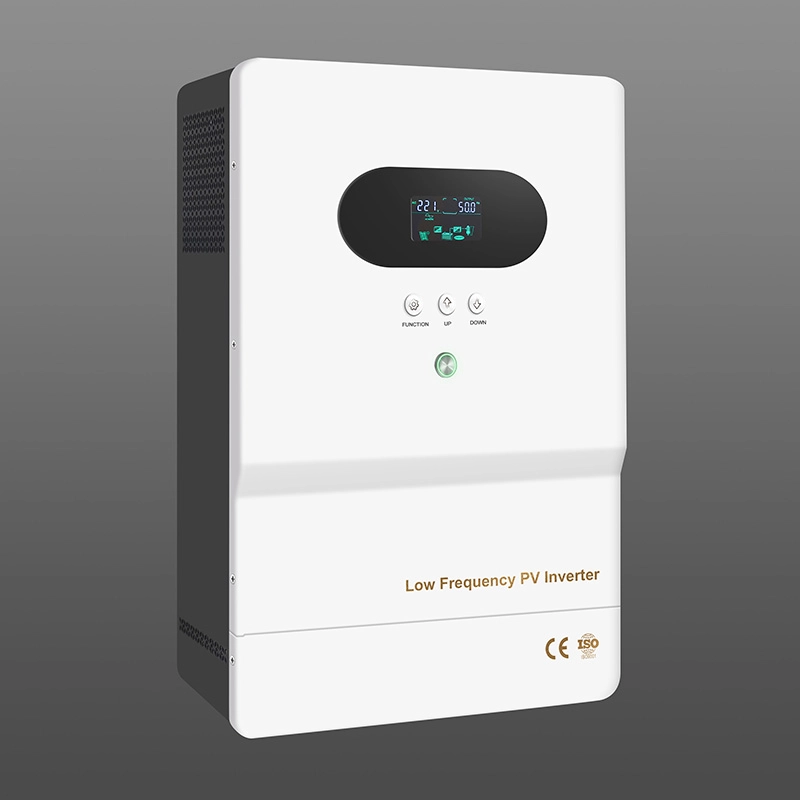

The Thlinkpower LF Series is a high-performance hybrid inverter designed for residential and commercial solar systems. It integrates solar inverter, battery charger, and AC power switching functions into one unit for seamless energy management.
Key Features:
Pure sine wave output ensures compatibility with diverse loads
Intelligent battery management supports multiple battery types
Seamless switching technology automatically switches to battery power during grid outages
Intelligent load management prioritizes solar power usage

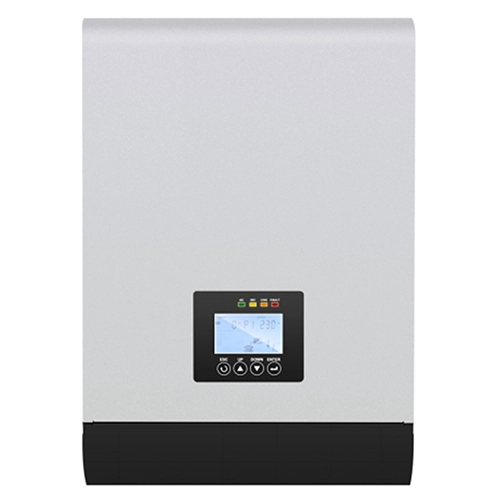

The Thlinkpower HP Series supports multi-unit parallel operation to meet higher power demands. By paralleling multiple inverters, users can achieve power scaling to create flexible, expandable energy solutions.
Key Features:
Parallel capability supporting up to 9 units
MPPT design for enhanced energy harvesting efficiency
Smart grid interaction supporting both grid-tied and off-grid operation
Advanced monitoring system with real-time system status via app
As critical devices for DC-to-AC conversion, single-phase inverters play an irreplaceable role in residential renewable energy systems and off-grid applications. By understanding their operating principles, component structure, output waveform characteristics, and advantages/limitations, users can select suitable single-phase inverter products based on specific requirements.
Thlinkpower's single-phase inverter series delivers comprehensive power solutions through advanced technology, reliable performance, and user-friendly design.
Contact Thlinkpower for high-quality products tailored to your needs—whether for basic solar conversion or complex hybrid energy management.
