Product Description

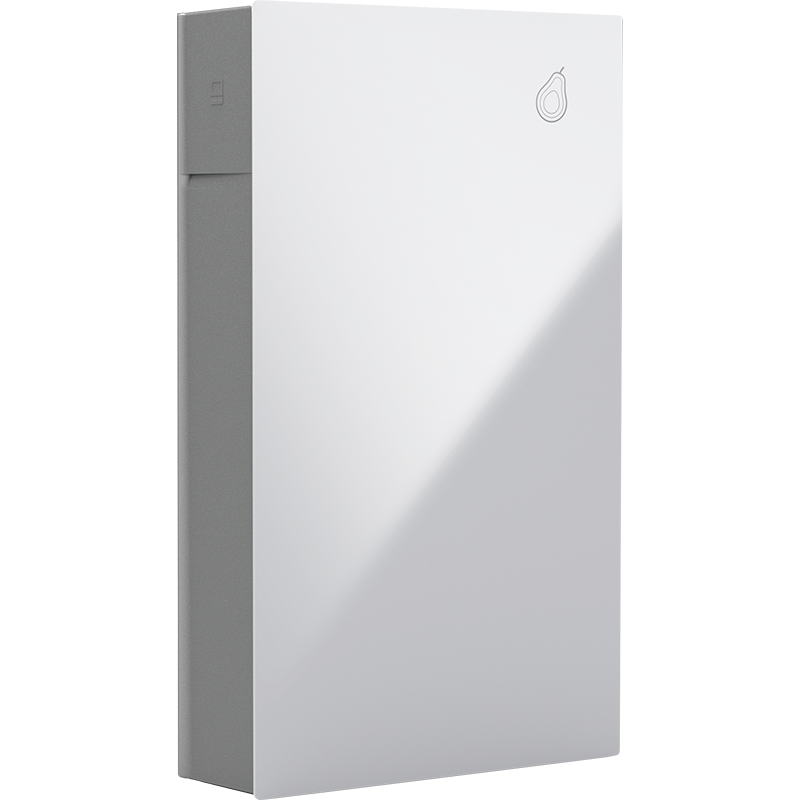

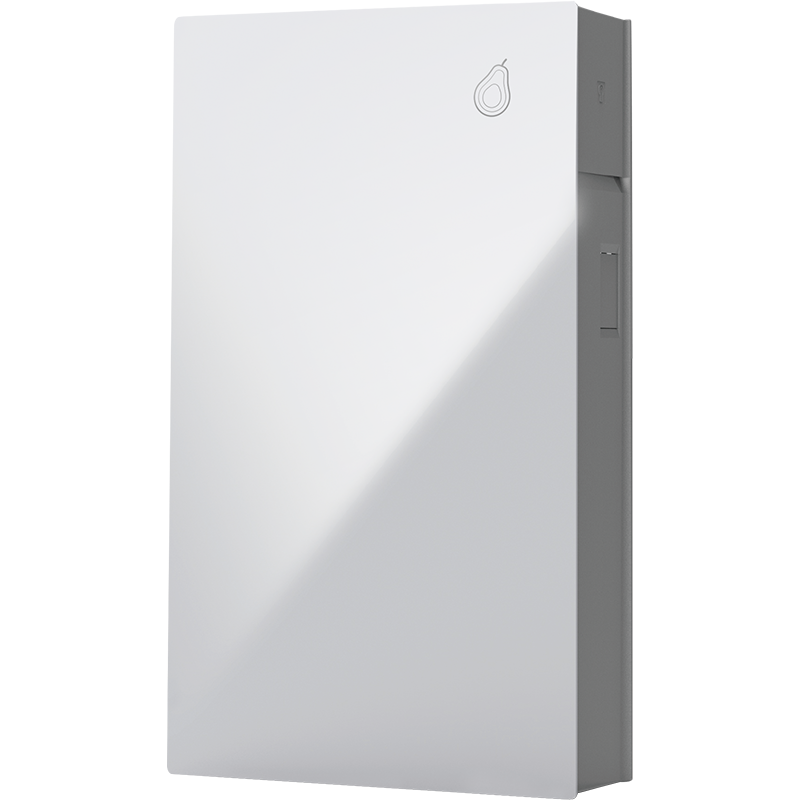

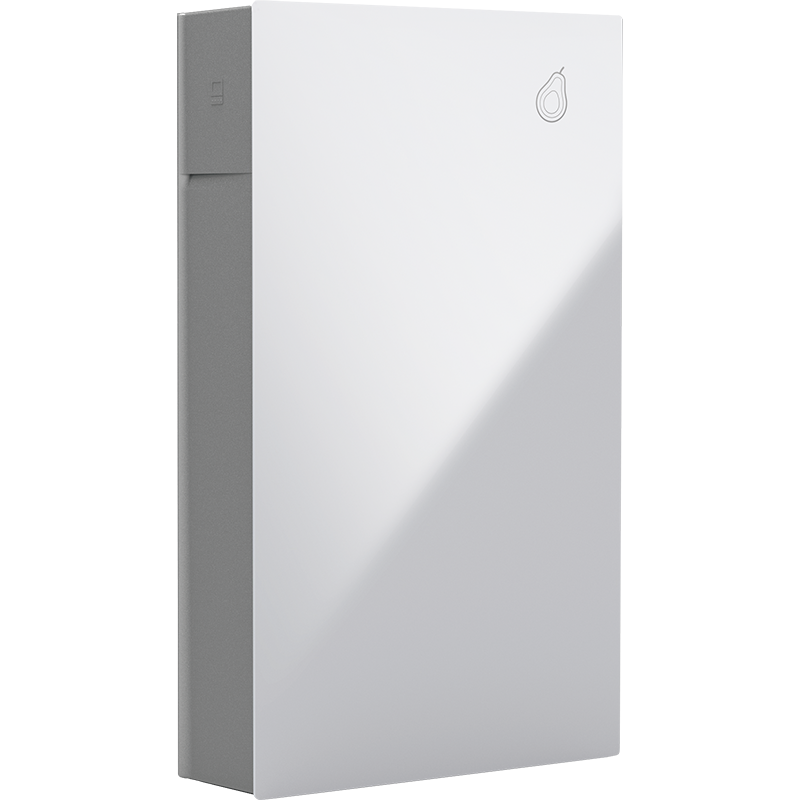

The All-in-One 10kWh Lithium Battery Energy Storage System combines inverter and battery in one compact IP65 unit. Designed for single-phase 5–10kW applications, it offers high power density, flexible MPPT configuration, and simplified installation — delivering efficient, space-saving energy storage for residential and light commercial users.
1. Integrated High-Efficiency Design
Combines inverter and lithium battery in a single housing for a plug-and-play installation, ensuring seamless operation and simplified system management.
2. Durable & Smart Power Management
Features IP65 protection, 5-6kw: 2 MPPT, 8-10kw: 3 MPPT, maximum string current 20A, efficient performance in diverse climates and conditions.
3. Installation-Friendly & Cost-Effective
Lightweight structure and vehicle-assisted installation options reduce labor and setup costs, improving installation efficiency for installers and project developers.
| Model | P100-5-H | P100-6-H | P100-7-H | P100-8-H | P100-9-H | P100-10-H | |
| PV INPUT(ONLY FOR HYBRID) | |||||||
| Max. PV array power[W] | 16000 | 16000 | 20000 | 20000 | 20000 | 20000 | |
| Max. Input Power [W] | 15000 | 16000 | 17000 | 18000 | 19000 | 20000 | |
| Max. MPPT Input Power [W] | 8000/8000 | 8000/8000 | 8000/8000/8000 | 8000/8000/8000 | 8000/8000/8000 | 8000/8000/8000 | |
| Max. Input Voltage [V] | 600 | ||||||
| Start-up Input Voltage [V] | 75 | ||||||
| Rated Input Voltage [V] | 360 | ||||||
| MPPT Operating Voltage Range[V] | 80 ~ 550 | ||||||
| Max. Input Current [A] | 20/20 | 20/20 | 20/20/20 | 20/20/20 | 20/20/20 | 20/20/20 | |
| Max. Short-circuit Current [A] | 25/25 | 25/25 | 25/25/25 | 25/25/25 | 25/25/25 | 25/25/25 | |
| No. of Independent MPP Trackers | 2 | 2 | 3 | 3 | 3 | 3 | |
| No. of Strings per MPP Tracker | 1 | ||||||
| BATTERY CONNECTION | |||||||
| Battery Type | LFP (LiFePO₄) | ||||||
| Battery Energy [kWh] | 10.24 | ||||||
| Depth of Discharge [%] | 95 | ||||||
| Cycle Life | 6000 | ||||||
| AC INPUT AND OUTPUT (GRID) | |||||||
| Output | Rated Power [W] | 5000 | 6000 | 7000 8000 | 8000 | 9000 | 10000 |
| Rated Apparent Power [VA] | 5000 | 6000 | 7000 8000 | 8000 | 9000 | 10000 | |
| Max. Apparent Power [VA] | 5500 | 6600 | 7700 8800 | 8800 | 9900 | 11000 | |
| Rated Output Current (Per Phase) [A] | 22.7 | 27.3 | 31.8 36.4 | 36.4 | 40.9 | 45.5 | |
| Max. AC Current (Per Phase) [A] | 25 | 30 | 35.0 40.0 | 40.0 | 45 | 50 | |
| THDI | <3%@rated power | ||||||
| Input | Max. Apparent Power [VA] | 6000 | 7200 | 8400 | 10800 | 12000 | |
| Max. Input Current [A] (Per Phase) | 27.3 | 32.7 | 38.2 | 49.1 | 54.5 | ||
| Output & Input | Nominal Voltage [V] | 220/230/240, L/N/PE | |||||
| Nominal Frequency [Hz] | 50/60, ±5 | ||||||
| Power Factor | 1(Adjustable) | ||||||
| Inrush Current [A] | 15A@0.5ms | ||||||
| EPS OUTPUT | |||||||
| Max. Apparent Power [VA] | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 | |
| Peak Apparent Power [VA] | 6000W@60s | 7200W@60s | 8400W@60s | 9600W@60s | 10800W@60s | 12000W@60s | |
| 7500W@30s | 9000W@30s | 10500W@30s | 12000W@30s | 13500W@30s | 15000W@30s | ||
| 10000W@10s | 12000W@10s | 14000W@10s | 16000W@10s | 18000W@10s | 20000W@10s | ||
| Nominal Voltage [V] | 220/230/240 | ||||||
| Nominal Frequency [Hz] | 50/60 | ||||||
| Max. Output Current (Per Phase) [A] | 22.7@230V | 27.3@230V | 31.8@230V | 36.4@230V | 40.9@230V | 45.5@230V | |
| Power Factor | 1(Adjustable) | ||||||
| Switch Time [ms] | <4 | ||||||
| THDV [%] | <3@Linear Load | ||||||
| Parallel Operation | Yes @max 3PCS | ||||||
| EFFICIENCY | |||||||
| Max. Conversion Efficiency [%] | 97.6 | ||||||
| European Efficiency [%] | 97.2 | ||||||
| Max. Ba廿ery Charge Efficiency (PV To BAT) (@full Load) [%] | 97.3 | ||||||
| Max. Ba廿ery Charge/discharge Efficiency (BAT To AC)(@full Load)[%] | 96.4 | ||||||
| PROTECTION | |||||||
| Insulation Monitoring | YES | ||||||
| Residual Current Monitoring | YES | ||||||
| DC Reverse Polarity Protection | YES | ||||||
| Anti-islanding Protec | YES | ||||||
| AC Short-circuit Protection | YES | ||||||
| AC Overcurrent/Overvoltage Protection | YES | ||||||
| DC Switch | YES | ||||||
| Over Voltage Category | DC: Type II /AC: Type II | ||||||
| AFCI Protection | YES | ||||||
| GENERAL DATA | |||||||
| Demensions (W*H*D) [mm] | 584*1009*197 | ||||||
| Weight [kg] | 113 | ||||||
| Installation | Floor-mounted/Wall-mounted | ||||||
| Cooling Method | Intelligent air cooling | ||||||
| Noise Emission [db] | <45dB Average | ||||||
| Max. Operating Altitude[m] | <4000@Derating exceeding 2000m | ||||||
| Operating Temperature Range [°C] | -20 ~ 55 | ||||||
| Humidity (No Condensation) [%] | 0 ~ 100 | ||||||
| Protection Degree | IP66 | ||||||
| Standby Consumption [W] | < 20 | ||||||
| Monitoring Module | WiFi, LAN, 4G | ||||||
| Communication Interface | Ethernet, EMS(RS 485), Meter, WiLAN(WiFi+LAN+Bluetooth), 4G(Optional), DRM, Ripple Control, USB, BMS(CAN), SG Ready | ||||||
| Display | LED/LCD/APP/website | ||||||
| Support dual EPS expansion | YES | ||||||
| STANDARD COMPLIANCE (MORE AVAILABLE UPON REQUEST) | |||||||
| Safety | EN/IEC 62109-1, EN/IEC 62109-2, EN/IEC62477-1,EN/IEC 62040(AU) | ||||||
| EMC | EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-2:2019, EN IEC 61000-6-4:2019, IEC 62920:2017 | ||||||
| RED | EN 50665:2017, ENIEC 62311:2020, EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09), EN 300 328 V2.2.2(2019-07), | ||||||
| EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020 | |||||||
| Grid Regulation | G98, CEI 0-21, AS/NZS 4777.2:2020, NRS 097-2-1, IEC 61727, EN 50549-1, P140/P515 | ||||||
| Battery Regulation | IEC62619:2022 | ||||||
| Transportation | UN 38.3 | ||||||
| Environment | ROHS, REACH, WEEE | ||||||
