Product Description

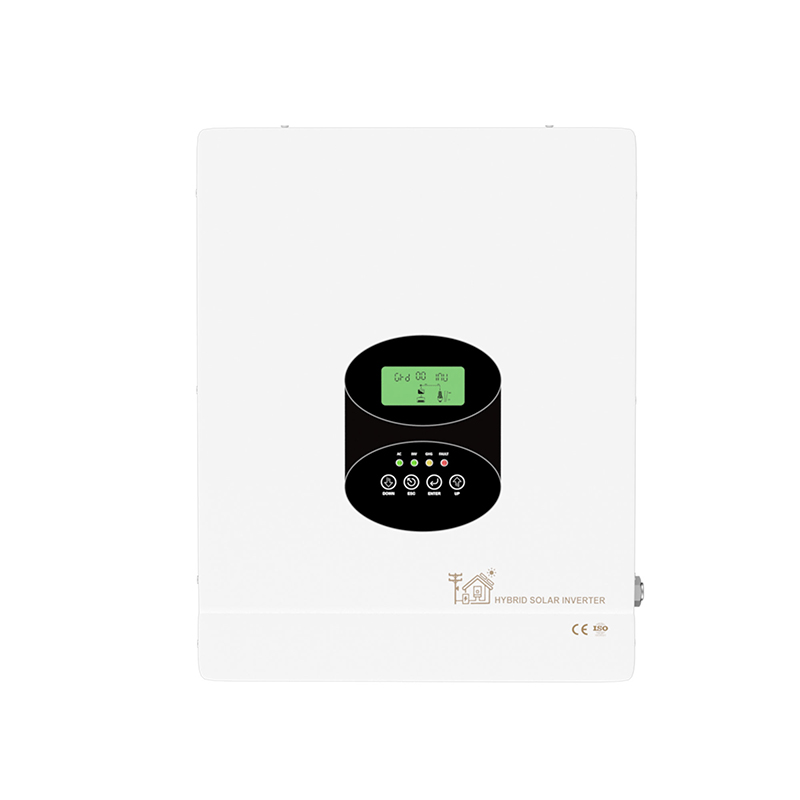

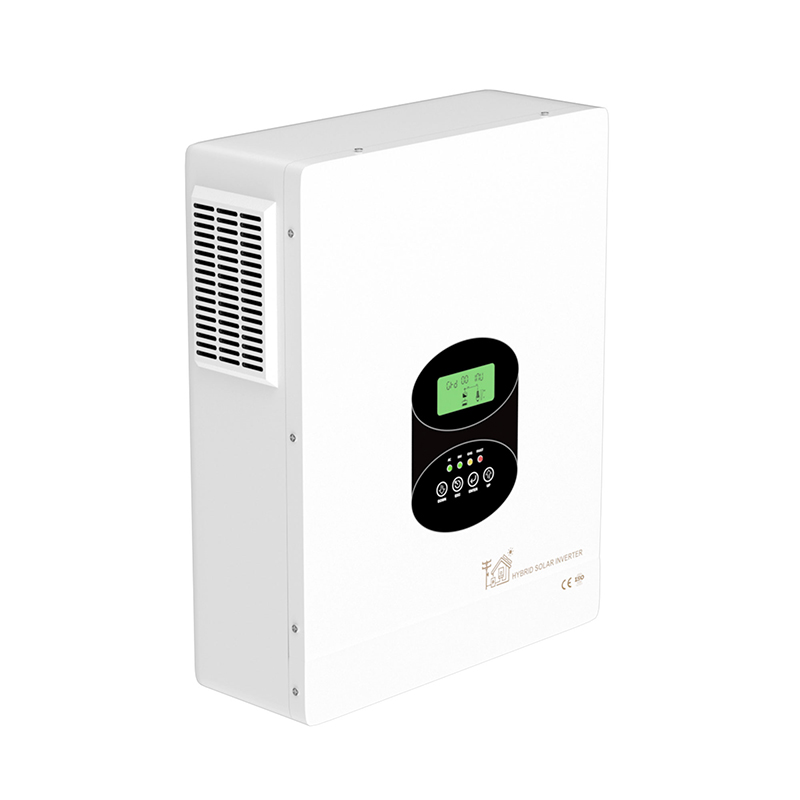

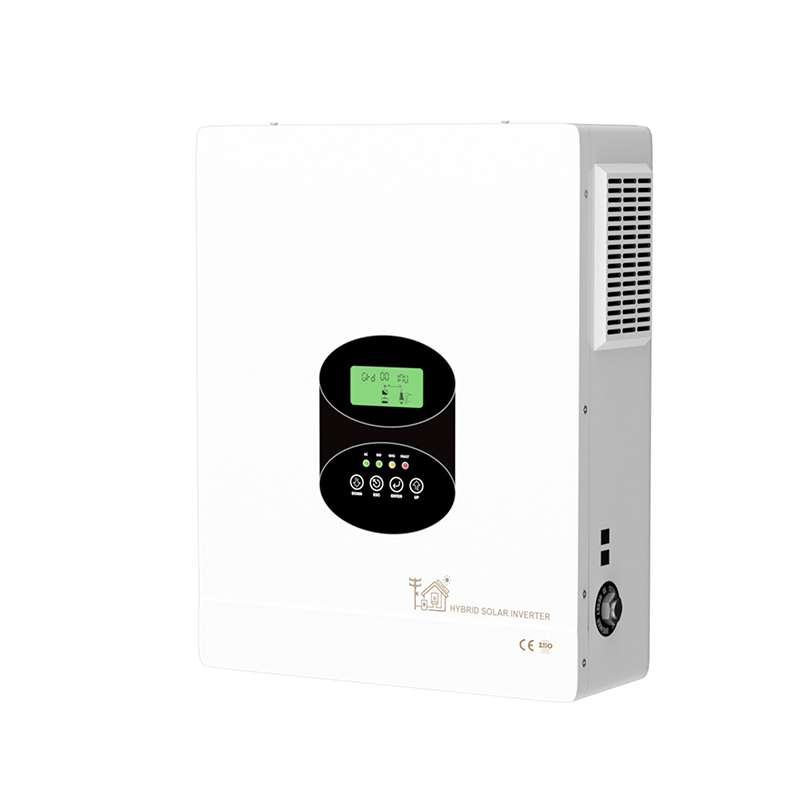

The HFP-S Single-Phase Dual Output Hybrid Inverter is designed for smart, flexible, and efficient solar energy management in residential and small commercial systems. With dual output load management, users can prioritize essential appliances while optimizing energy distribution. Its high-frequency, compact design ensures high power density and overall efficiency, while the bidirectional energy storage system allows both PV and grid power to charge the battery. Featuring an ultra-wide MPPT voltage range, advanced BMS communication, and multiple working modes (on-grid, off-grid, hybrid), this inverter provides maximum adaptability and reliability, even supporting battery-less operation for cost-effective solutions.
Bidirectional Energy Storage & Smart Modes
Supports charging from both solar and grid with configurable modes: grid-tied, off-grid, or hybrid, ensuring reliable power supply.
Ultra-Wide MPPT & High Efficiency
Offers MPPT tracking efficiency ≥99.9% and wide PV input range (40–450V/80–450V), maximizing solar energy harvest.
Advanced Battery & Load Management
Compatible with lead-acid and lithium batteries, featuring BMS communication, charging priority settings, and battery-less operation mode.
| Model HFP-S | 33224 | 43224 | 63248 | 83248 | 103248 | 123248 |
| PV Input | ||||||
| Max PV Input Power | 5000w | 7000 | 4500W*2 | 6000W*2 | 6000W*2 | |
| MPPT Tracking Voltage Range | 40Vdc-450Vdc | 80Vdc~450Vdc | ||||
| Rated Voltage | 360Vdc | |||||
| Max PV Input Voltage | 500Vdc | |||||
| (atthe lowest temperature) | ||||||
| Max PV Input Curent | 18A 27A | 18A2 22A*2 27A*2 | ||||
| MPPT Tracking Channels(Input Routed | 1 Routed | 2 Routed | ||||
| Battery &Charging | ||||||
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Custom Battery (Charging and discharging paramcters ofdfiferent types of batteriescan be set through the operation board) | ||||||
| Rated Battery Voltage | 24Vdc | 48Vdc | ||||
| Battery voltage Range | 21~30Vdc(default | 42-60Vdc (default) | ||||
| Max PV Charging Current | 120A | 150A | 120A | 150A | 180A | 200A |
| MaxAC Charging Curent | 80A | 100A | 80A | 100A | 120A | 140A |
| Max Charging Current | 120A | 150A | 120A | 150A | 180A | 200A |
| On-Grid Operation (AC Output) | ||||||
| Rated Output Power | 330W 430W | 6300W | 8300W | 10.3KW 12.3KW | ||
| Rated Output Voltage | 220Vac/230Vac/240Vac | |||||
| Grd Volage Range | 187Vac~264Vac | |||||
| Rated Output Frequency | 50Hz/60Hz | |||||
| Frequency Range | 47Hz~52Hz(50Hz),57Hz~62Hz(60Hz) | |||||
| Rated Output Current | 14.5A13.9A13.3A 19.5A18.7A17.9A 28.6A(27.4A/26.2A 37.7A36.1A34.6A 46.7A144.9A42.9A 55.9A/53.5A/51.3A | |||||
| Power Factor | >0.98(Rated Power) | |||||
| O0f-Grid Operation (AC Input) | ||||||
| Rated Input voltage | 220V/230V/240V | |||||
| Mains input voltage range | 165Vac~280Vac/120Vac~280Vac(Can be set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz) | |||||
| Of-Grid Operation (AC Output) | ||||||
| Rated Output Power | 330W 430W 6300W 8300w 10.3KW 12.3KW | |||||
| Rated Output Voltage | 220V/230V/240V | |||||
| Output Voltage Accuracy | ±2% | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Output Frequency Acuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Hybrid Operation (AC Input) | ||||||
| Rated Input voltage | 220V/230V/240V | |||||
| Mains input voltage range | 187Vac~264Vac | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 47Hz~52Hz(50Hz),57Hz-62Hz(60Hz) | |||||
| Hybrid Operation (AC Output) | ||||||
| Rated Output Power | 330W 430W 6300w 8300w 10.3KW 12.3KW | |||||
| Rated Voltage Rated | 220Vac/230Vac/240Vac | |||||
| Output Curent | 14.5A13.9A13.3A 19.5A/18.7A/17.9A 28.6A/27.4A/26.2A 37.7A36.1A34.6A 46.7A144.9A42.9A 55.9A53.5A51.3A | |||||
| Regular Parameters | ||||||
| Maximum Conversion Eficiency (Battery Discharge) | 94%(peak value) | |||||
| MPPT Tracking Eficiency | ≥99.9 | |||||
| Transfer Time | 10ms(Typical value) | |||||
| Display | LCD+LED | |||||

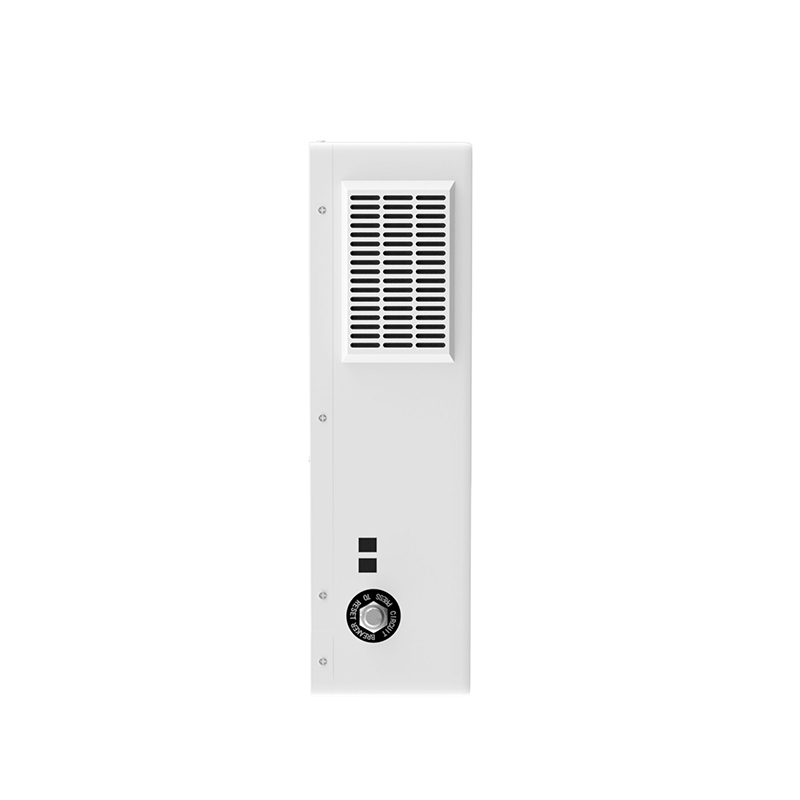

| Cooling Method | Cooling fan in intligent control | |||||
| Communication | RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional) | |||||
| Protection Degree | IP20 | |||||

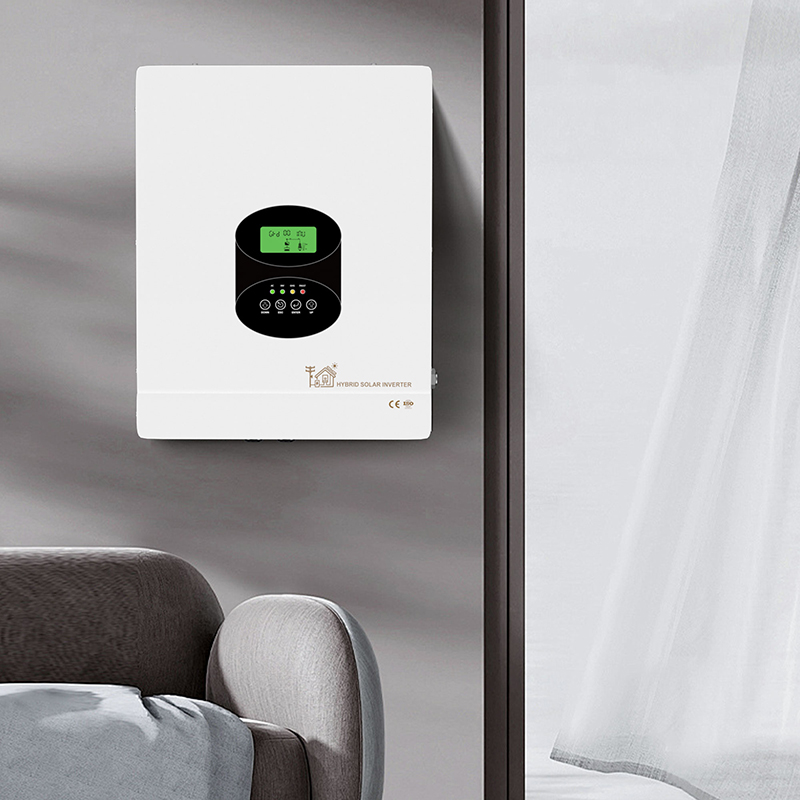

| Instalation | Wall-Mounted | |||||
| Protect | ||||||
| Battery low voltage alarm | 22Vdc(default value) | 44Vdc(default value) | ||||
| Battery low voltage protection | 21Vdc(default value) | 42Vdc(default value) | ||||
| Anti-islanding protection二 | ≤2S | |||||
| Overload power protection | Automatic Protection (battery mode),Circuit Breaker or Insurance(AC mode) | |||||
| Output short cicuit protection | Automatic Protection (battery mode),Circuit Breaker or Insurance(AC mode) | |||||
| Temperature protection | >90°℃(turn ofinverter and charging) | |||||
| Environment | ||||||
| Operating temperature | -10C~50℃ | |||||
| Storage temperature二 | -15C~60℃ | |||||
| Nois | ≤55dB | |||||
| Elevation | 2000m(More than derating) | |||||
| Humidity | 0%~95%,No condensation | |||||
