Key Differences between Single Phase Inverter vs Three Phase Inverter

As solar energy systems, backup power solutions, and energy storage systems continue to expand across residential, commercial, and industrial sectors, solar inverter selection has become a critical design decision. Among all inverter classifications, the comparison between single phase inverter vs three phase inverter is one of the most frequently discussed topics for system integrators, EPC contractors, and end users.

This article provides a comprehensive technical comparison between single phase and three phase inverters, explains how a 3 phase inverter works, discusses inverter single phase to three phase conversion, and introduces reliable inverter solutions from Thlinkpower for different application scenarios.

1. What Is a Single Phase Inverter?

1) Definition of a Single Phase Inverter

A single phase inverter is a power electronic device that converts DC power — typically from solar panels, batteries, or energy storage systems — into single phase AC power. Single phase AC power uses one alternating voltage waveform and is commonly supplied at 110V, 120V, 220V, or 230V, depending on regional grid standards.

Single phase inverters are widely used in residential power systems and light commercial applications where power demand is relatively low and loads are not highly inductive.

2) How a Single Phase Inverter Works

The working principle of a single phase inverter involves several key stages:

• DC Input Stage: The inverter receives DC electricity from photovoltaic modules, battery banks, or DC power sources.

• DC-AC Conversion: Power semiconductor devices such as IGBTs or MOSFETs switch the DC input at high frequency to create an AC waveform.

• Filtering and Voltage Regulation: Output filters smooth the waveform to produce a stable sinusoidal AC output suitable for household appliances.

• Single Phase Output: The inverter delivers AC power through one live conductor and one neutral conductor.

Because there is only one alternating waveform, power delivery fluctuates within each cycle, which limits load capacity and output stability at higher power levels.

2. What Is a Three Phase Inverter?

1) Definition of a Three Phase Inverter

A three phase inverter converts DC power into three phase AC power, which consists of three alternating voltages with a 120-degree phase difference. This configuration provides continuous and balanced power delivery, making it ideal for high-power and industrial applications.

Three phase inverters are commonly deployed in commercial photovoltaic systems, industrial machinery, large motors, data centers, and centralized HVAC systems.

2) How a 3 Phase Inverter Works

Understanding how a 3 phase inverter works is essential when designing medium- and large-scale power systems.

• DC Power Input: Similar to single phase inverters, DC power is sourced from solar arrays, batteries, or hybrid energy storage systems.

• Three-Leg Inverter Topology: A three phase inverter uses three inverter bridges, each generating one phase of AC output.

• Phase Shift Generation: The inverter control system creates three AC waveforms with a precise 120-degree phase separation.

• Balanced Power Output: When connected to balanced loads, current flow is evenly distributed across all three phases.

• Reduced Neutral Current: In a balanced three phase system, neutral current is approximately zero, significantly reducing line losses.

This structure results in smoother power output, higher efficiency, and superior performance under heavy and inductive loads.

3. Single Phase Inverter vs Three Phase Inverter

1) Single Phase Inverter: Advantages and Limitations

Advantages of Single Phase Inverters

• Simple Structure: Fewer power components and simpler control logic.

• Lower Cost: Reduced manufacturing and installation costs.

• Easy Installation: Suitable for residential electrical infrastructure.

• Compact Size: Ideal for homes, small offices, and portable systems.

Limitations of Single Phase Inverters

• Limited Power Capacity: Mainstream single phase inverter peak power is typically ≤10 kW.

• Lower Power Quality: Voltage fluctuations increase with higher loads.

• Lower Efficiency at High Load: Not suitable for continuous heavy-duty operation.

• Neutral Line Requirement: Single phase systems require a neutral conductor of the same cross-section as the live wire due to significant neutral current.

2) Three Phase Inverter: Advantages and Limitations

Advantages of Three Phase Inverters

• Stable and Continuous Output: Power delivery is smoother and more consistent.

• Higher Efficiency: Lower current per conductor reduces thermal losses.

• Supports Large Loads: Suitable for motors, compressors, and inductive equipment.

• Reduced Line Loss: Neutral current approaches zero under balanced conditions.

• Wide Power Range: Three phase inverter peak power typically ranges from 5 kW to 250 kW.

Limitations of Three Phase Inverters

• Higher Initial Cost: More complex internal structure and control system.

• Complex Installation: Requires three phase grid access and professional installation.

• Larger Footprint: Generally larger and heavier than single phase units.

3) Summary Comparison Table

4. Inverter Single Phase to Three Phase Conversion

1) Why Convert Single Phase to Three Phase?

In many regions, grid infrastructure only provides single phase electricity, while industrial equipment requires three phase power. This creates a strong demand for inverter single phase to three phase solutions.

Common scenarios include:

• Running three phase motors in residential or rural locations

• Upgrading equipment without modifying grid infrastructure

• Powering industrial machines from single phase utility lines

2) How Single Phase to Three Phase Inverters Work

A single phase to three phase inverter operates as follows:

• Single Phase AC Input: The inverter accepts single phase AC from the grid or generator.

• Rectification: AC input is converted into DC power internally.

• Three Phase Inversion: The DC power is then converted into three phase AC output with precise phase control.

• Frequency and Voltage Control: Output parameters are adjustable to match motor or equipment requirements.

This solution eliminates the need for costly grid upgrades while enabling three phase equipment operation.

5. Thlinkpower Inverter Solutions

As a professional manufacturer of solar and energy storage inverters, Thlinkpower provides reliable solutions for both single phase and three phase applications.

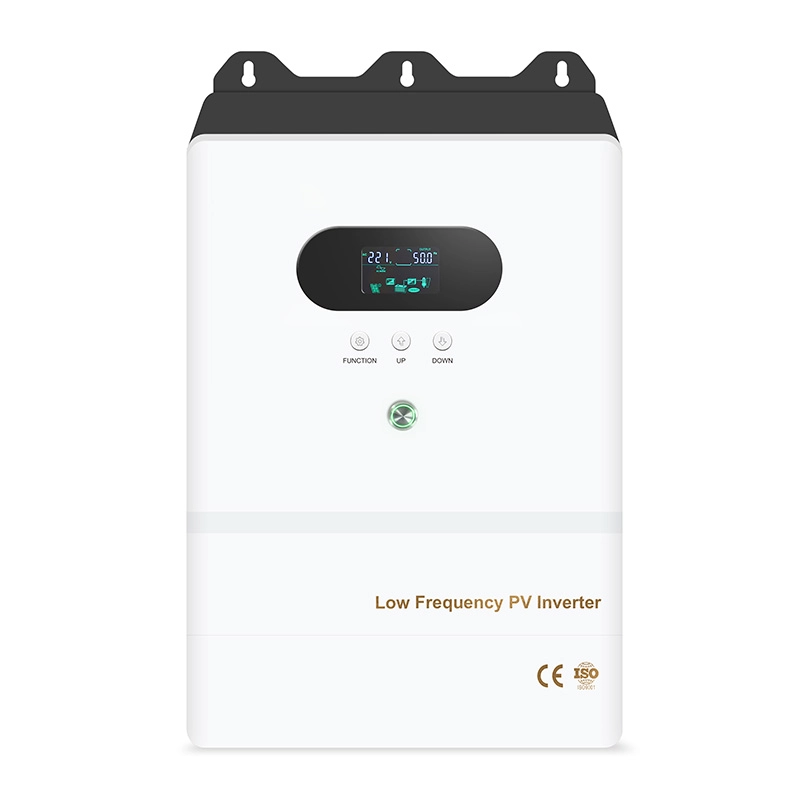

1) Thlinkpower LF Single-Phase Hybrid Low Frequency Solar Inverter

Key Features

• Low-frequency transformer design

• Strong overload capacity

• Stable operation under harsh grid conditions

• Ideal for residential solar and backup power systems

This inverter is well-suited for users seeking a durable single phase solution with high surge capability.

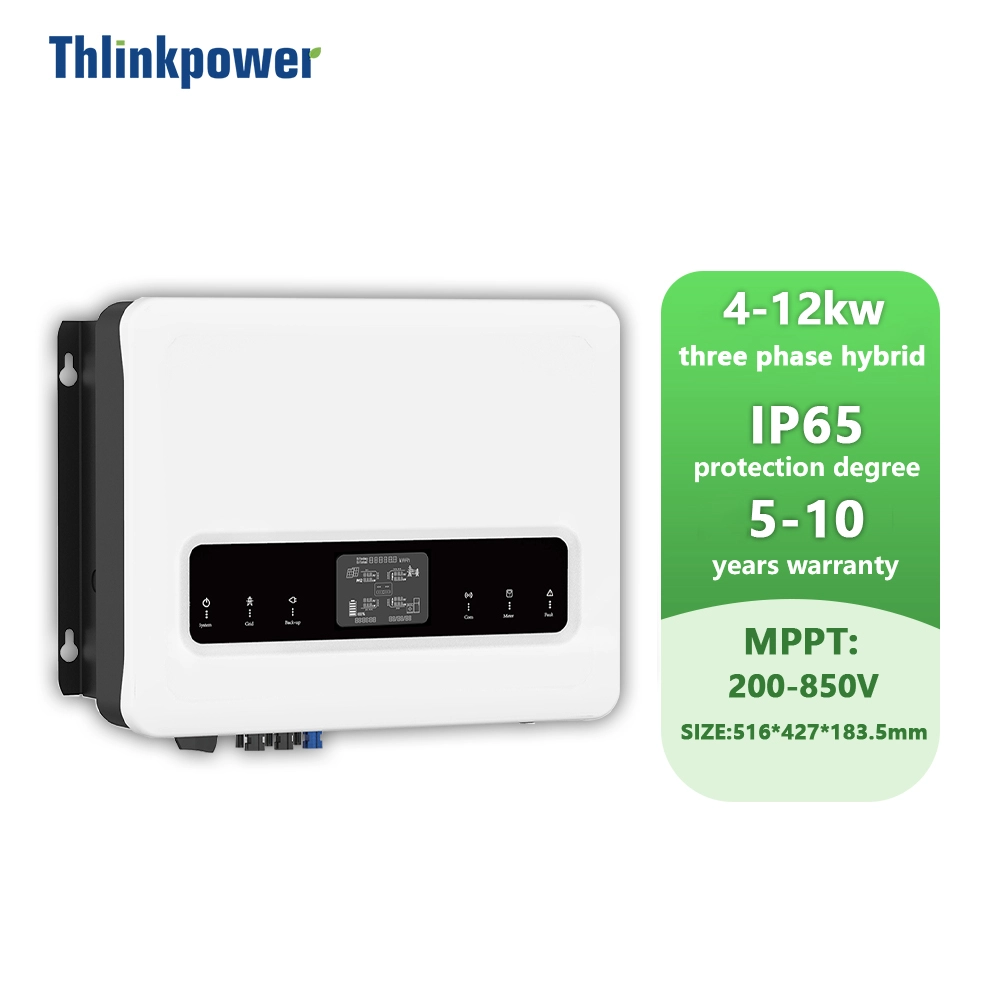

2) Thlinkpower ESS Three Phase Hybrid Solar Inverter (4kW–12kW)

Key Features

• Available from 4 kW to 12 kW

• Supports energy storage integration

• High conversion efficiency

• Designed for commercial and light industrial use

These three phase hybrid inverters provide scalable solutions for businesses transitioning to solar energy and energy storage systems.

Conclusion

Choosing between a single phase inverter vs three phase inverter depends on power demand, load type, grid availability, and long-term expansion plans.

• Single phase inverters remain the preferred choice for residential and small systems due to simplicity and cost efficiency.

• Three phase inverters dominate commercial and industrial sectors due to superior stability, efficiency, and load-handling capability.

For users facing grid limitations, inverter single phase to three phase solutions offer a practical alternative without major infrastructure upgrades.

Thlinkpower delivers reliable, efficient, and scalable power solutions for global energy applications.
