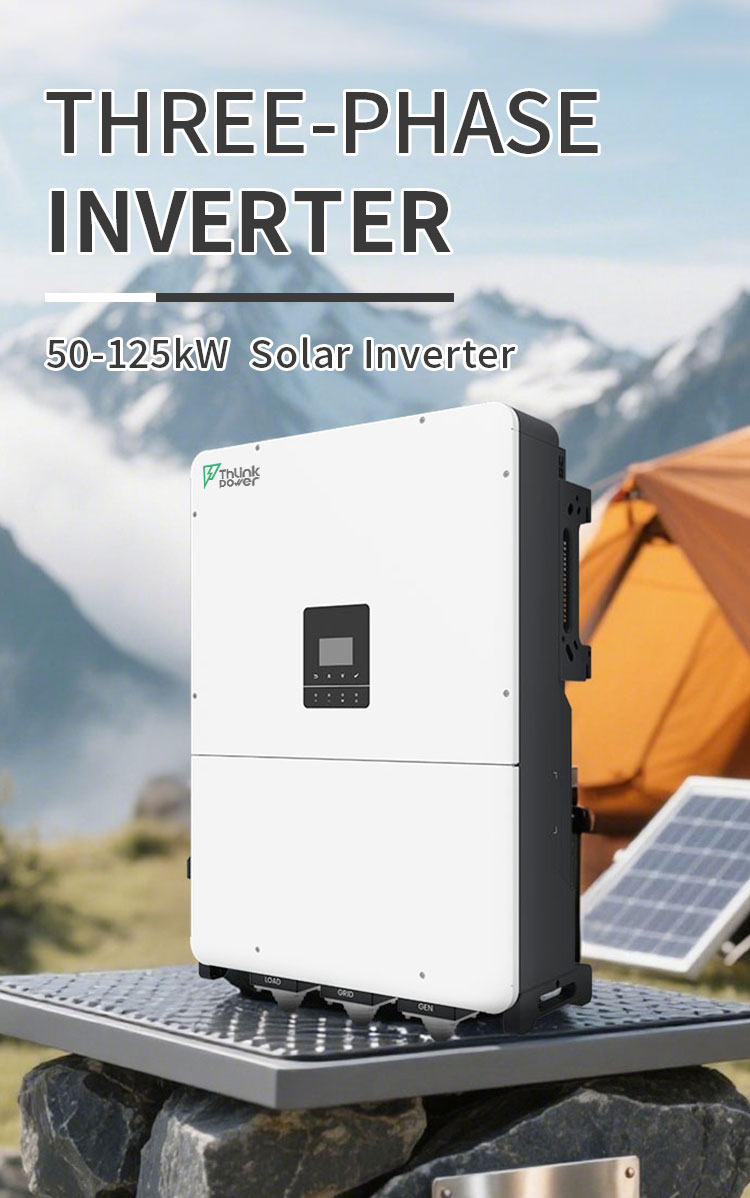

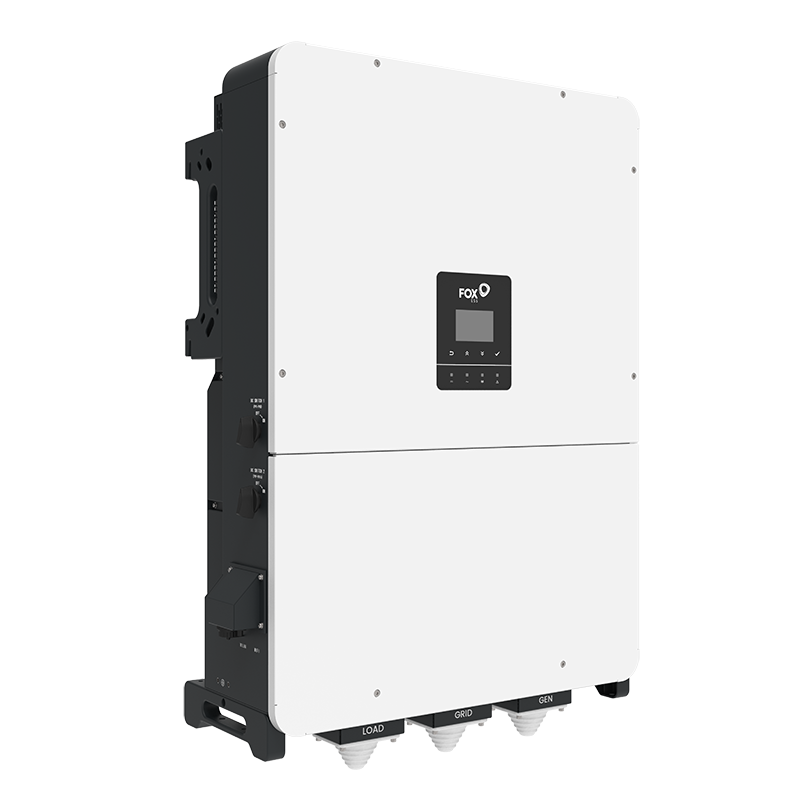

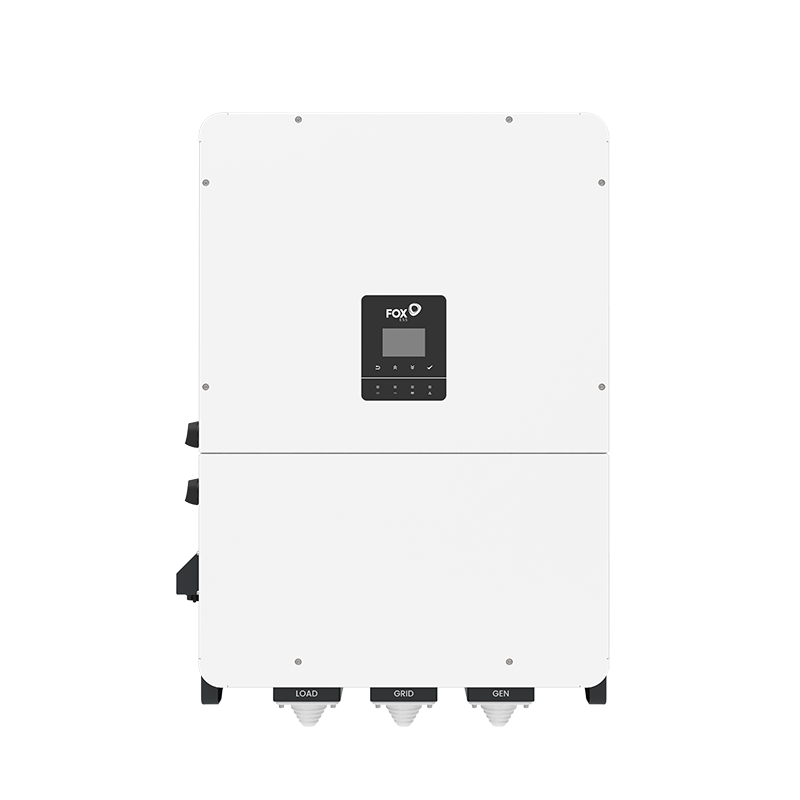

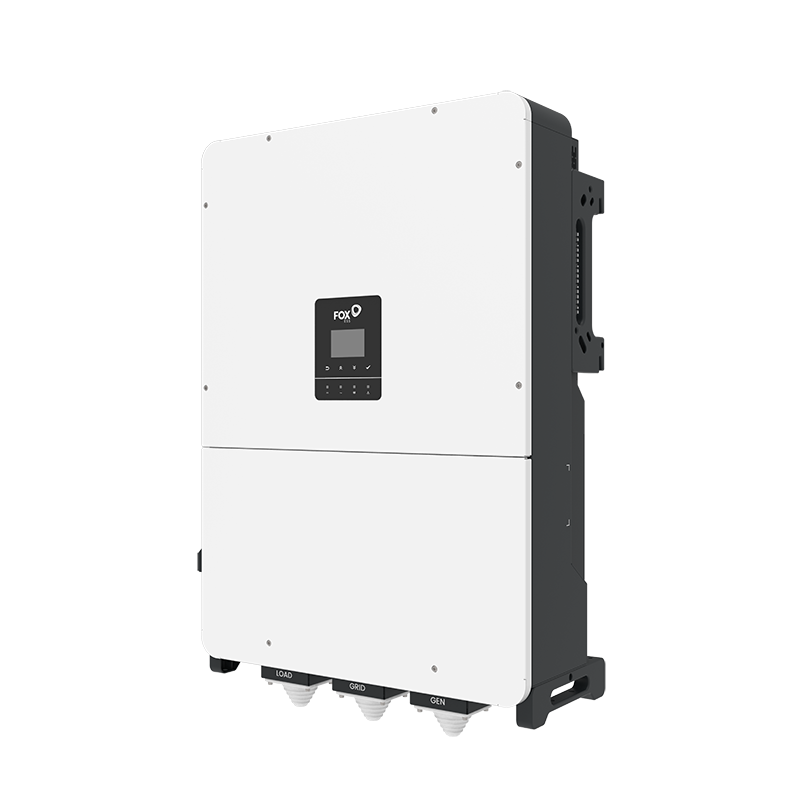

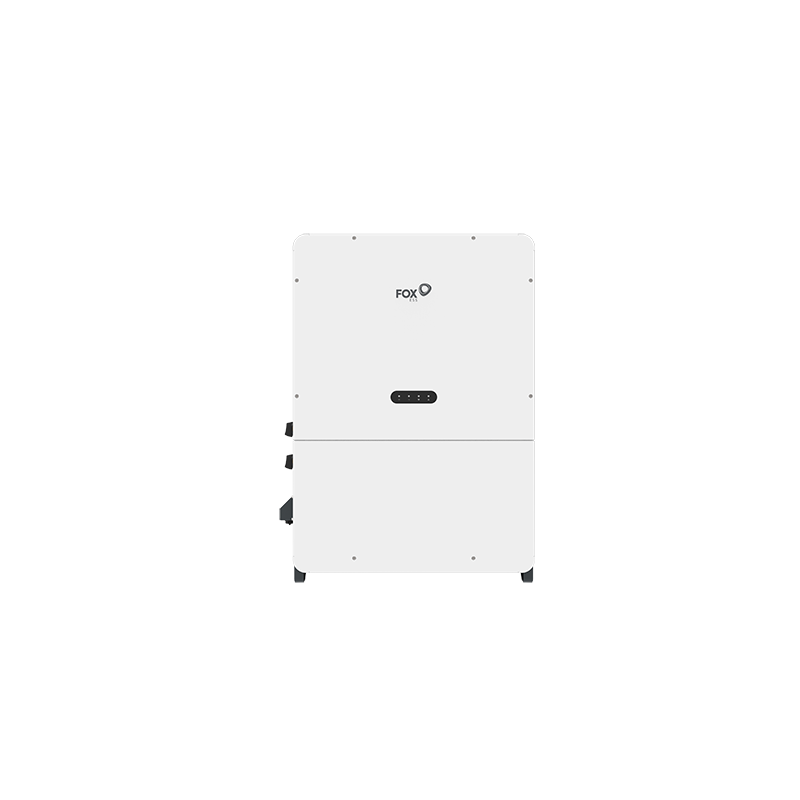

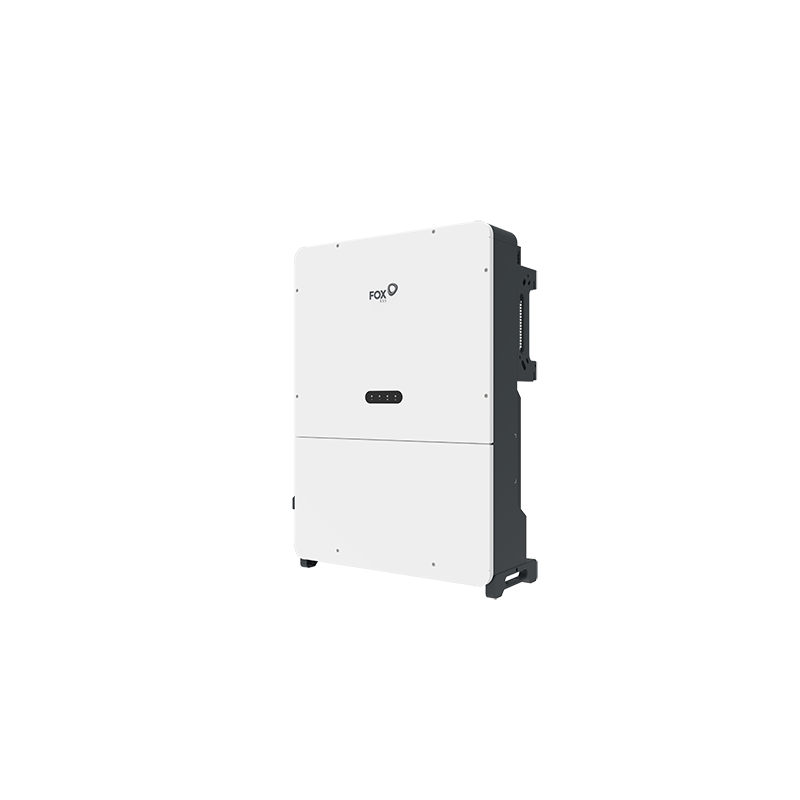

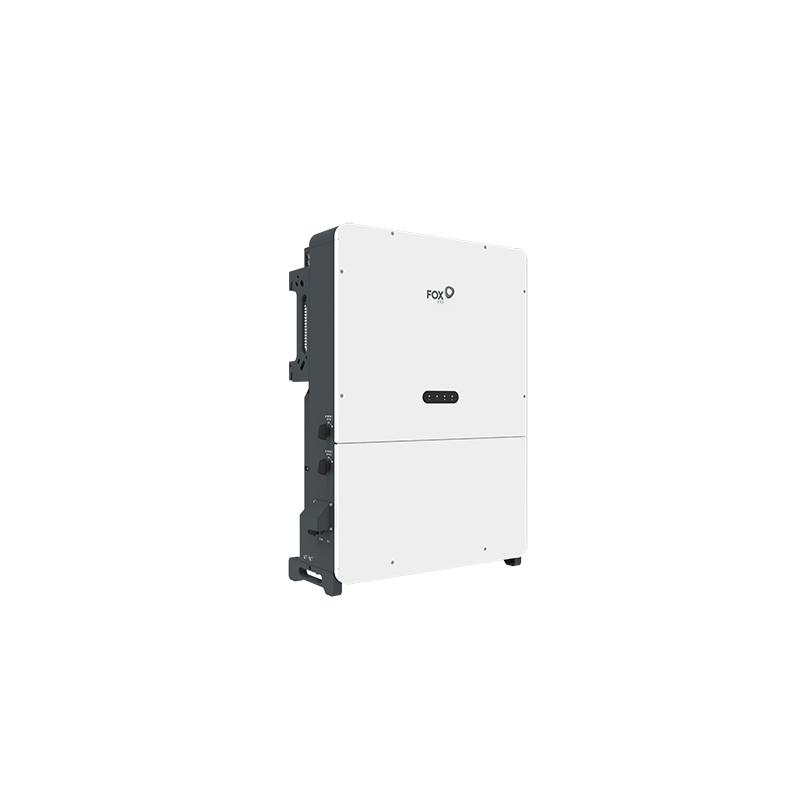

Built-in MPPT Three Phase Hybrid 50-125kw HV Energy Storage Solar Inverter Touch Screen

Product Overview

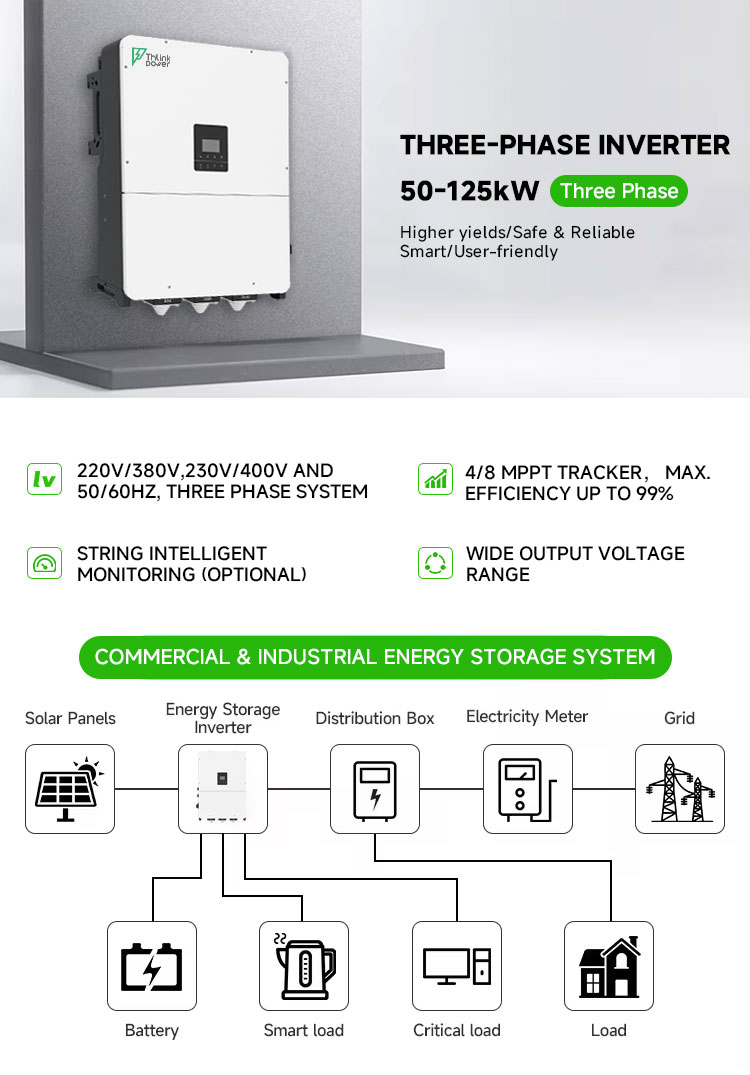

The 50–125kW Three Phase Hybrid HV Energy Storage Inverter integrates advanced MPPT technology and multi-battery interfaces for superior flexibility and reliability. Designed for commercial and industrial microgrid applications, it ensures seamless on/off-grid transitions, high conversion efficiency, and smart fault isolation for uninterrupted power management.

Product Features

1. High MPPT Performance & Efficiency
Equipped with 4–8 MPPT channels and a maximum string current of 40A, this inverter ensures precise energy tracking and optimized power generation across varying solar conditions.

2. Multi-Battery & Parallel Scalability
Supports 3 independent battery interfaces with 80A charge/discharge each and up to 10 parallel units—ideal for large-scale, high-demand installations requiring flexibility and redundancy.

3. Seamless Operation & Smart Protection
With a rapid 10ms on/off-grid switching and active fault isolation, the inverter guarantees stable performance, reliable microgrid operation, and enhanced battery protection.

Product Specifications

MODEL		H3-50-Plus	H3-60-Plus	H3-75-Plus	H3-80-Plus	H3-100-Plus	H3-110-Plus	H3-125-Plus
Battery Type		LFP
Voltage Range [V]		180 ~ 950
Max. Charging/Discharging Current [A]		3*80
Battery Port		3
Communication		CAN
DC SPECIFICATION
Max. DC Array Power [kW]		100	120	150	160	200	220	250
Max. DC Input Power [kW]		100	120	150	160	200	220	250
Max. DC Voltage [V]		1000
Input Voltage Range [V]		180 ~ 950
Start up Voltage [V]		180
MPPT Voltage Range [V]		180 ~ 850
MPPT No. / String per MPPT		4/2	4/2	8/2	8/2	8/2	8/2	8/2
Max. Current per MPPT [A]		40
Max. Short Circuit Current per MPPT [A]		55
AC SPECIFICATION
Nominal AC Output [kW]		50	60	75	80	100	100/110	100/125
Max. AC Output [kVA]		55	66	82.5	88	110	100/121	100/137.5
Nominal AC Output Current [A]	380V	76	91.2	113.9	121.6	152	152/167.1	152/189.9
	400V	72.2	86.6	108.3	115.5	144.4	144.4/158.8	144.4/180.4
Max. AC Output Current [A]	380V	83.6	100.3	125.4	133.7	167.2	152/183.8	152/198.5
	400V	79.4	95.3	119.1	127	158.8	144.4/174.7	144.4/198.5
Max. Bypass Current [A]		300
Nominal AC Voltage [V]		380/400, 3W+N+PE or 3W+PE
AC Output Voltage Range [Un]		0.8 ~ 1.2
Nominal AC Input Frequency [Hz]		50/60
Frequency Range [Hz]		45 ~ 55 / 55 ~ 65
Power Factor		0.8 Leading ~ 0.8 Lagging
Max. THDi [%]		<3
DC Injection Current [%]		0.5
On/off grid Switch Time [ms]		<10
Peak Current (off-grid)		225A, 10s
LRA Current [A]		300
Max. THDu (Off-grid) [%]		<3 (Linear Load)
EFFICIENCY
Euro  Efficiency [%]		97.6
Max. Efficiency [%]		98.2
PROTECTION
DC Input Switch		Yes
Battery Reverse Polarity		Yes
PV Reverse Polarity		Yes
AC Over Current Protection		Yes
AC Output Short Circuit Protection		Yes
AC/DC Surge Protection		Class II
ISO Detection		Yes
Residual Current Detection		Yes
Ground Fault Detection		Yes
AFCI		Yes
String Current Detection		Yes
GENERAL SEPECIFICATION
Dimenaion (W*H*D) [mm]		730*990*305
Weight [kg]		105	105	115	115	115	115	115
Working Temperature [°C]		–30 ~ 60
Cooling Method		Smart Air Cooling
Working Altitude[m]		4000
Humidity [%]		0 ~ 100
Noise [dB]		<70
Night Consumption[W]		<60
DC-Link EV Charger Ready [kW]		20 ~ 50
IP Rating		IP65
Topology		Non-Isolation
Display		LED, Wi-Fi+APP
Communication Parts		USB / RS485 / Bluetooth / Wi-Fi+LAN / 4G(Optional) / CAN
