Home / Products / Solar Inverter / Hybrid Inverter for Sale / 10.2KW Split Type Built-In MPPT Solar Charger 12000 Watt Inverter
This product is no longer available

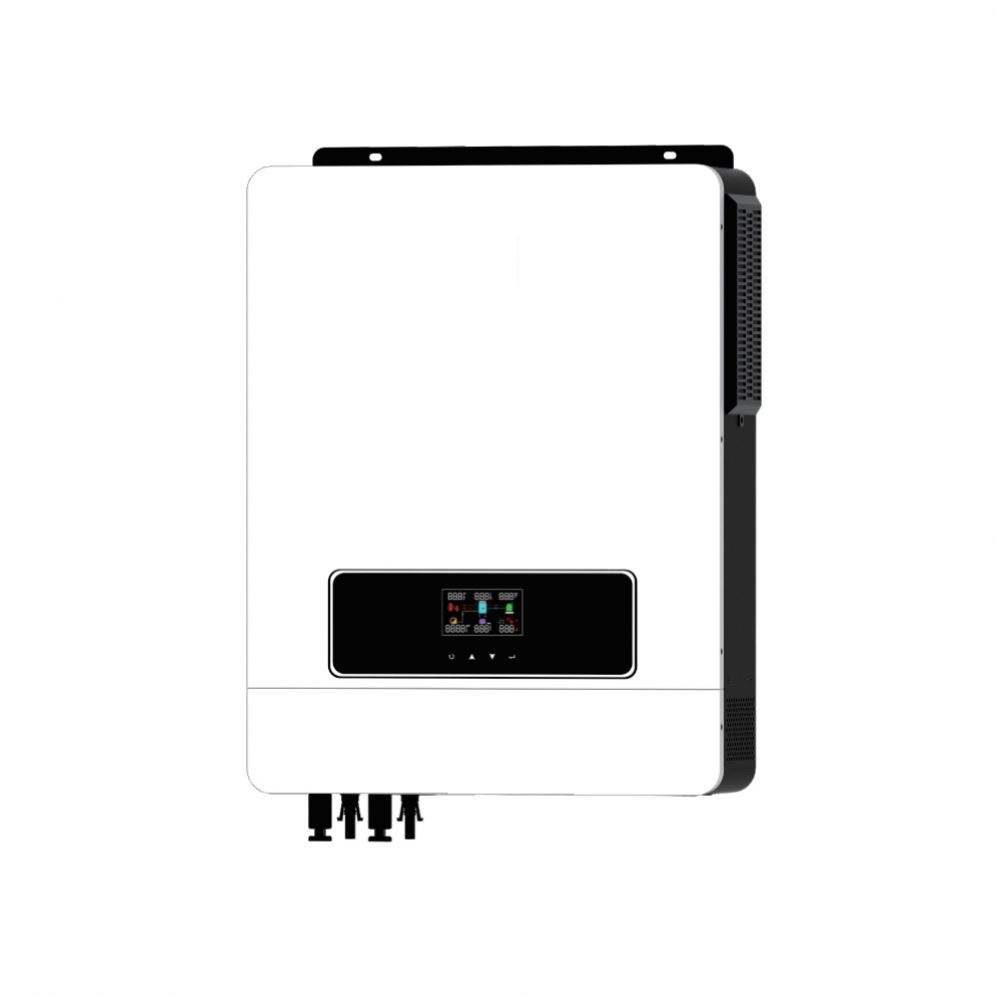

10.2KW Split Type Built-In MPPT Solar Charger 12000 Watt Inverter

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:

Product Description

Watt Inverter
Watt Inverter

I ON/OFF Grid Solar Inverter

On / off Grid Solar Inverter can be widely used in various home storage application environments.

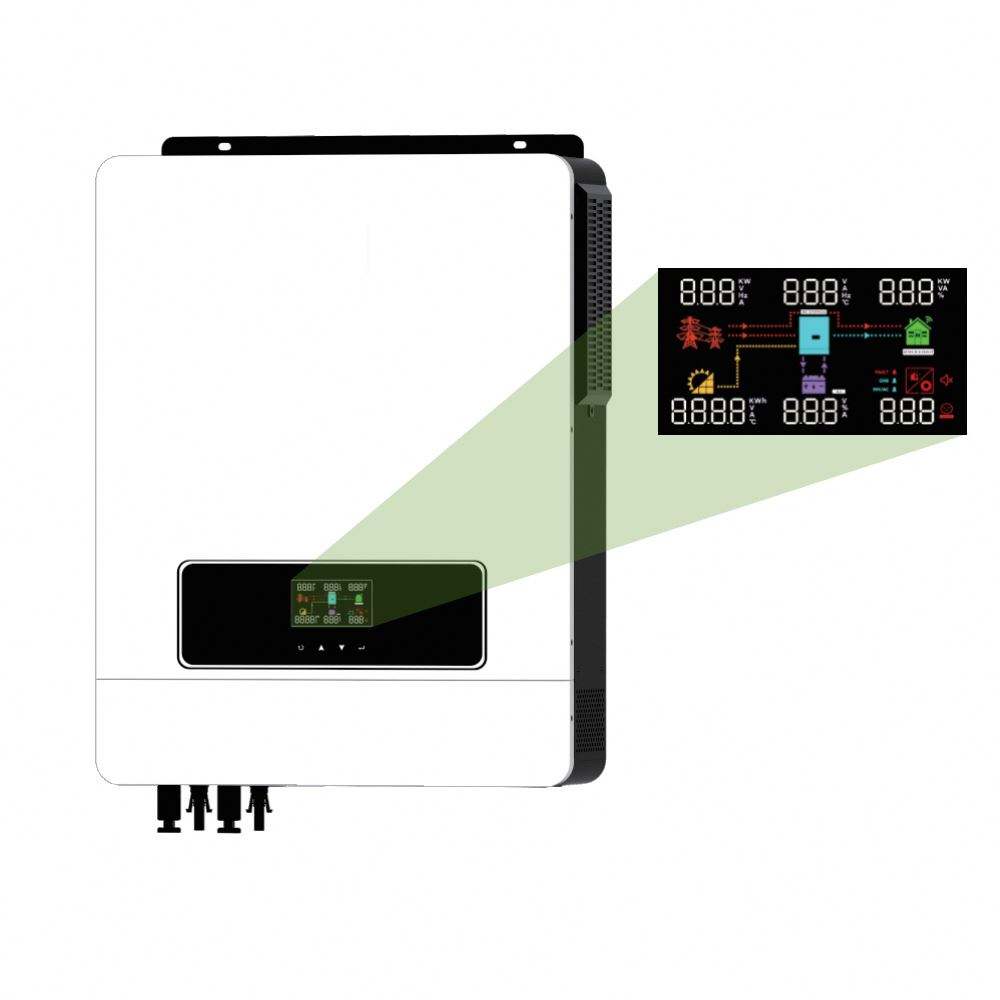

Combined with smart display, it makes operation and maintenance easier.
Watt Inverter
Watt Inverter
Watt Inverter
Product parameters
Watt Inverter
Model
7.2KW
8.2KW
8.2W
10.2W



Phase
1 Phase

Maximum PV Input Power
8200W
8200W
5400W+5400W
10200W
5400W+5400W





Rated Output Power
7200W/7200VA
8200W/8200VA
10200W/10200VA



Maximum Solar Charging Current
104A
160A
160A



GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage

360/500VDC

Start-up Voltage / Initial Feeding Voltage
90VDC/120VDC

MPPT Voltage Range
90~450VDC

Maximum Input Current
1/23A
1/23A
2/18A
1/23A
2/18A





GRID OUTPUT (AC)
Nominal Output Voltage
220/230/240VAC

Output Voltage Range
190~253VDC

Nominal Output Current
31.3A
35.6A
44.3A



Power Factor
>0.99

EFFICIENCY
Maximum Conversion Efficiency (DC/AC)
98%

TWO LOAD OUTPUT POWER
Full Load
7200W
8200W
10200W



Maxium Main Load
7200W
8200W
10200W



Maxium Second Load(battery mode)
2400W
2733W
3400W



Maxium Load Cut Off Voltage
52V DC
52V DC
52V DC



Maxium Load Return Voltage
54V DC
54V DC
54V DC



OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
120-140VAC/180VAC

Acceptable Input Voltage Range
90-280VACor170-280VAC

Frequency Range
48~52 HZ

Maximum AC Input Current
40A
40A
50A



PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage
360/500VDC

MPPT Voltage Range
90~450VDC

Maximum Input Current
1/23A
1/23A
2/18A
1/23A
2/18A





BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
220/230/240VAC

Output Waveform
Pure sine wave

Efficiency (DC to AC)
94%

For more models and information of solar inverter, please feel free to Contact us
Recommend Products
Watt Inverter
Products Details
Watt Inverter
Application
Watt Inverter
Watt Inverter
Why Choose Us
Watt Inverter
Watt Inverter
FAQ
Watt Inverter
Q1: Are you direct manufacturer or trading company?
Thlinkpower is a global leading energy storage solution provider, owning three manufacturing centers in Ningbo China. We have 550+ employees, and a R&D team of 150+ people with more than 10 years experience in this industry, who has deep understanding for energy storage and global carbon neutrality.

Q2: What services can thlinkpower provide you?
1. pre-sale service: Custom scheme design Pre-installation design of the system Early design of system debugging.
2. Quick install: Delivered with installation kit and video Remote Online Video Installation Guide.
3. Remote training: Online Product Training Online Troubleshooting Training.
4. After-sales service: 7 days x 24 hours dedicated and timely service Remote diagnostics and technical support and regular system maintenance.


Q3: Why choose Thlinkpower inverter ?
1 Thlinkpower Solar inverters have been installed in more than 60 countries (e.g. Mid-East , EU ,Africa, Latin-America )
with currently 3 manufacture base in Ningbo ,Huizhou Shenzhen.
2 It is Your Best Choice For AC Storage Hybrid Solutions and String Inverters.
3 all Thlinkpower Solar inverters and distributors are insured by US CHUBB Insurance corporation company.
4 All Solar inverters are equipped with Standard WiFi communication.
5.All thlinkpower Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card).



Q4: What's the different between inverter and solar inverter? Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.



Q5: May I take some samples to test before placing the order ?
Yes, we can provide sample but customer should pay cost of sample and freight charge.



Q6: How about the after-sales service?
We have a big after-sales team, if you have any problems, please tell us directly and we will try our best to solve all of your problems.
