Product Description

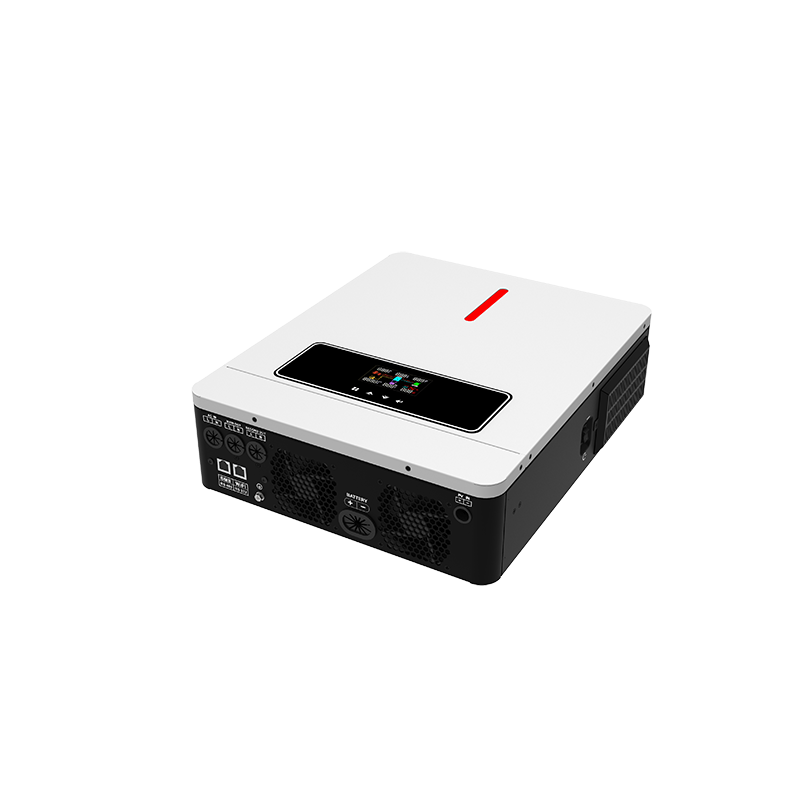

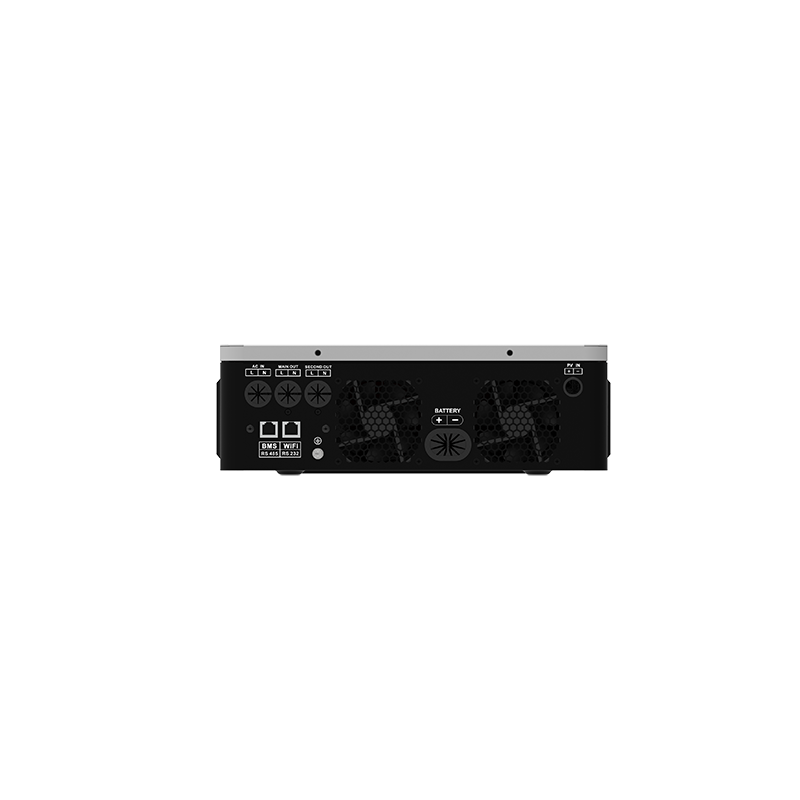

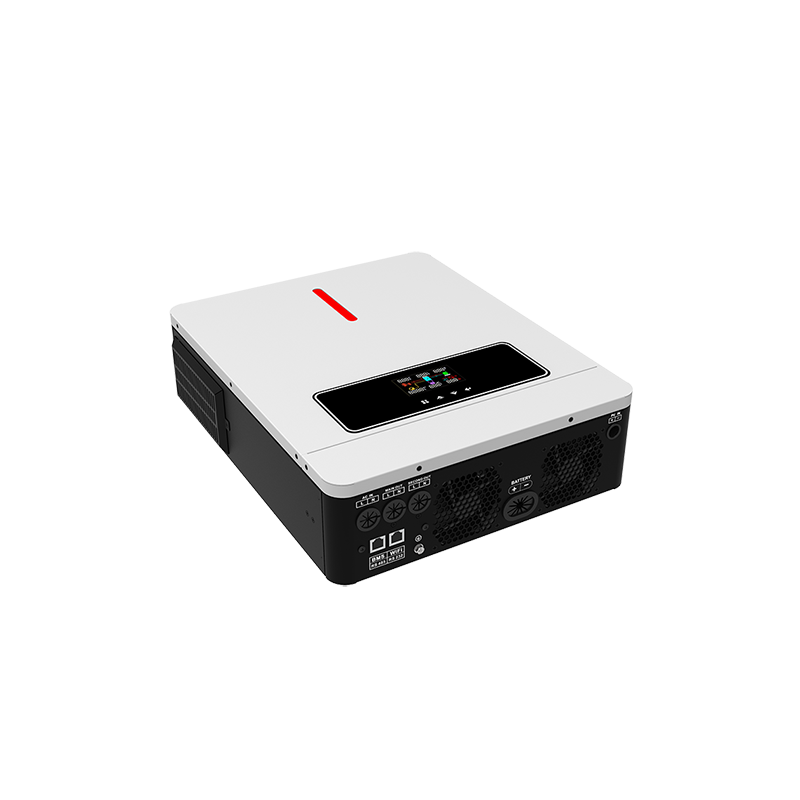

The Pure Sine Wave Hybrid Solar Inverter is an advanced energy management solution designed for residential and commercial solar systems. Supporting both on-grid and off-grid operation, it delivers stable power output with a power factor of 1.0, ensuring maximum efficiency and reliability.
Engineered with flexibility in mind, this inverter can run with or without batteries, making it ideal for users who want to minimize upfront costs or gradually expand their energy storage system. The built-in MPPT solar charge controllers (80A/120A) optimize solar energy harvesting, with maximum PV input power up to 6500W and efficiency reaching 98%.
With dual load output, the inverter intelligently manages main and secondary loads, while its smart battery charging design enhances battery lifespan. Connectivity is seamless through dual communication ports and WiFi/GPRS monitoring, enabling real-time system management via iOS and Android apps.
Built for durability, the inverter features an anti-dust kit and operates in harsh environments at temperatures up to 45°C without power degradation. Certified with CE standards and tested for international compliance, it provides reliable, high-quality performance for diverse energy needs.
On/Off-Grid Flexibility – Operates with or without batteries, ideal for versatile system setups.
High Efficiency – Up to 98% DC/AC conversion efficiency with pure sine wave output.
Smart MPPT Charging – Built-in 80A/120A MPPT controller for optimized solar utilization.
Advanced Connectivity – WiFi/GPRS monitoring, dual communication ports, iOS/Android support.
Durable & Reliable – IP-rated design, anti-dust kit, and stable performance in harsh conditions.
| MODEL | ECO-3.6KW PLUS | ECO-4.2KW PLUS | ECO-6.2KW PLUS | |
| Phase | 1-phase | |||
| Maximum PV Input Power | 6200W | 6500W | 6200W | 6500W |
| Rated Output Power | 3600W/3600VA | 4200W/4200VA | 6200W/6200VA | |
| Maximum Solar Charging Current | 120A | 80A | 120A | |
| GRID-TIE OPERATION | ||||
| PVINPUT(DC) | ||||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |||
| Start-up Voltage/lnitial Feeding Voltage | 60VDC/90VDC | |||
| MPPT Voltage Range | 60~450VDC | |||
| Maximum Input Current | 1/18A | 1/22A | 1/18A | 1/22A |
| GRID OUTPUT(AC) | ||||
| Nominal Output Voltage | 220/230/240VAC | |||
| Output Voltage Range | 195~253VAC | |||
| Nominal Output Current | 15.7A | 18.2A | 27.0A | |
| Power Factor | >0.99 | |||
| EFFICIENCY | ||||
| Maximum Conversion Efficiency(DC/AC) | 98% | |||
| TWO LOAD OUTPUT POWER | ||||
| Full Load | 3600W | 4200W | 6200W | |
| Maximum Main Load | 3600W | 4200W | 6200W | |
| Second Load Range | 720W~2520W | 840W~2940W | 1240W~4340W | |
| Maximum Load Cut Off Voltage | 26VDC | 52VDC | 26VDC | 52VDC |
| Maximum Load Return Voltage | 27VDC | 54VDC | 27VDC | 54VDC |
| OFF-GRID OPERATION | ||||
| AC INPUT | ||||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||
| Acceptable Input Voltage Range | 90~280VACor 170~280VAC | |||
| Frequency Range | 50±1Hz/60±1Hz | |||
| MaximumAC input Current | 21.1A | 24.7A | 36.4A | |
| PVINPUT(DC) | ||||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |||
| MPPT Voltage Range | 60~450VDC | |||
| Maximum Input Current | 1/18A | 1/22A | 1/18A | 1/22A |
| BATTERY MODE OUTPUT(AC) | ||||
| Nominal Output Voltage | 220/230/240VAC | |||
| Output Wave Form | Pure sine wave | |||
| Eficiency(DC to AC) | 94% | |||
| BATTERY&CHARGER | ||||
| Nominal DC Voltage | 24VDC | 48VDC | 24VDC | 48VDC |
| Maximum Solar Charging Current | 120A | 80A | 120A | 120A |
| MaximumAC Charging Current | 100A | 60A | 100A | 100A |
| Maximum Sotar+AC Charging Current | 120A | 80A | 120A | 120A |
| HYBRID OPERATION | ||||
| PVINPUT(DC) | ||||
| Nominal DC Voltage/Maximum DC Voltage | 360/500VDC | |||
| Start-up Voltage/lnitial Feeding Voltage | 90VDC/120VDC | |||
| MPPT Voltage Range | 60~450VDC | |||
| Maximum Input Current | 1/18A | 1/22A | 1/18A | 1/22A |
| GRID OUTPUT(AC) | ||||
| Nominal Output Voltage | 220/230/240VAC | |||
| Output Voltage Range | 195~253VAC | |||
| Nominal Output Current | 15.7A | 18.2A | 27.0A | |
| AC INPUT | ||||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |||
| MaximumAC Input Current | 21.1A | 24.7A | 36.4A | |
| Maximum Charging Current | 100A | |||
| GENERAL | ||||
| PHYSICAL | ||||
| Dimension,H*W*D(mm) | 420*350*110 | |||
| Cartoon Dimension,H*W*D(mm) | 500*415*180 | |||
| Net Weight (kgs) | 8.0 | 8 | 8.9 | |
| Gross Weight(kgs) | 9 | 9 | 10 | |
| INTERACE | ||||
| Communication Port | RS232/RS485/WIFI/GPRS/LITHIUM BATTERY | |||
| ENVIRONMENT | ||||
| Humidity | 5%to 95%Relative Humidity(Non~condensing) | |||
| Operating Temperature | -10℃~50℃ | |||
| STANDARD | ||||
| Compliance Safety | CE | |||
