Product Description

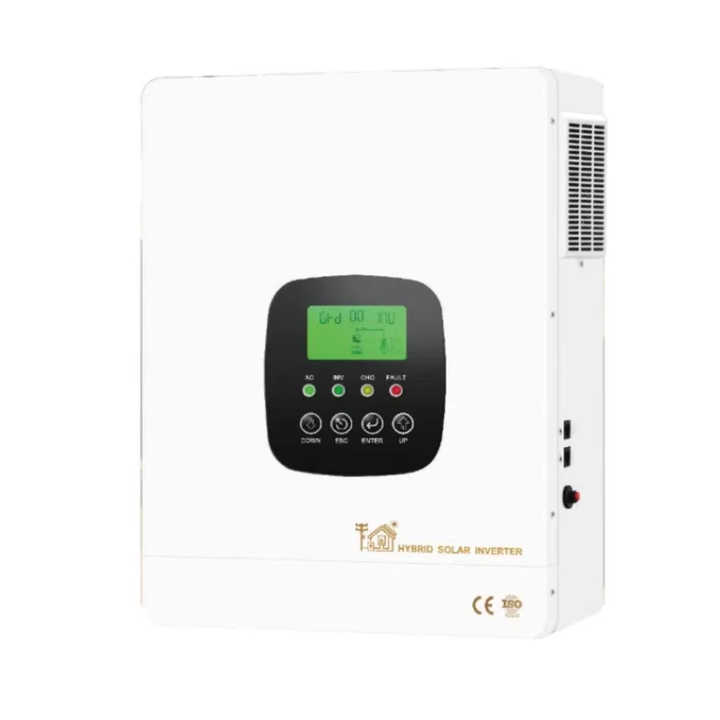

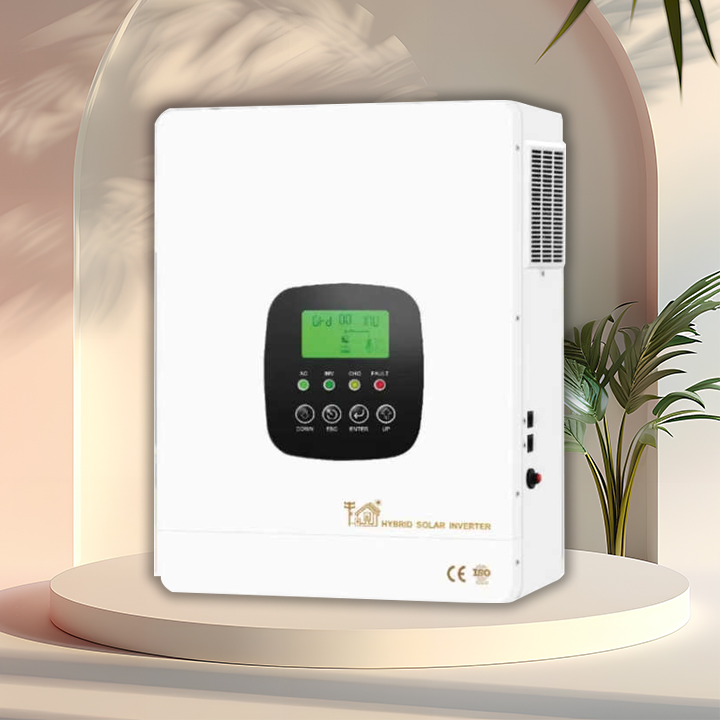

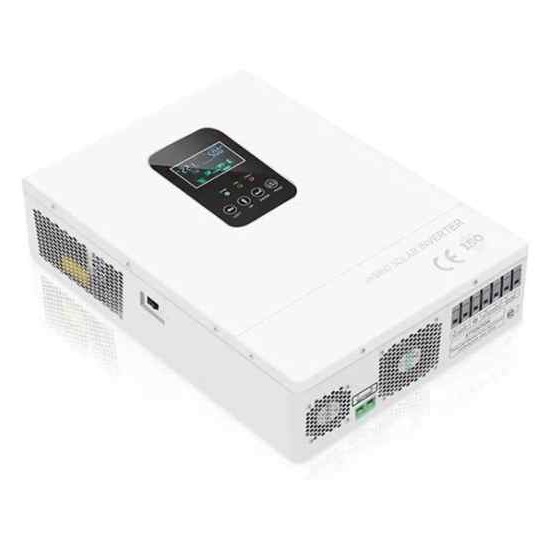

The HFP Series On & Off Grid Hybrid Solar Inverter (3.3kW–12.3kW) combines high-frequency design, compact size, and outstanding efficiency to deliver reliable solar energy solutions for homes and businesses. With bidirectional charging, the inverter allows both solar PV and grid power to charge batteries, while its ultra-wide MPPT range ensures maximum solar energy capture. Users can flexibly configure operation modes—including on-grid, off-grid, or hybrid—according to energy needs. Advanced lithium battery BMS communication, dual charging options, and support for battery-less operation make this inverter an ideal choice for achieving energy independence and smart solar power management.
Bidirectional Energy Storage
Supports charging batteries from both PV and the utility grid with intelligent flow control.
Flexible Operating Modes
Configurable for on-grid, off-grid, or hybrid use, with priority settings for output and charging.
Wide MPPT Range & Battery Compatibility
MPPT range from 40V–450V (24V models) / 80V–450V (48V models), compatible with lead-acid, lithium, and custom batteries.
| TECHNICAL SPECIFICATION | ||||||
| Model: HFP | 33224 | 43224 | 63248 | 83248 | 103248 | 123248 |
| PV Input | ||||||
| Max PV input power | 5000W | 7000W | 4500W*2 | 6000W*2 | 6000W*2 | |
| MPPT Tracking Voltage Rang | 40Vdc-450Vdc | 80Vdc-450Vdc | ||||
| Rated Voltage | 360Vdc | |||||
| Max PV Input Voltage voc (at the lowest temperature) | 500Vdc | |||||
| Max PV Input Current | 18A | 27A | 18A*2 | 22A*2 | 27A*2 | |
| MPPT Tracking Channels (Input Routed ) | 1 Routed | 2 Routed | ||||
| Battery&Charging | ||||||
| Battery Type | Lead-acid Battery/Lithium Battery | |||||
| Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board) | ||||||
| Rated Battery Voltage | Lead-acid Battery/Lithium Battery | |||||
| Battery voltage Range | 24Vdc | 48Vdc | ||||

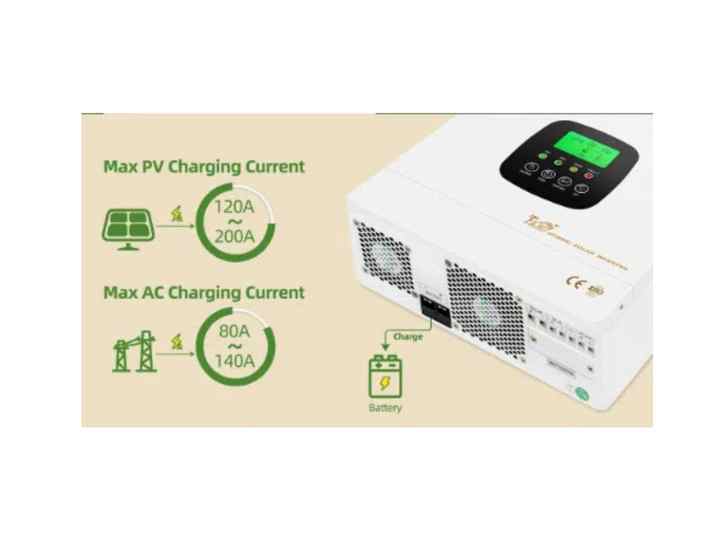

| Max PV Charging Current | 120A | 150A | 120A | 150A | 180A | 200A |
| Max AC Charging Current | 80A | 100A | 80A | 100A | 120A | 140A |
| Max Charging Current | 120A | 150A | 120A | 150A | 180A | 200A |
| On-Grid Operation(On-Grid Output(AC)) | ||||||
| Rated Output Power | 3300W | 4300W | 6300W | 8300W | 10.3KW | 12.3KW |
| Rated Output Voltage | 220VAC/230VAC/240VAC | |||||
| Grid Voltage Range | 187VAC~264VAC | |||||
| Rated Output Frequency | 50Hz/60Hz | |||||
| Frequency Range | 47Hz~52Hz(50Hz),57Hz~62Hz(60Hz) | |||||
| Rated Output Current | 14.5A/13.9A/13.3A | 19.5A/18.7A/17.9A | 28.6A/27.4A/26.2A | 37.7A/36. 1A/34.6A | 46.7A/44.9A/42.9A | 55.9A/53.5A/51.3A |
| Power Factor | >0.98(Rated Power) | |||||
| Off-Grid Operation(AC Input) | ||||||
| Rated Input voltage | 220V /230V/240V | |||||
| Mains input voltage range | 165VAC-280VAC/ 120VAC~280VAC(Canbe set) | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz) | |||||
| Off-Grid Operation(AC Output) | ||||||
| Rated Output Power | 3300W | 4300W | 6300W | 8300W | 10.3KW | 12.3KW |
| Rated Output Voltage | 220V /230V/240V | |||||
| Output Voltage Accuracy | ±2% | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Output Frequency Accuracy | ±1% | |||||
| Output Wave | Pure Sine Wave | |||||
| Hybrid Operation (Complementary Mode(AC Input)) | ||||||
| Rated Input voltage | 220V /230V/240V | |||||
| Mains input voltage range | 187VAC~264VAC | |||||
| Rated Input Frequency | 50Hz/60Hz | |||||
| Input Frequency Range | 47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz) | |||||
| Hybrid Operation (Complementary Mode(AC Output)) | ||||||
| Rated Output Power | 3300W | 4300W | 6300W | 8300W | 10.3KW | 12.3KW |
| Rated Voltage Rated | 220VAC/230VAC/240VAC | |||||
| Output Current | 14.5A/13.9A/13.3A | 19.5A/18.7A/17.9A | 28.6A/27.4A/26.2A | 37.7A/36. 1A/34.6A | 46.7A/44.9A/42.9A | 55.9A/53.5A/51.3A |
| General parameters | ||||||
| Maximum Conversion Efficiency | 94%(peak value) | |||||
| MPPT Tracking Efficiency | ≥99.9 | |||||
| Transfer Time | 10ms(Typical value) | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||
| Communication | RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional) | |||||
| Protection Degree | IP20 | |||||
| Installation | Wall-Mounted | |||||
| Protect | ||||||
| Battery low voltage alarm | 22VDC (default value) | 44VDC (default value) | ||||
| Battery low voltage protection | 21VDC (default value) | 42VDC (default value) | ||||
| Anti-islanding protection | ≤2S | |||||
| overload power protection | Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) | |||||
| Inverter output short circuit protection | Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode) | |||||
| Temperature protection | >90℃(Turn off inverter and charging) | |||||
| Environment | ||||||
| Operating temperature | -10℃~50℃ | |||||
| Storage temperature | -15℃~60℃ | |||||
| Noise | ≤55dB | |||||
| Elevation | 2000m (More than derating) | |||||
| Humidity | 0%~95% ,No condensation | |||||
| Dimension and Weight | ||||||
| Product Size(L*W*Hmm) | 325*275*102 | 365*297* 102 | 390*320*112 | 515*365*117 | 535*462* 117 | 630*540*130 |
| Package Size(L*W*Hmm) | 400*330*167 | 440*352* 167 | 465*375*187 | 600*430*192 | 615*527* 192 | 715*605*205 |
| N.W .(kg) | 6 | 7 | 8.5 | 13 | 15.5 | 23.5 |
| G.W .(kg) | 6.5 | 7.5 | 9.5 | 15 | 17.5 | 25.5 |
