Product Description

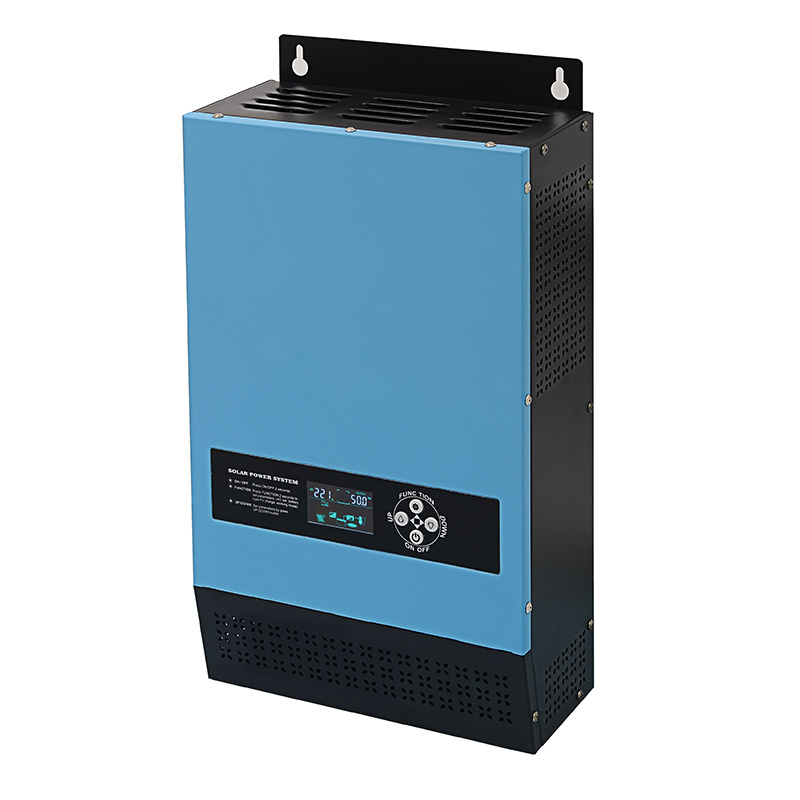

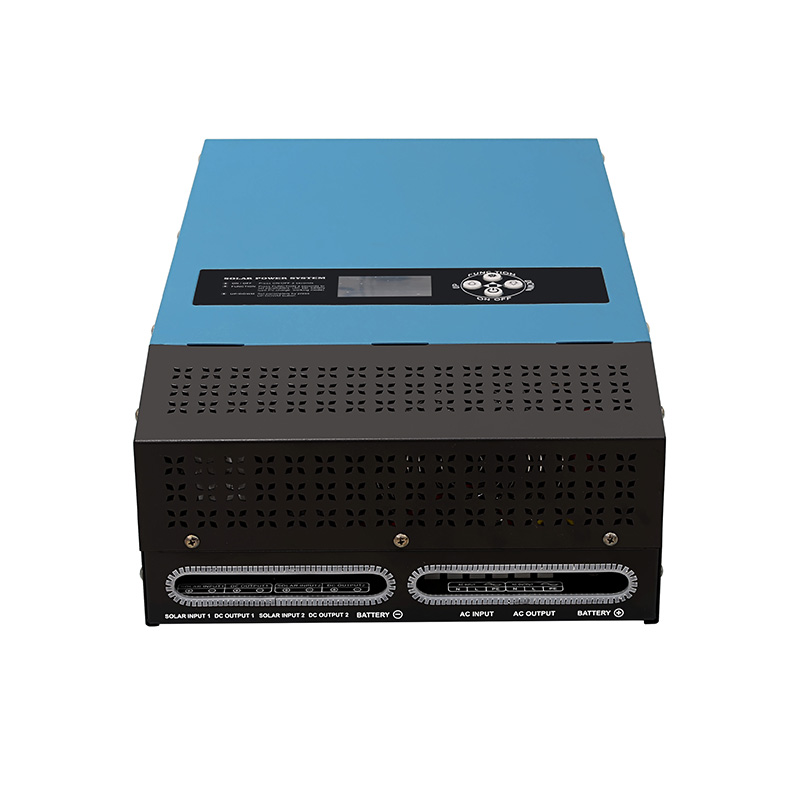

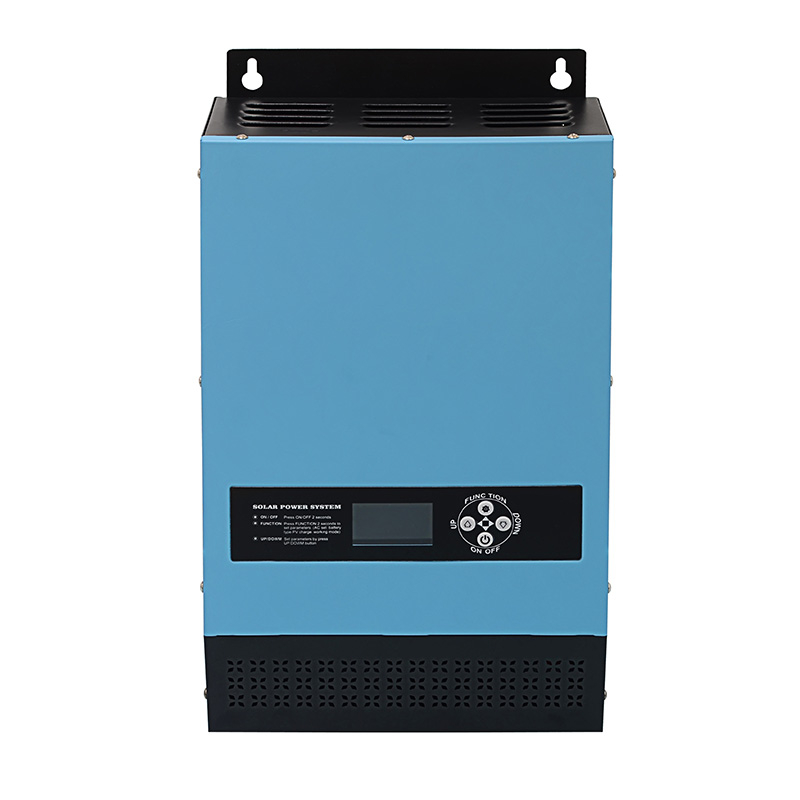

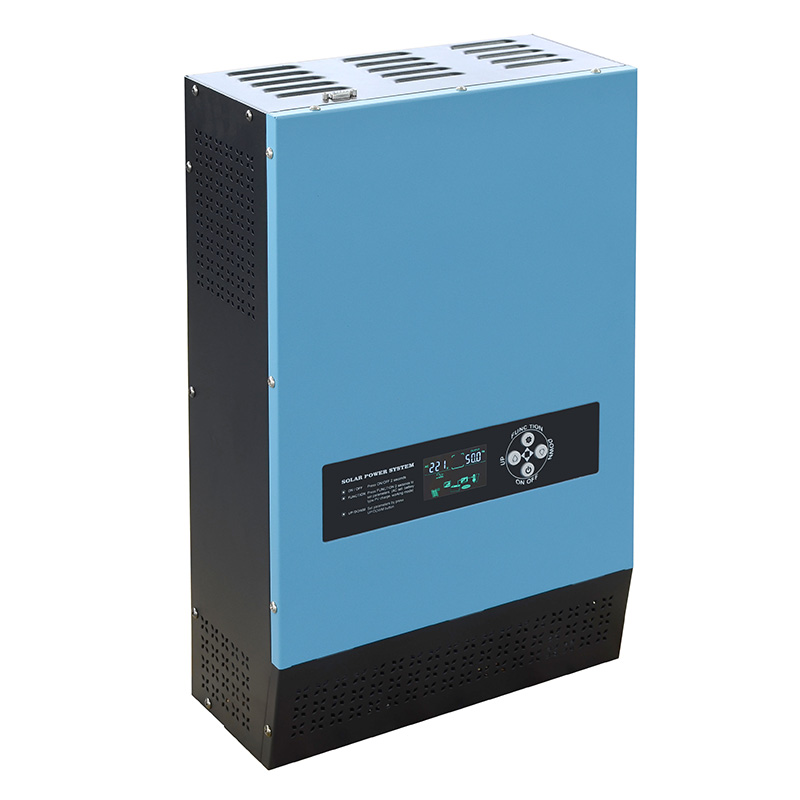

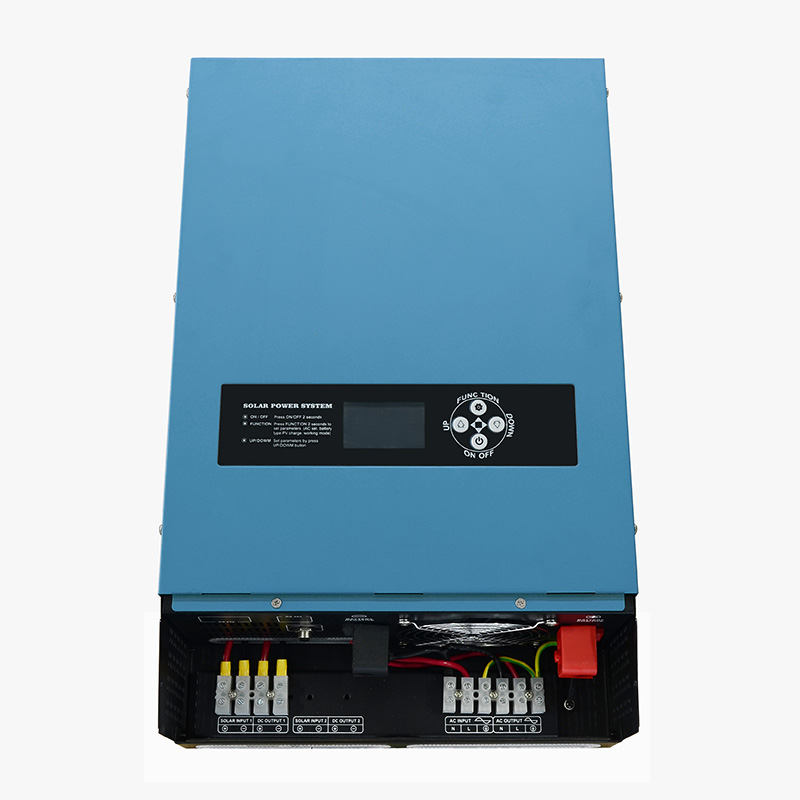

The LS Split-Phase Hybrid Solar Inverter is a versatile solution for residential and industrial applications, providing reliable split-phase power with a pure sine wave output. Equipped with a toroidal low-loss transformer and a built-in MPPT solar controller, it ensures high efficiency and optimal solar energy utilization. Users can choose from three working modes—battery first, AC first, or energy-saving—while flexible AC charging supports various battery capacities. The inverter features an intelligent LCD display, automatic startup peak power exceeding 3× rated power, and comprehensive protection functions. Wall-mounted design and compatibility with diesel/gasoline generators make it ideal for harsh power environments.
High Efficiency & Reliability
Toroidal transformer design, pure sine wave output, >95% conversion efficiency.
Smart Battery & Solar Management
Built-in MPPT controller, adjustable AC charge current, supports multiple battery types.
User-Friendly & Safe
LCD display with real-time fault codes, automatic protections, and quick installation.
| Model: LS/LST | 10212/24/48 | 15212/24/48 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 |
| Power | |||||||
| Rated Power | 1000w | 1500w | 2000w | 3000w | 4000W | 5000w | 600ow |
| Start Motor | 1HP | 1.5HP | 2HP | 3HP | 3HP | 4HP | 4HP |
| Battery Voltage | 12/24148VDC | 24/48VDC | 24/48VDC | 48VDC | |||
| MaxAC charging curent | 0~30A(Depending on model) | ||||||
| Instalation Method | Wall-Mounted | ||||||
| AC Input | |||||||
| DC Input votage Range | 10.5-15VDC (Single batery voltage) | ||||||
| AC Input votage | 110V/120AC(L1-N)or 220VAC/240AC(L1-L2) | ||||||
| AC Input Voltage Range | 85VAC~138VAC(110VAC)/95VAC~148VAC(120VAC)/170VAC~275VAC(220VAC)/190VAC~295VAC(240VAC) | ||||||
| AC Input Frequency Range | 45Hz-55Hz(50Hz)/55Hz-65Hz(60Hz) | ||||||
| AC charging method | Three-stage (constant curent,constant voltage,floating charge) | ||||||
| AC Output | |||||||
| Eficiency(Battery Mode) | ≥85% | ||||||
| Output Voltage(Battery Mode) | L1-N/L2-N:110VACor 120VAC;L1-L2:220VAC or240AC | ||||||
| Output Frequency(Batery Mode) | 50/60Hz±1% | ||||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||||
| ficiency(AC Mode) | ≥99% | ||||||
| Output Voltage(AC Mode) | L1-N/L2-N:110VAC or 120VAC;L1-L2:220VAC or 240AC | ||||||
| Output Frequency(AC Mode) | Follow iput | ||||||
| Output waveform distortion (Battery Mode) | ≤3%(Linear load) | ||||||
| No load lossBatery Mode) | ≤0.8%rated power | ||||||
| No load loss(AC Mode) | ≤2%rated power(charger does not work inAC mode) | ||||||
| Nolad lossEnery saving Mode) | ≤10W | ||||||
| Battery | |||||||
| VRLA Battery | Charge Voltage:14.2V;Float Voltage:13.8V(Single battery voltage) | ||||||
| Customize bttery | Charging and discharging parameters ofdiferent types of batteries can be customized according to user requirements | ||||||
| (charging and discharging parameters of different types of batteries can be set through the operation panel) | |||||||
| Buit-in MPPT Solar Charge Contrller (optional) | |||||||
| Charging Mode | MPPT | ||||||
| Charging curent | 12V/24V:40A; | 12V/24V:60A; | 12V/24V:60A; | 60A | 24V:60A; | 60A or 100A | 60Aor 100A |
| 48V:60A | 48V:60A | 48V:60A | 48V:60A or 100A | ||||
| PV Input Voltage Range | 15V-120V(12V System);30V-120V(24V System);6OV-120V(48V System) | ||||||
| Max PV Input Voltage(Voc) | 150V | ||||||
| (At the lowest temperature) | |||||||
| PVAray Maximum Power | 12V System:560W(40A)/840W(60A);24V System:1120W(40A)/1680W(60A); | ||||||
| 48VSystem:3360W(60A)/5600W(100A) | |||||||
| Standby loss | ≤3W | ||||||
| Maximum conversionefciency | >95% | ||||||
| other | |||||||
| Protection | Batery undervoltage protection/Battery overvoltage protection/overload power protectionlnverter output shor circuit protectionTemperature protection | ||||||
| Working Mode | Battery First/AC First/Saving Energy Mode (can be set) | ||||||
| Transfer Time | ≤4ms | ||||||
| Display | LCD | ||||||
| Thermal method | Cooling fan in intelligent control | ||||||
| Communication | RS485/APP(WIFI monitoring or GPRS monitoring) | ||||||
| Operating temperature | -10℃~40℃ | ||||||
| Storage temperature | -15°℃~60℃ | ||||||
| Noise | 55dB | ||||||
| Elevation | 2000m(More than derating) | ||||||
| Humidity | 0%~95%,No condensation | ||||||
| Dimensions and weight | |||||||
| Product Size(L-WHmm) | 500*300*140 | 530*335*150 | |||||
| Packing Size(LW'Hmm) | 570*385*210 | 600*420*220 | |||||
| N.WV. (ks) | 12 | 13.5 | 18 | 20 | 22 | 24 | 26 |
| G.W. (kg)(Carton Packing) | 13.5 | 15 | 19.5 | 21.5 | 24 | 26 | 28 |
