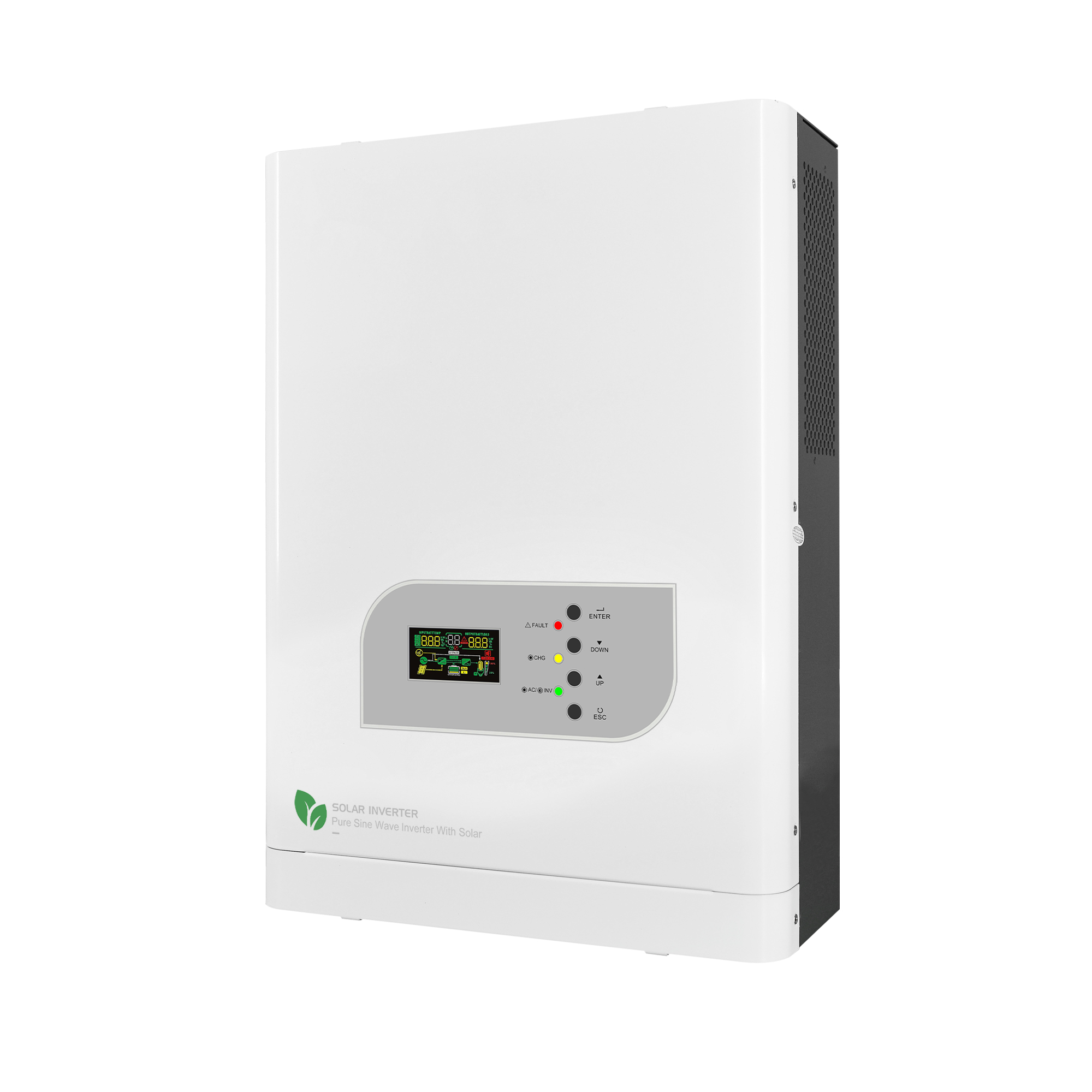

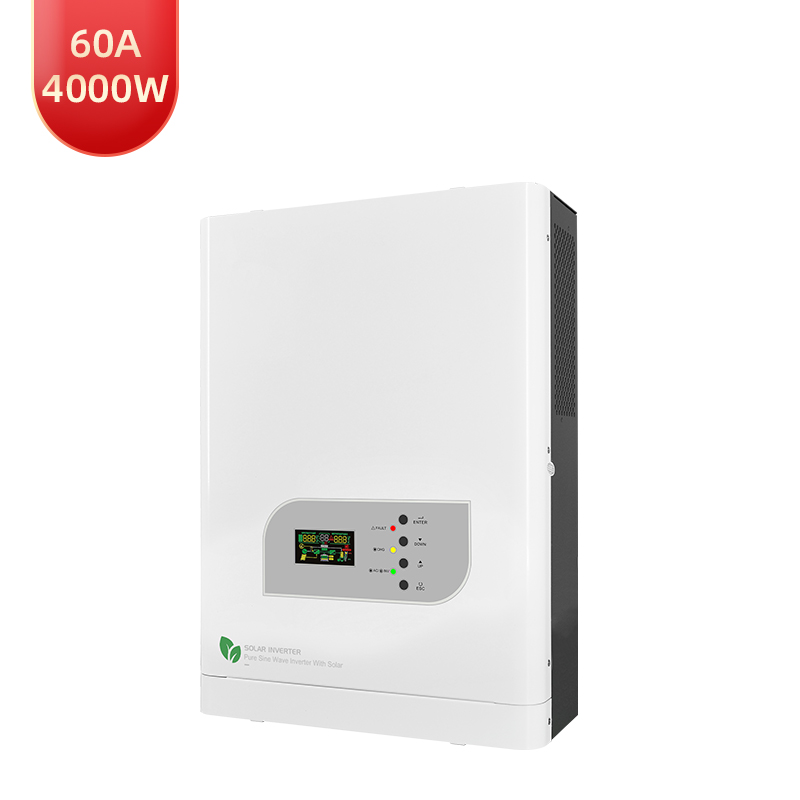

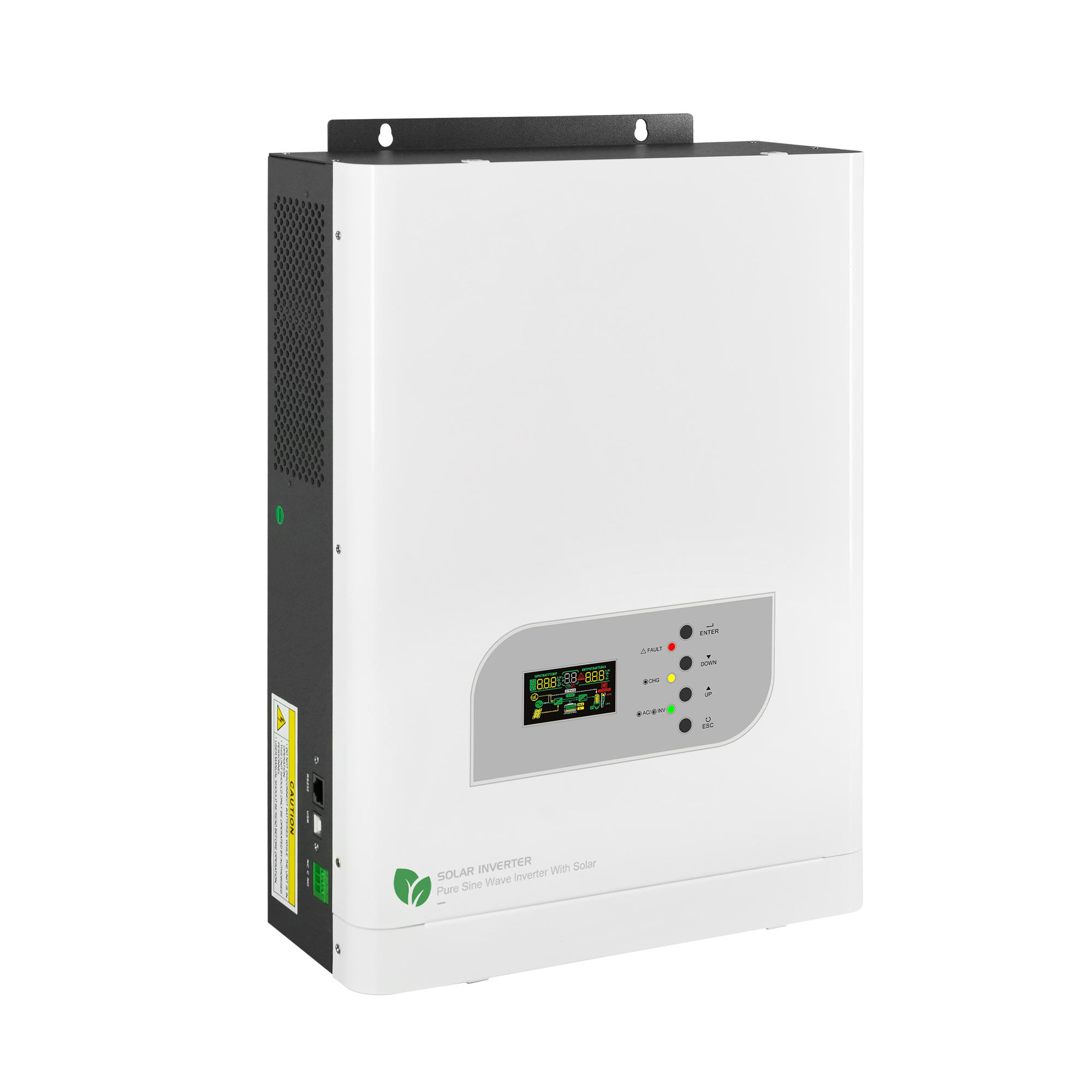

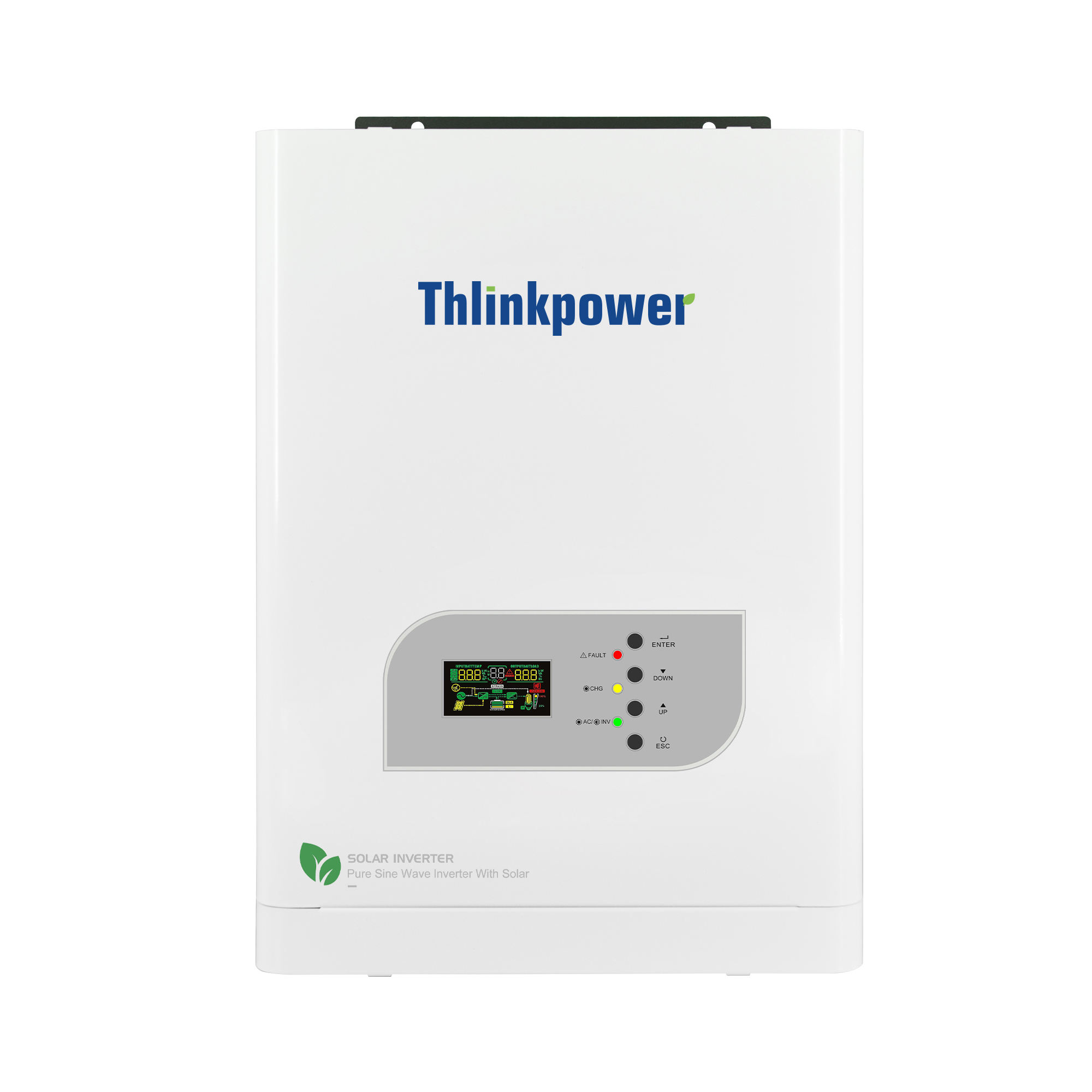

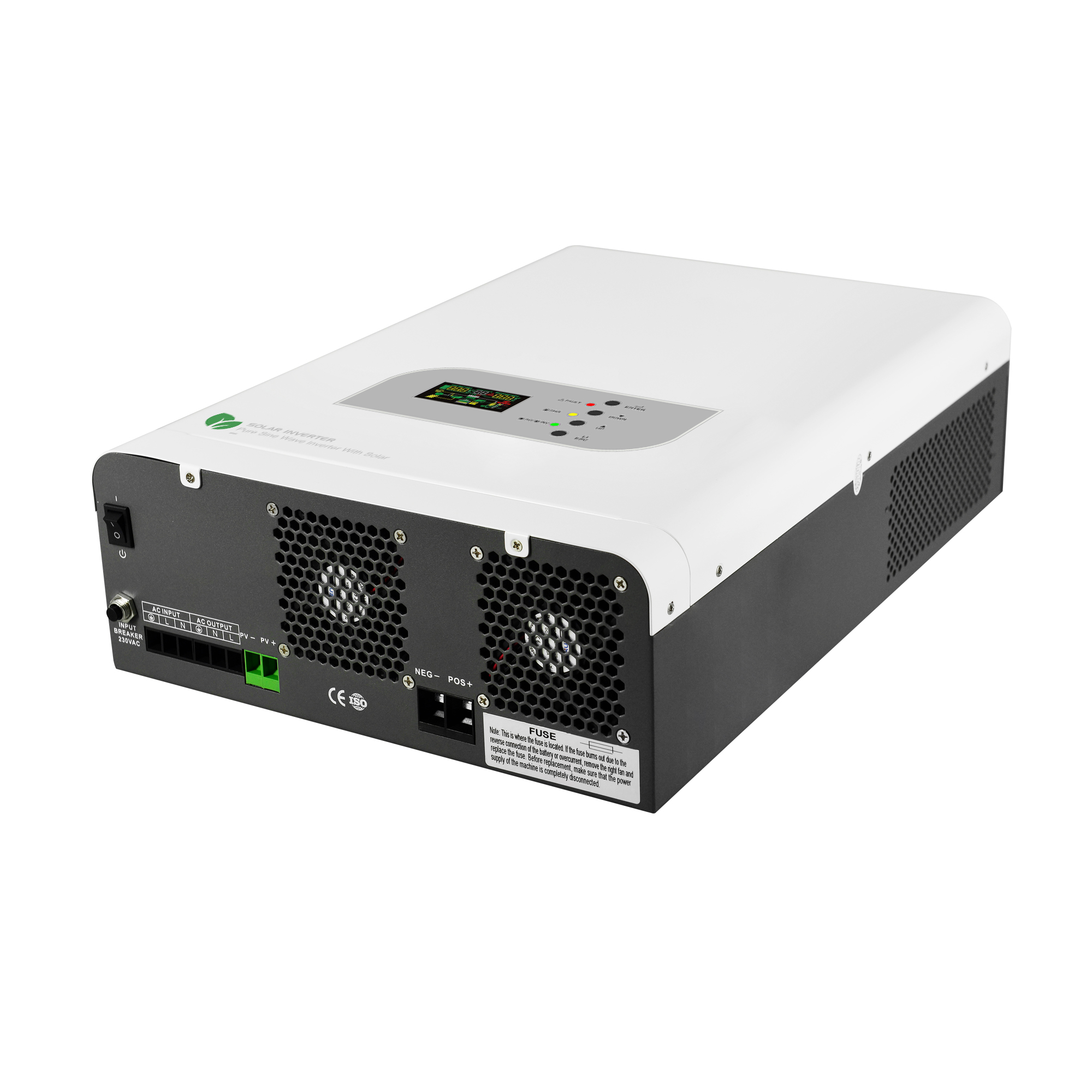

4000W 5KVA Low Frequency Off Grid 24VDC 220VAC Solar Inverter Set for Home

Share to:

Availability:

Product Description

Product Description

I Off Solar Inverter

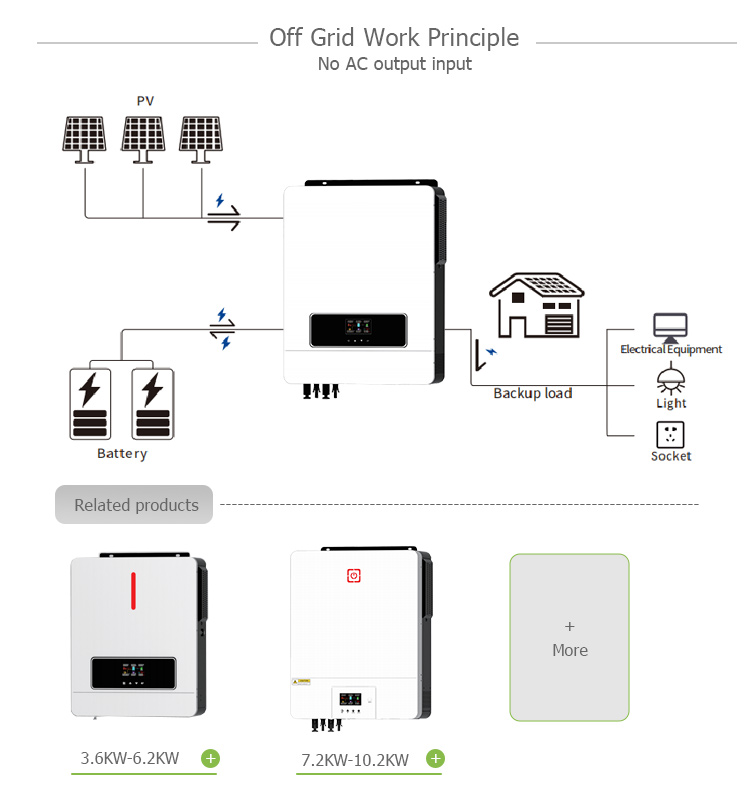

Off grid inverters are devices that do not rely on the public grid, but are powered by solar energy.

It has advantages such as pure sine wave output, efficient MPPT charging, high PV input voltage range,

and intelligent battery charging design

Product parameters

Model	TH3024	TH4024	TH5024	TH6348	TH8048
AC Input voltage	220VAC(standard)
Input voltage range	154 - 264VAC±3V (Nor Model)185- 264VAC ±3V(UPS model) 175- 285VAC±3V(AVR Type)
Input frequency	50/ 60Hz±5%
Out put power	3000VA 2400W	4000VA 3200W	5000VA 4000W	6000VA 5000W	8000VA 6400W
AC model output Voltage	The output voltage under the mains is the same as the input voltage(with AVR function 220V±10%)
Battery model output frequency	The output frequency under the mains is the same as the input frequency
Battery model output voltage	220VAC±10%
Battery model output frequency	50HZ or 60HZ±1%
Battery model output wave	Pure sine wave
Battery type	External lead-acid battery,Gel battery, water battery or Lithium battery
Battery voltage	24 / 48VDC					48VDC
Battery charging voltage	27 / 54VDC					54VDC
Maximum PV array power	24V:1600W 48V:3200W					6400W
Solar input voltage range	24V: MPPT 30V-150VDC 48V: MPPT 60V- 150VDC 48V: MPPT 80V- 150VDC					48V: MPPT 60V- 150VDC
Maximum PV Display Open Circuit Voltage	150VDC					150VDC
Maximum solar charging current	29A/15A	35A/20A	48A/24A	29A	38A
Maximum AC Charge Current	154~280VAC
Transfer time	≤10ms(UPS) /≤20ms (INV)
load peak ratio	(MAX)3:1
Protective function	Under the mains : input overcurrent fuse Under inverter: overload protection,short circuit protection, low voltage protection, (with battery anti-reverse connection,board).
Status Display	You can view parameters such as AC voltage, AC frequency, PVvoltage, PV current, output voltage, output frequency, battery voltage, load current and other parameters by turning the page keys.
Voice prompt	Low battery protection buzzer long beep Low battery buzzer beeps every second Machine fault buzzer beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every second,and the output will be turned off after 30S. When the overload is greater than 150%,the output will be turned off after 300mS.
Operating temperature	0°C~40°C
Storage temperature	-15°C~45℃
Relative temperature	-10℃~90℃ no condensation
Noise	＜45dB

Products Details

Why Choose Us

Q1: Are you direct manufacturer or trading company?
Thlinkpower is a global leading energy storage solution provider, owning three manufacturing centers in Ningbo China. We have 550+ employees, and a R&D team of 150+ people with more than 10 years experience in this industry, who has deep understanding for energy storage and global carbon neutrality.

Q2: What services can thlinkpower provide you?
1. pre-sale service: Custom scheme design Pre-installation design of the system Early design of system debugging.
2. Quick install: Delivered with installation kit and video Remote Online Video Installation Guide.
3. Remote training: Online Product Training Online Troubleshooting Training.

4. After-sales service: 7 days x 24 hours dedicated and timely service Remote diagnostics and technical support and regular system maintenance.

Q3: why choose Thlinkpower inverter ?

1 Thlinkpower Solar inverters have been installed in more than 60 countries (e.g. Mid-East, EU ,Africa, Latin-America ) with currently 3 manufacture base in Ningbo ,Huizhou Shenzhen.

2 It is Your Best Choice For AC Storage Hybrid Solutions and String Inverters.

3 all Thlinkpower Solar inverters and distributors are insured by US CHUBB Insurance corporation company.

4 All Solar inverters are equipped with Standard WiFi communication.

5.All thlinkpower Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card).

Q4: What's the different between inverter and solar inverter? Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.

Q5: May I take some samples to test before placing the order ?

Yes, we can provide sample but customer should pay cost of sample and freight charge.

Q6: How about the after-sales service?

We have a big after-sales team, if you have any problems, please tell us directly and we will try our best to solve all of your problems.
