When building a solar energy storage system, the inverter is the core component that determines power safety and compatibility. Among the most common types in global and North American markets are single phase inverters and split phase inverters. Their design differences directly impact system adaptability and user experience. This article will walk you through the basics, key differences, and how to choose the right one for your needs.

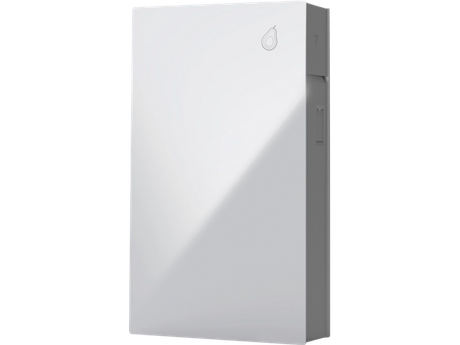

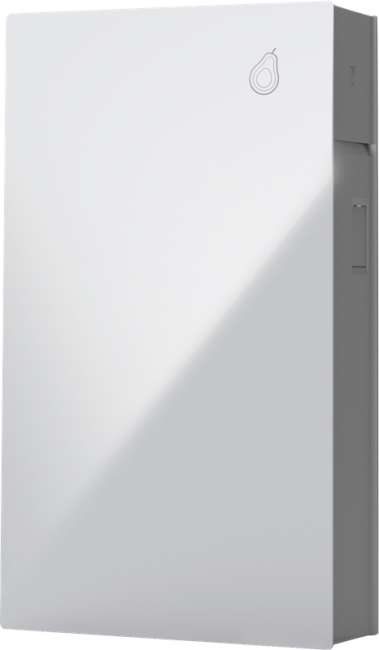

A single phase inverter is the most basic and widely used type of inverter. It outputs only a single phase AC voltage through using one live wire (L) and one neutral wire (N) to form a complete circuit.
Features: Simple structure, low cost, and typically outputs 120V (for some US standard applications) or 230V (the standard in Europe and Asia), providing only one voltage level.
Applications: Commonly used in Europe, Asia, and some small US standard systems, such as powering small household appliances, communication equipment, and single phase grid-tied solar systems.
Advantages: Mature technology, strong compatibility with most global residential single phase loads, and low maintenance costs.

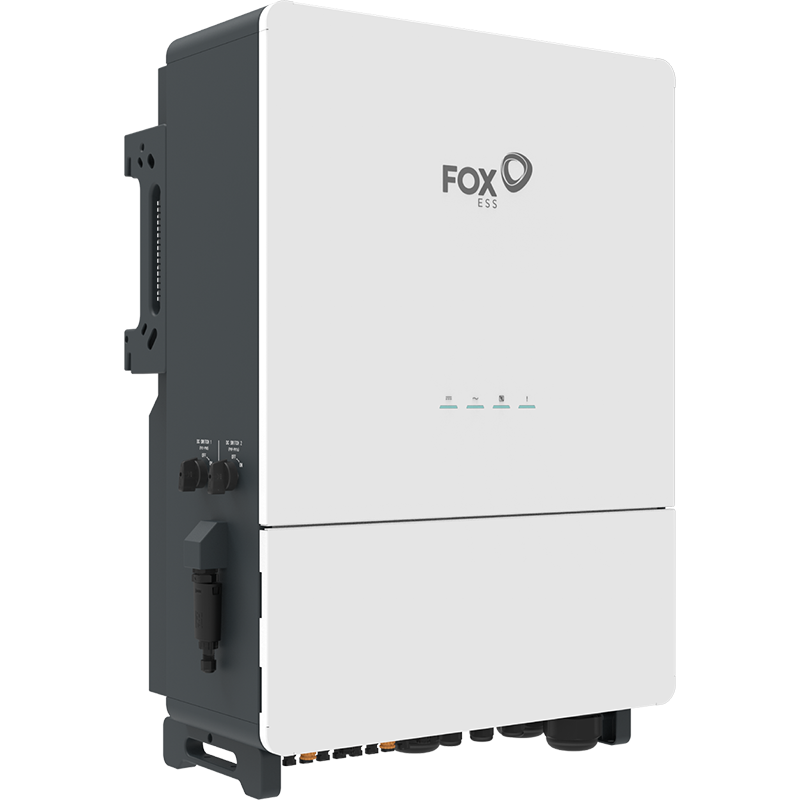

A split phase inverter is specifically designed for North American household power standards. It converts DC power into two 120V AC outputs with a 180°phase difference (L1 and L2 live wires) paired with a common neutral wire (N).
Features: It supports two power modes simultaneously: 120V between L1-N or L2-N, and 240V between L1-L2, perfectly matching North America’s dual-voltage household power needs.
Applications: Primarily used in North American residential off-grid or grid-tied solar storage systems, powering both 120V small appliances (refrigerators, lighting) and 240V high-power devices (air conditioners, dryers, electric ovens).
Advantages: Eliminates the need for additional voltage conversion equipment by supporting both low-voltage and high-power loads, making it the standard choice for North American home energy storage systems.
Here’s a clear comparison across critical dimensions to help you see their differences.
Item | Single Phase Inverter | Split Phase Inverter |
Output Voltage | Single output: 120V or 230V (only one voltage level) | Dual-voltage output: 120V at L1-N/L2-N, 240V at L1-L2 |
Phase Difference | None (single phase power supply) | 180°phase difference between L1 and L2, forming symmetric dual outputs |
Applicable Regions | Global compatibility (Europe, Asia, some small US standard scenarios) | North American households, matching the local 120/240V dual-voltage standard |
Typical Applications | Small household appliances, communication equipment, single-phase grid-tied solar systems | North American residential off-grid/grid-tied solar storage systems, supporting both small and high-power loads |
Cost | Lower, thanks to a simple structure and mature technology | Slightly higher, due to internal transformers and dual-circuit control components |
Flexibility | Limited to a single voltage level; cannot directly power 240V high-power devices | Supports both 120V and 240V loads simultaneously for superior adaptability |
Power Capacity | Primarily for low-power scenarios, with generally lower power limits than split phase inverters | Supports higher power output, ideal for whole-house powering with multiple high-power loads |
Single Phase Inverter
Wiring: Uses a simple two-wire system - One Live (L) and one Neutral (N).
Logic: It functions as a single loop. All current flows from the source through the appliance and returns via the neutral wire.
Split Phase Inverter
Wiring: Uses a three-wire system - Two Hot lines (L1, L2) and one Center-Tapped Neutral (N).
Logic: It acts like two synchronized single-phase sources. This allows it to bridge the two hot lines for high voltage (240V) or use one hot line and the neutral for standard voltage (120V).
The "Split" in split phase refers to the phase angle.
The Waveform: In a split phase system, the sine wave of L1 and L2 are perfectly mirrored. When L1 reaches its positive peak of +170V (peak voltage), L2 simultaneously reaches its negative peak of -170V.
Potential Difference: Because they are 180° out of phase, the voltage between them is the sum of their amplitudes: 120V - (-120V) = 240V. A standard single-phase inverter cannot do this because it lacks the second, mirrored vector.
This is the most critical factor for North American home safety:
Single Phase
The neutral wire must be sized to carry the full current of the system.
Split Phase
If you have a 10A load on L1 and a 10A load on L2, the currents cancel each other out in the neutral wire, resulting in 0A on the neutral.
If the loads are unbalanced (e.g., 10A on L1 and 4A on L2), the neutral only carries the difference (6A). This creates a much more efficient and cooler-running electrical panel.
Single Phase: Often uses transformerless topology (H-Bridge), making it lightweight and highly efficient for simple grids.
Split Phase: Requires more complex internal architecture. Many off-grid split-phase inverters utilize a heavy Low-Frequency Transformer or an Autotransformer to "split" the phase reliably while maintaining voltage stability under heavy "unbalanced" loads (where one leg is used much more than the other).
Selecting the right solar inverter is a strategic decision that determines the efficiency, scalability, and ROI of a photovoltaic system. For B2B stakeholders like wholesalers and distributors, the choice should be guided by the specific technical requirements and economic goals of the target end-user.
If you’re in Europe, Asia, or other regions using 230V single phase power, a single phase inverter is the most cost-effective and reliable choice. It requires no additional adaptation and works seamlessly with local grids and household loads.
If you’re in North America, where households use the 120V and 240V dual-voltage standard, a split phase inverter is essential. Without it, you won’t be able to power 240V devices like dryers and air conditioners.
If your loads are limited to small appliances, lighting, and communication devices, with no 240V high-power equipment, a single phase inverter will fully meet your needs at a lower cost with simpler maintenance.
If you need to power both 120V small loads and 240V high-power devices simultaneously, or want to power your entire home, a split phase inverter is the better choice, eliminating the need for extra voltage conversion equipment.
To ensure long-term viability, always select inverters that are compatible with the latest high-wattage PV modules and offer robust software for remote diagnostics and firmware updates.
At Thlinkpower, we are specialized engineers dedicated to powering commercial and industrial operations. Our expertise is focused exclusively on commercial and industrial energy storage systems and advanced solar inverters.
If you have procurement or adaptation needs for single phase inverters or split phase inverters, feel free to contact us for product specifications and technical support. By selecting the right solar inverter technology, you ensure long-term performance, customer satisfaction, and a sustainable future.
