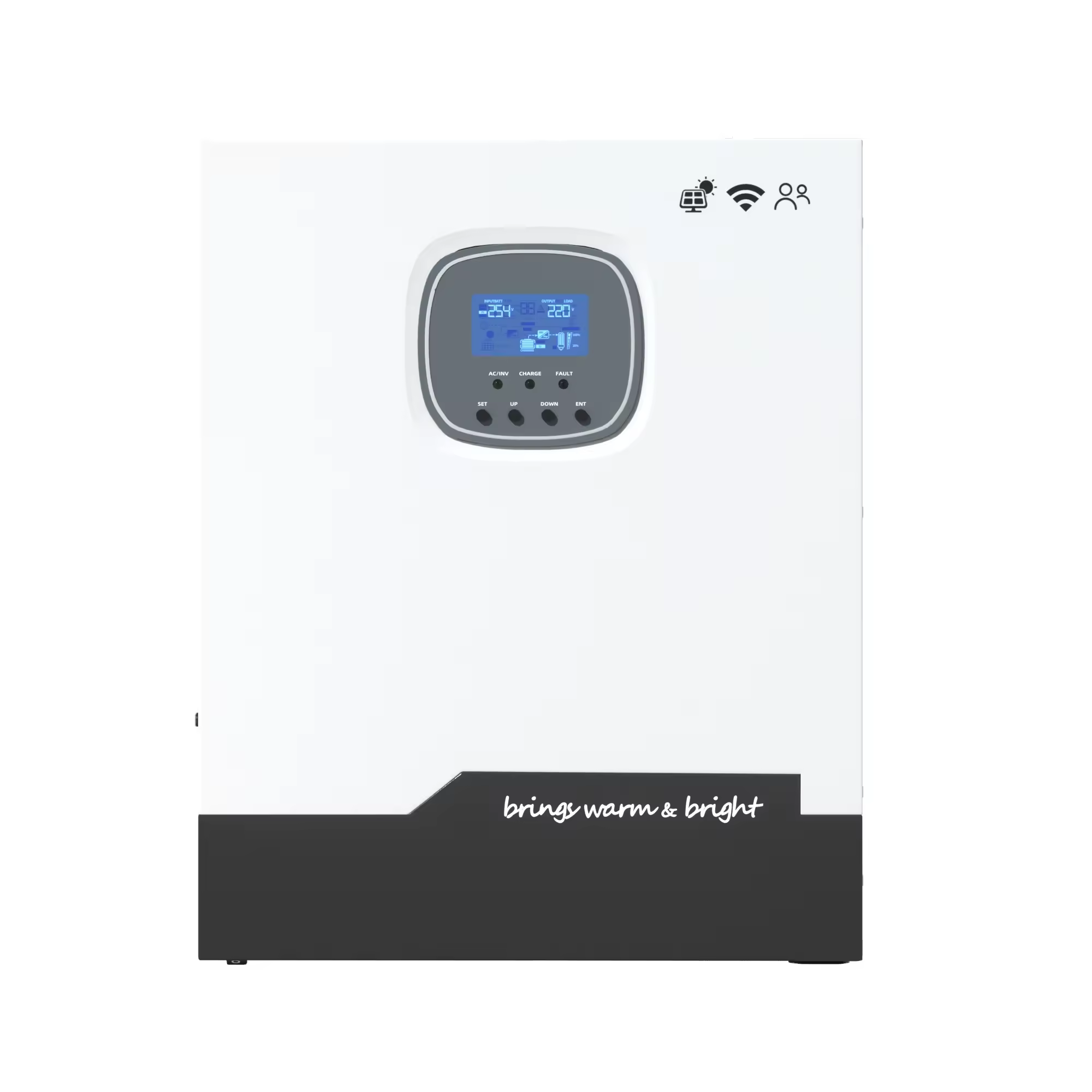

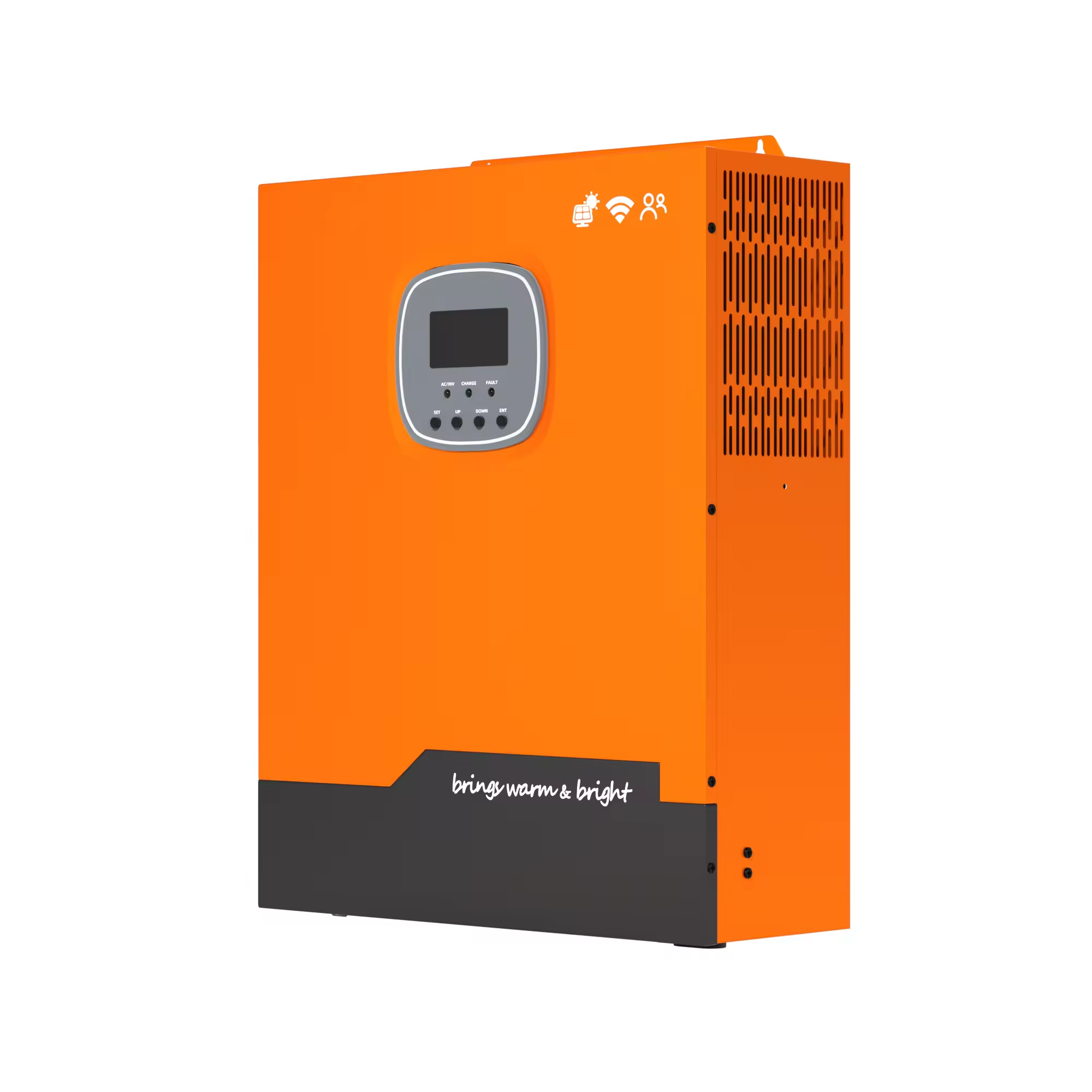

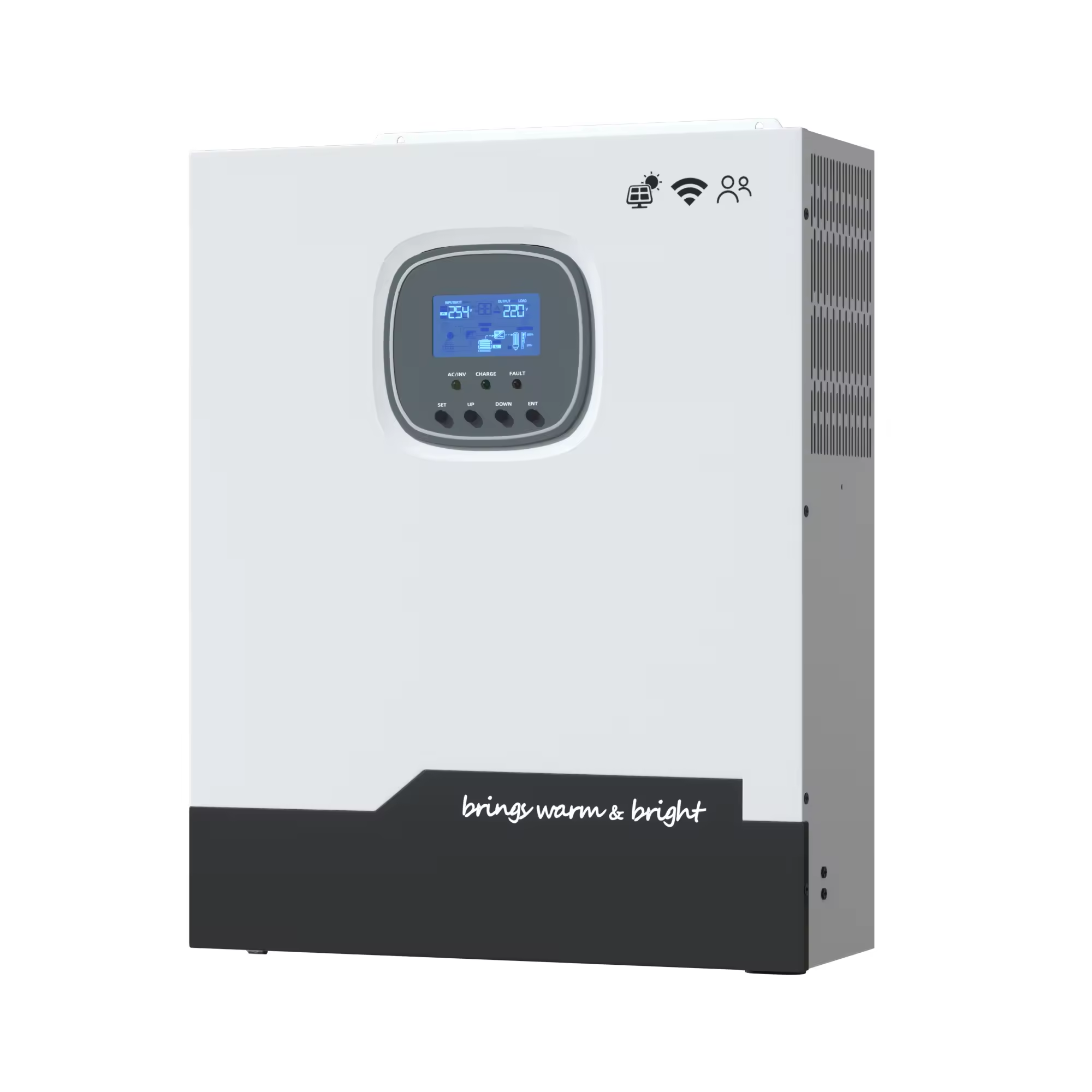

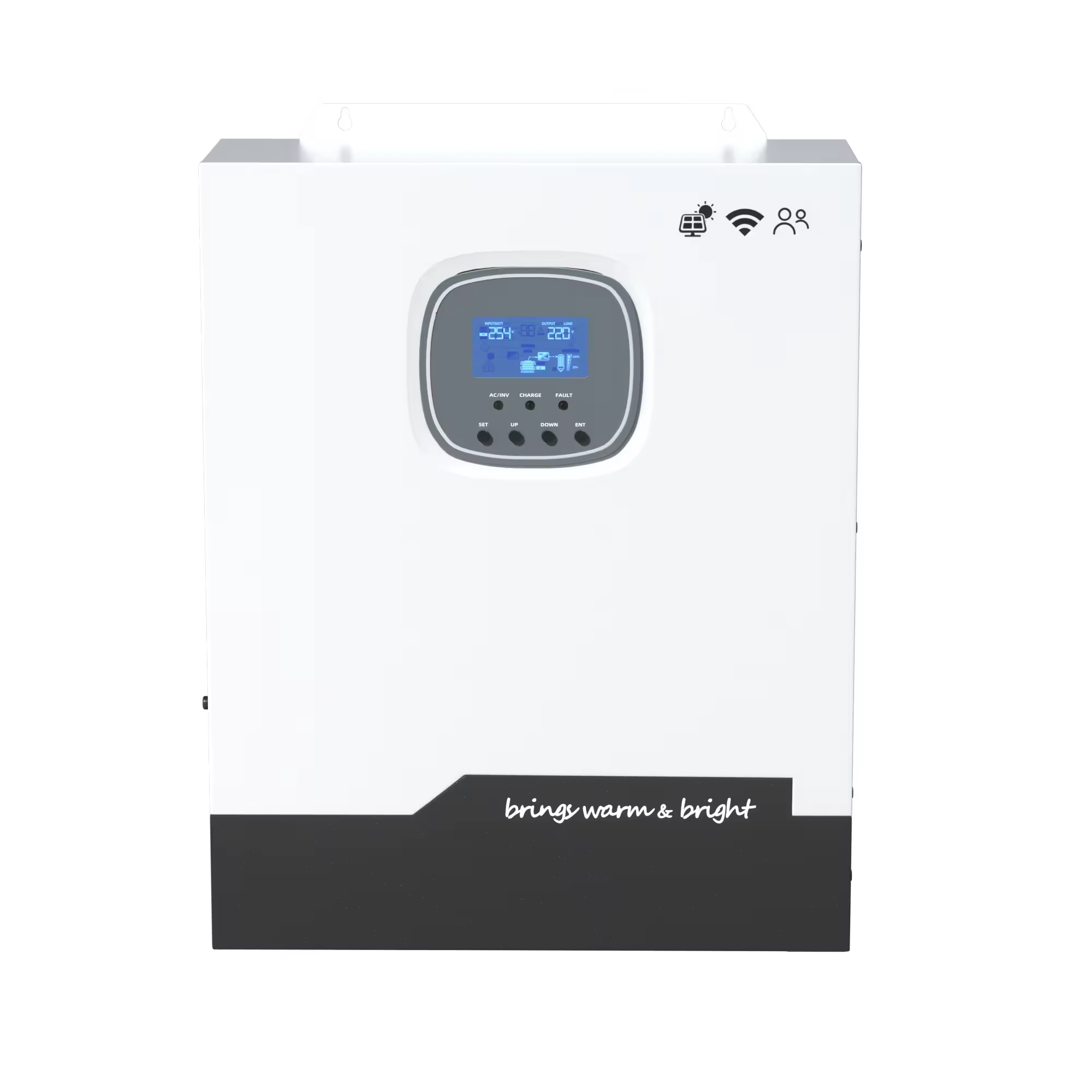

3.5KW Touch Button LED Display Inverter On Grid Inverter Solare

Share to:

Availability:

Product Description

Product Description

Product parameters

Rated output power	3kw	5kw	8kw	10kw
Rated input voltage	220 / 230V AC
Input voltage range	(170Vac~280Vac) ±2%/(90Vac-280Vac)±2%
Frequency Range	47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz)
Switch time	10ms
Rated output voltage	230V AC
Output frequency range	50Hz ± 0.3Hz/60Hz ± 0.3Hz
Output voltage waveform	Pure sine wave
Maximum Efficiency	>92%
Battery voltage	24V DC	48V DC	48V DC	48V DC
Battery type	Lead acid or lithium battery
PV operating voltage range	30-100V DC	40-60V DC	120-500V DC	120-500V DC
Battery voltage range	20-33V DC	40-60V DC	40-60V DC	40-60V DC
Maximum output powe	1400W	3400W	11000W	11000W
Parallel	no	no	no	no
Protection	Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery... settable on LCD screen
Communication interface	USB/RS485(WiFi/GPRS is optional)/Dry node control
Size (LWD)mm	378280103	378280103	717507210	717507210
Weight (kg)	8	12	26	26

For more models and information of solar inverter, please feel free to Contact us

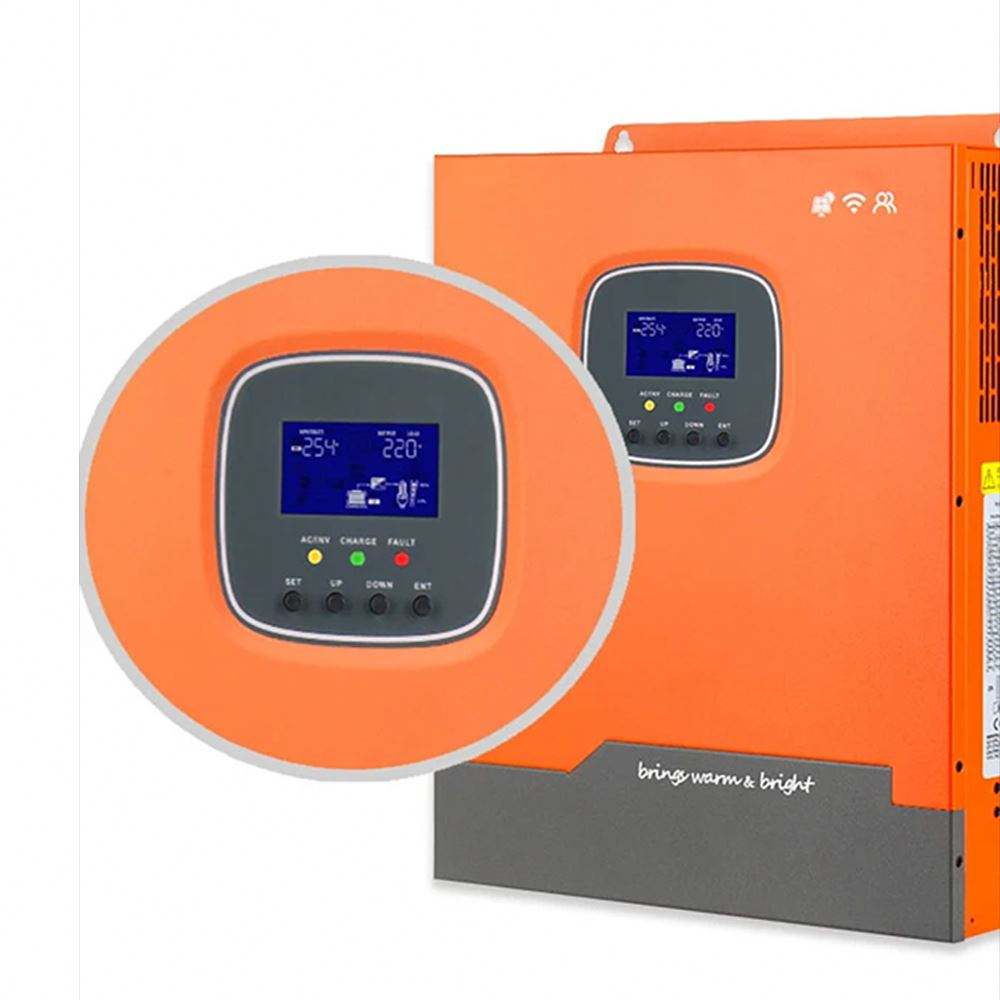

I SDPO Solar Inverter

Grid Solar Inverter can be widely used in various home storage application environments.

Combined with smart display, it makes operation and maintenance easier.

Product parameters

Recommend Products

Products Details

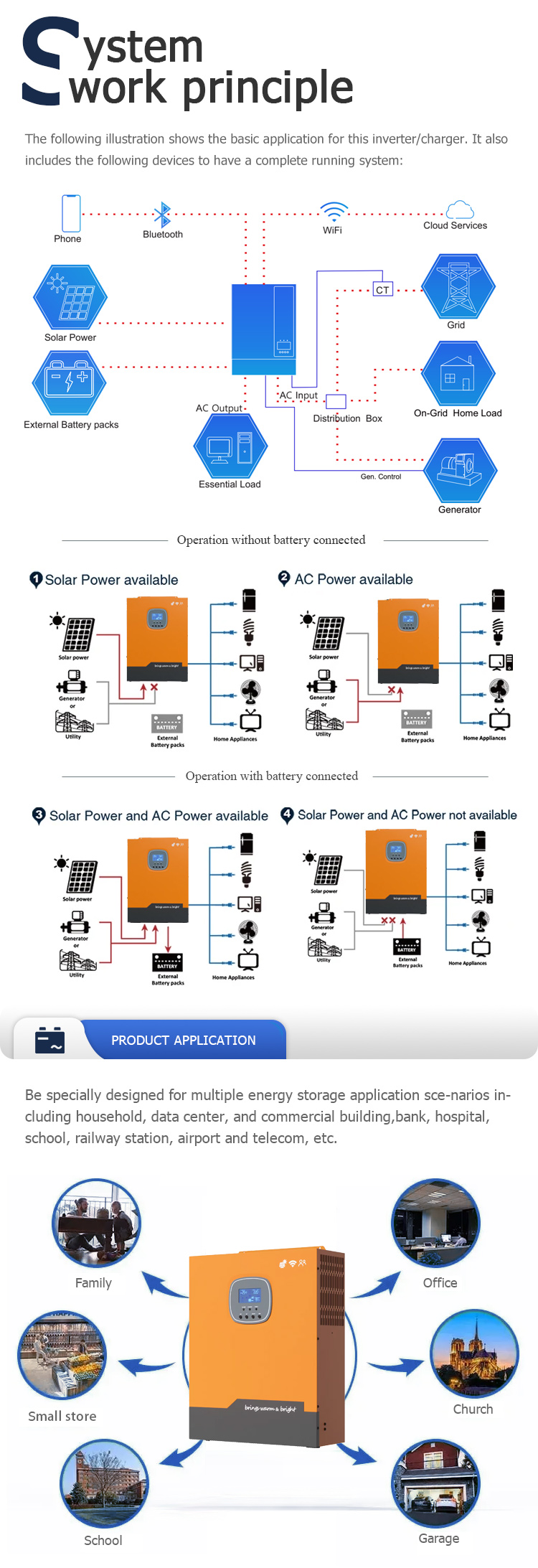

Application

Why Choose Us

FAQ

Q1: Are you direct manufacturer or trading company?
Thlinkpower is a global leading energy storage solution provider, owning three manufacturing centers in Ningbo China. We have 550+ employees, and a R&D team of 150+ people with more than 10 years experience in this industry, who has deep understanding for energy storage and global carbon neutrality.

Q2: What services can thlinkpower provide you?
1. pre-sale service: Custom scheme design Pre-installation design of the system Early design of system debugging.
2. Quick install: Delivered with installation kit and video Remote Online Video Installation Guide.
3. Remote training: Online Product Training Online Troubleshooting Training.
4. After-sales service: 7 days x 24 hours dedicated and timely service Remote diagnostics and technical support and regular system maintenance.

Q3: why choose Thlinkpower inverter ?

1 Thlinkpower Solar inverters have been installed in more than 60 countries (e.g. Mid-East, EU ,Africa, Latin-America ) with currently 3 manufacture base in Ningbo ,Huizhou Shenzhen.

2 It is Your Best Choice For AC Storage Hybrid Solutions and String Inverters.

3 all Thlinkpower Solar inverters and distributors are insured by US CHUBB Insurance corporation company.

4 All Solar inverters are equipped with Standard WiFi communication. 5.All thlinkpower Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card).

Q4: What's the different between inverter and solar inverter?

Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.

Q5: May I take some samples to test before placing the order ?
Yes, we can provide sample but customer should pay cost of sample and freight charge.

Q6: How about the after-sales service?
We have a big after-sales team, if you have any problems, please tell us directly and we will try our best to solve all of your problems.
