Home / Products / Solar Inverter / Hybrid Inverter for Sale / 3.6KW Split Type Dual PV Input Energy Storage System Power Inverter 4000W
This product is no longer available

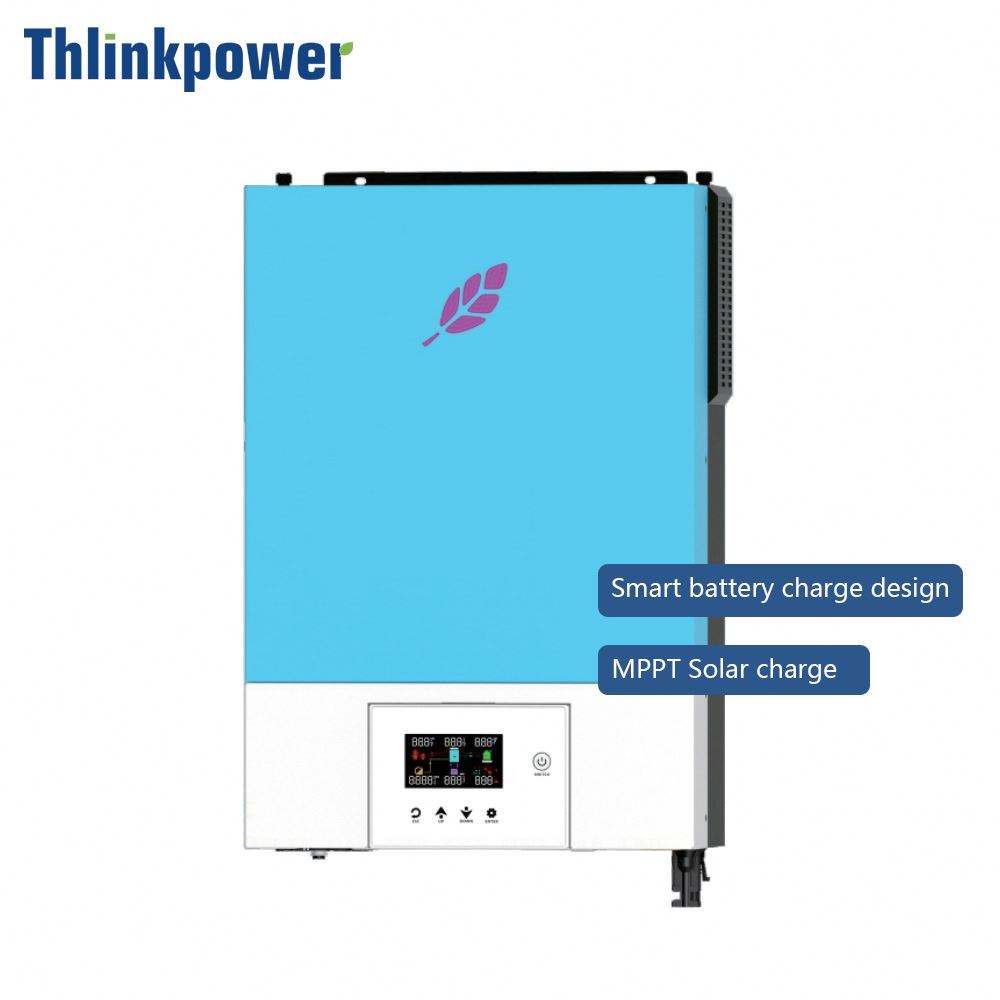

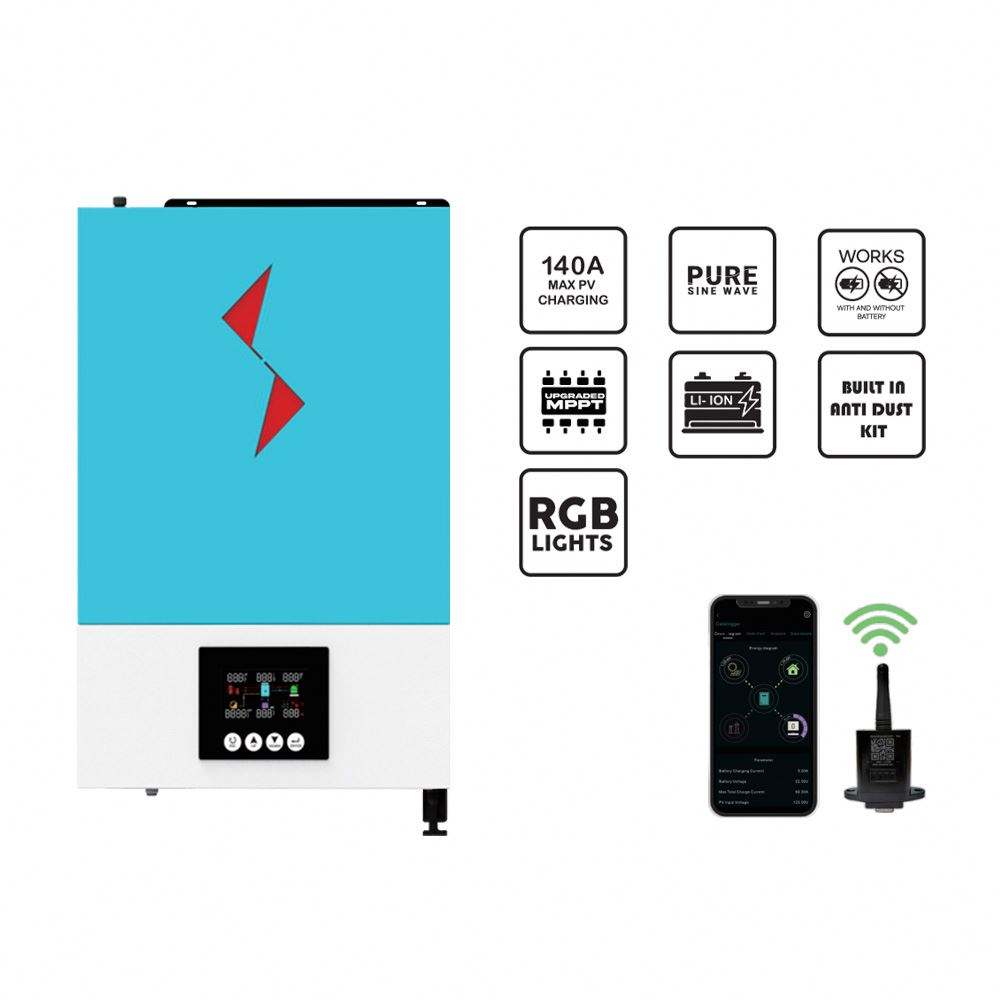

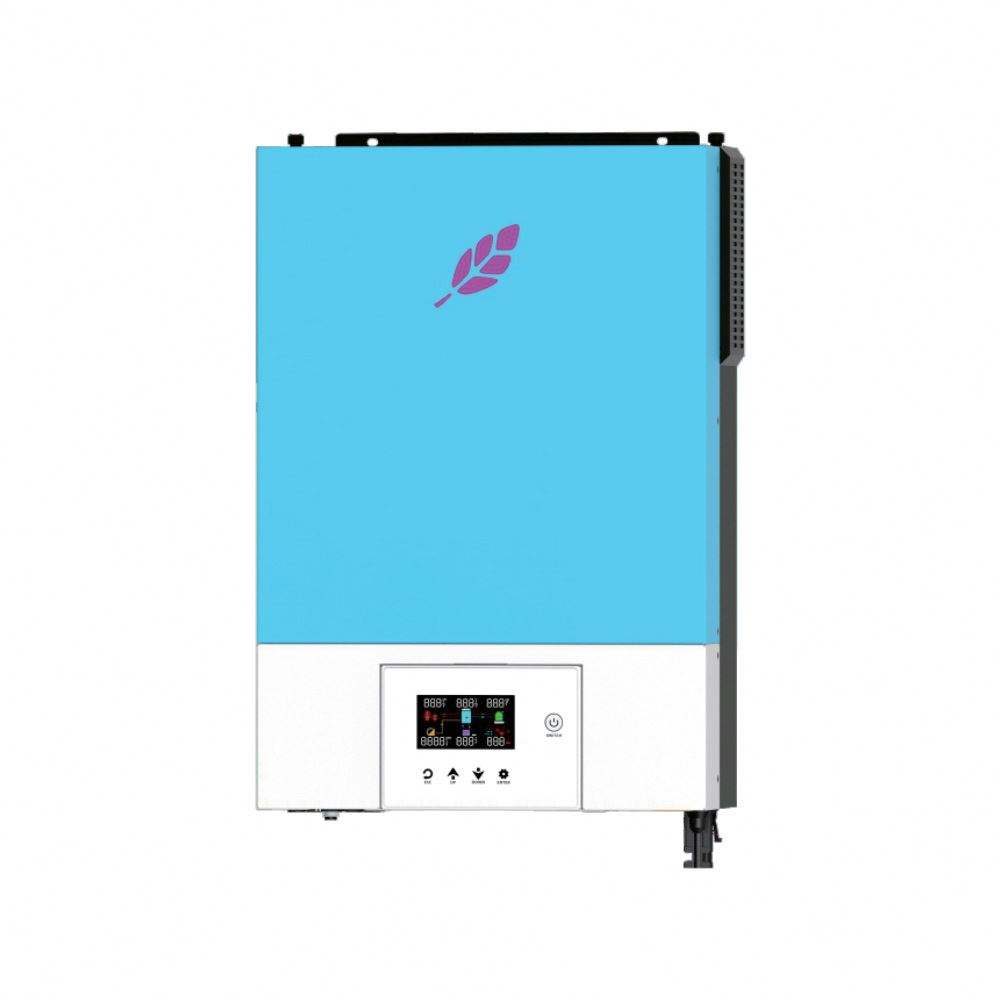

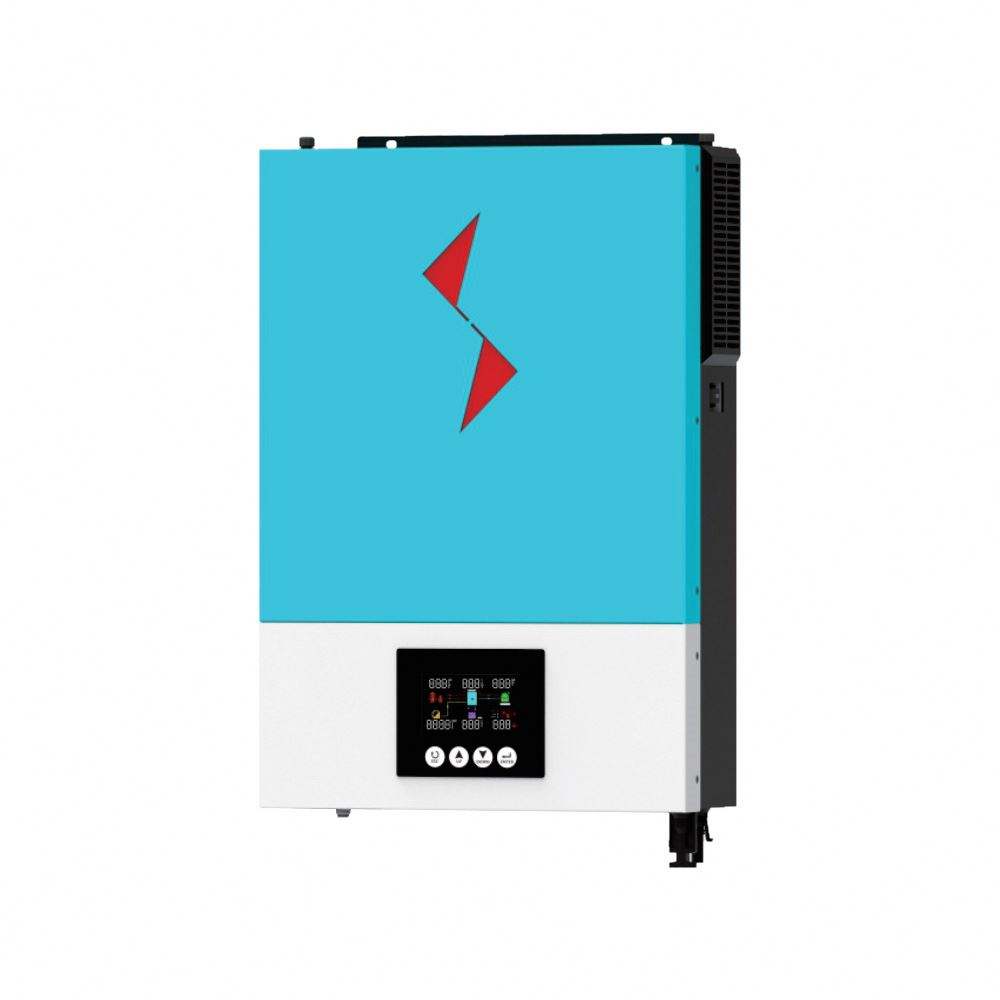

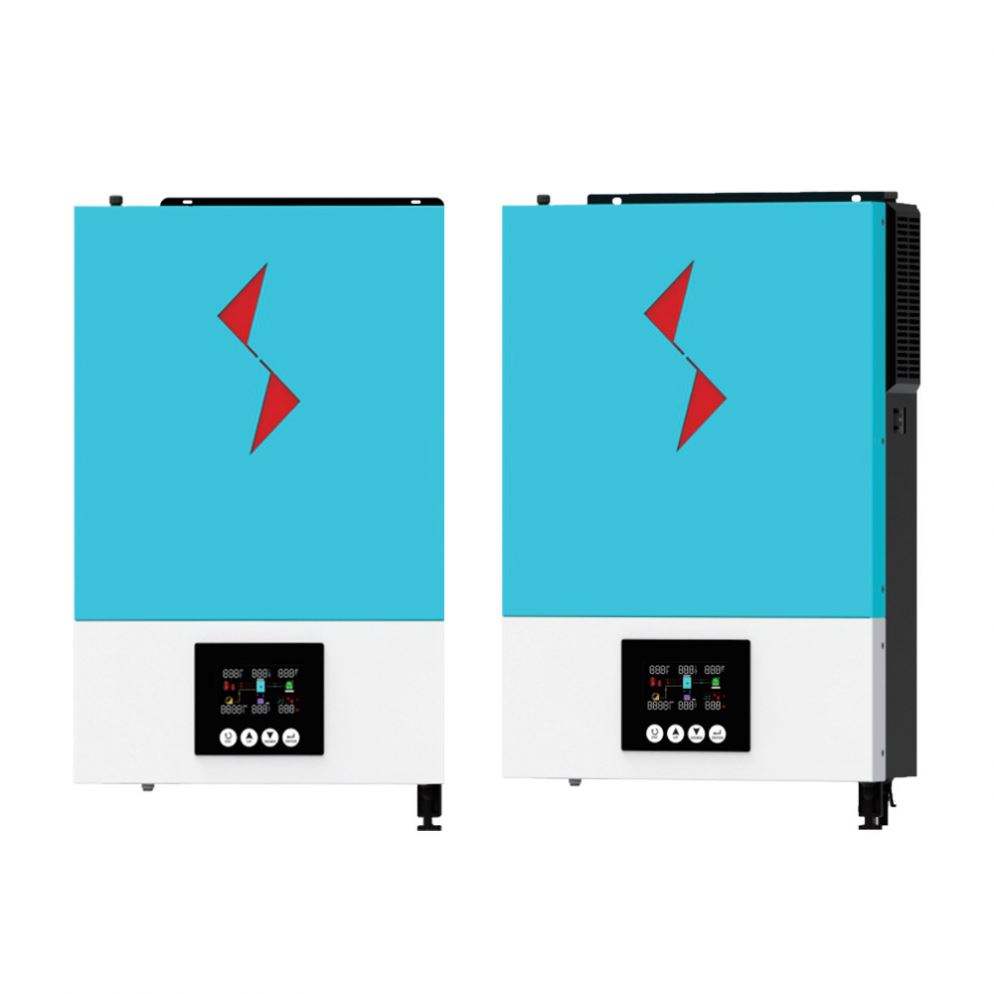

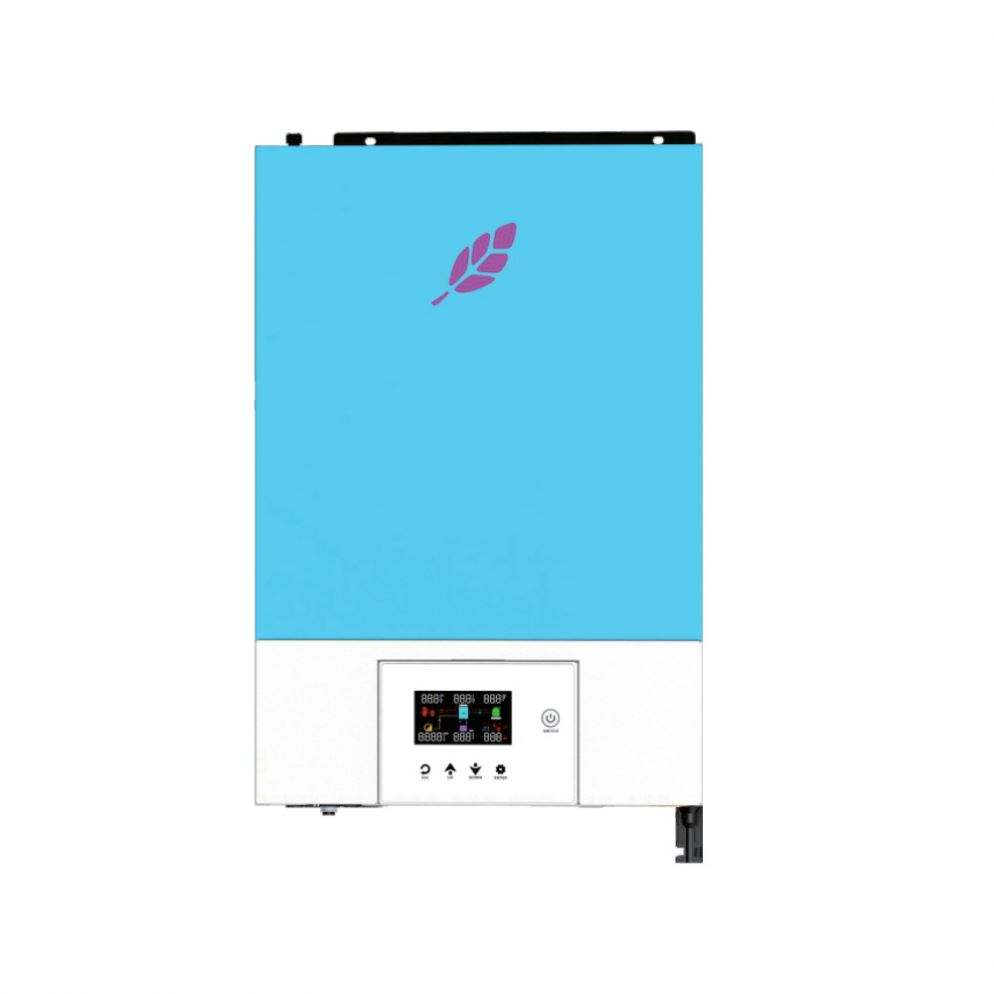

3.6KW Split Type Dual PV Input Energy Storage System Power Inverter 4000W

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:

Product Description

System Power Inverter
System Power Inverter

I ON/OFF Grid Solar Inverter

On / off Grid Solar Inverter can be widely used in various home storage application environments.
Combined with smart display, it makes operation and maintenance easier.
System Power Inverter
System Power Inverter
System Power Inverter
Product parameters
System Power Inverter
Model
3.6KW
4.2KW
8.2W
6.2W



Phase
1 Phase

Maximum PV Input Power
6200W
6200W
5400W+5400W
6500W
5400W+5400W



Rated Output Power
3600W
4200W
6200W



Maximum Solar Charging Current
120A
120A
120A



GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage
360/500VDC


Start-up Voltage / Initial Feeding Voltage
60VDC/90VDC

MPPT Voltage Range
60~450VDC

18.2A
27A

Maximum Input Current
1/18A
1/18A
2/18A
1/22A
2/18A



GRID OUTPUT (AC)
Nominal Output Voltage
220/230/240VAC

Output Voltage Range
190~253VDC

Nominal Output Current
15.7A
18.2A
27A



Power Factor
>0.99

EFFICIENCY
Maximum Conversion Efficiency (DC/AC)
98%

TWO LOAD OUTPUT POWER
Full Load
3600W
4200W
6200W



Maxium Main Load
3600W
4200W
6200W



Maxium Second Load(battery mode)
1200W
1400W
2067W



Maxium Load Cut Off Voltage
26V DC
26V DC
52V DC



Maxium Load Return Voltage
27V DC
27V DC
54V DC



OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage
120-140VAC/180VAC

Acceptable Input Voltage Range
90-280VACor170-280VAC

Frequency Range
48~52 HZ

Maximum AC Input Current
30A
30A
40A



PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage
360/500VDC

MPPT Voltage Range
90~450VDC

Maximum Input Current
1/18A
1/18A
1/22A



BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
220/230/240VAC

Output Waveform
Pure sine wave

Efficiency (DC to AC)
94%

For more models and information of solar inverter, please feel free to         Contact us
Recommend Products
System Power Inverter
Products Details
System Power Inverter
Application
System Power Inverter
System Power Inverter
Why Choose Us
System Power Inverter
System Power Inverter
FAQ
System Power Inverter
Q1: Are you direct manufacturer or trading company?
Thlinkpower is a global leading energy storage solution provider, owning three manufacturing centers in Ningbo China. We have 550+ employees, and a R&D team of 150+ people with more than 10 years experience in this industry, who has deep understanding for energy storage and global carbon neutrality.

Q2: What services can thlinkpower provide you?
1. pre-sale service: Custom scheme design Pre-installation design of the system Early design of system debugging.
2. Quick install: Delivered with installation kit and video Remote Online Video Installation Guide.
3. Remote training: Online Product Training Online Troubleshooting Training.
4. After-sales service: 7 days x 24 hours dedicated and timely service Remote diagnostics and technical support and regular system maintenance.


Q3: why choose Thlinkpower inverter ?. 1 Thlinkpower Solar inverters have been installed in more than 60 countries (e.g. Mid-East , EU ,Africa, Latin-America ) with currently 3 manufacture base in Ningbo ,Huizhou Shenzhen. 2 It is Your Best Choice For AC Storage Hybrid Solutions and String Inverters. 3 all Thlinkpower Solar inverters and distributors are insured by US CHUBB Insurance corporation company. 4 All Solar inverters are equipped with Standard WiFi communication. 5.All thlinkpower Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card).



Q4: What's the different between inverter and solar inverter? Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.



Q5: May I take some samples to test before placing the order ?
Yes, we can provide sample but customer should pay cost of sample and freight charge.



Q6: How about the after-sales service?
We have a big after-sales team, if you have any problems, please tell us directly and we will try our best to solve all of your problems.
