AC Coupling: Adding Backup to Your Grid-Tied Solar System

Introduction

Grid-tied solar systems have become the most popular choice for residential and commercial users due to their simplicity, efficiency, and affordability.

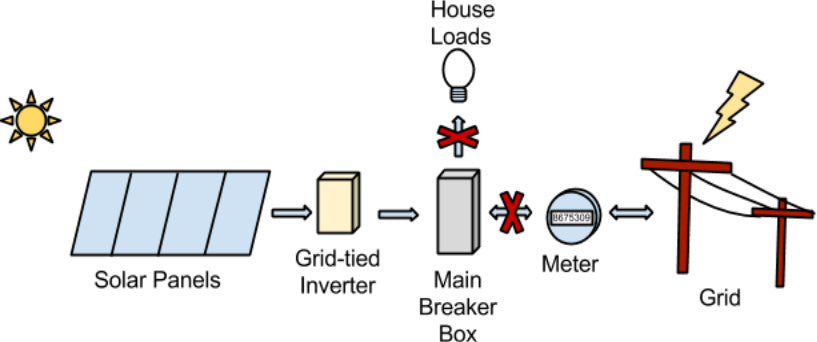

However, they come with one major limitation — when the utility grid fails, these systems automatically shut down to protect utility workers from potential back-feed electricity.
That means, even if the sun is shining, your home or business goes dark.

But what if you could keep your existing system and add backup power capability without starting from scratch?
That's where AC Coupling comes in — a smart, flexible, and cost-effective solution that lets you integrate energy storage into your current grid-tied system.

What Is AC Coupling?

AC Coupling is the process of connecting a battery-based inverter/charger and a battery bank to an existing grid-tied inverter.
In this setup, your original inverter continues to convert solar DC power into AC electricity for your loads and the grid, while the battery-based inverter manages energy storage and backup power.

During the day, your grid-tie inverter powers your home and exports excess solar energy to the utility grid.

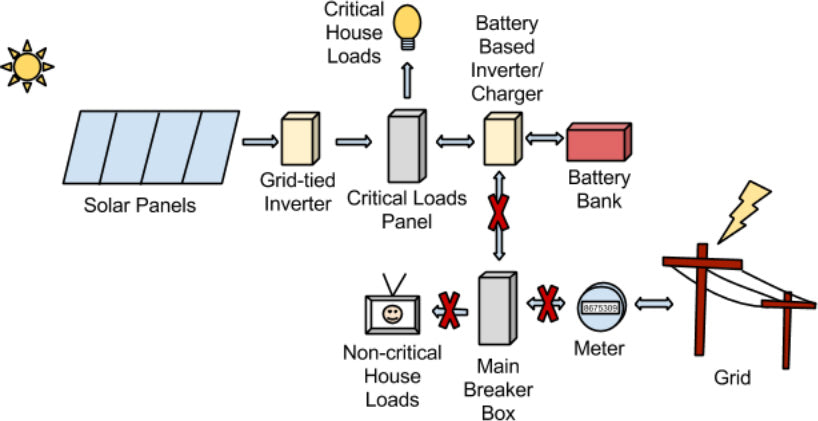

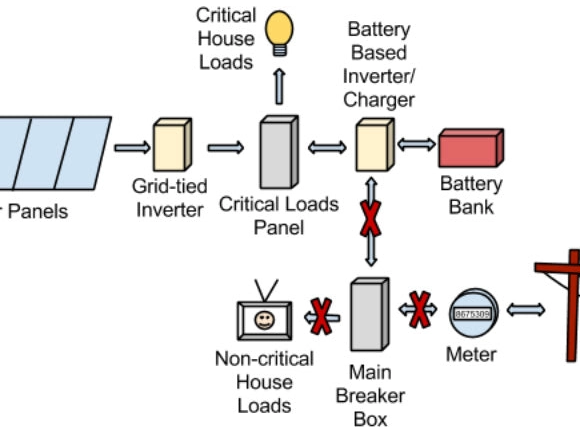

When the grid fails, your inverter/charger isolates the system from the grid, forming a mini power network (microgrid) that continues to supply energy to essential circuits.

Your battery bank doesn't need to be oversized — just enough to support critical loads such as lighting, refrigeration, water pumps, and communication devices until the utility power is restored.

How Does AC Coupling Work?

Let's break it down:

1. Normal Operation (Grid On):

• The grid-tied inverter converts DC power from solar panels to AC electricity.

• It supplies your home or business and exports any excess to the utility grid.

• The inverter/charger remains in standby mode, monitoring the system.

2. During a Power Outage (Grid Off):

• The inverter/charger instantly disconnects from the grid to ensure safety.

• It forms a stable AC signal for your critical loads panel, powering only essential circuits.

• The grid-tie inverter "sees" this signal and continues to generate solar power, which is then used to recharge the battery bank.

3. When the Grid Returns:

• The system automatically reconnects to the grid, resuming normal operation without user intervention.

This seamless transition between grid power, solar power, and stored energy makes AC coupling a highly efficient hybrid solution.

Common AC Coupling Configurations

Different inverter manufacturers employ unique control strategies to manage power flow and prevent battery overcharging:

• OutBack Power (Radian Series):
  Uses internal relays and voltage-based triggers to disconnect and reconnect grid-tied inverters.

• Schneider Electric (Conext XW+):
  Utilizes AC frequency shifting to regulate charging cycles and maintain optimal battery voltage.

• Magnum Energy (MSPAE Series):
  Combines frequency control and diversion loads for smooth power balancing.

• SMA (Sunny Island Series):
  Employs direct communication between inverters for real-time power management and synchronization.

Advantages of AC Coupling

AC Coupling offers multiple benefits for businesses and homeowners looking to expand their solar capabilities:

✅ Cost-Effective Retrofit – Add battery backup without replacing your existing solar inverter.
✅ Reliable Power Supply – Keep essential systems running during blackouts or unstable grid conditions.
✅ Energy Independence – Store solar power for nighttime use or emergencies.
✅ Scalable Design – Easily expand your battery capacity as energy needs grow.
✅ Sustainable Operation – Reduce reliance on diesel generators and minimize carbon emissions.

For commercial and industrial users, AC Coupling also provides better load management and peak shaving, helping lower electricity costs and improve energy efficiency.

Why Choose Thlinkpower for Your AC Coupling Solution

At Thlinkpower, we specialize in delivering complete solar and energy storage solutions tailored for modern smart grids and hybrid systems.

Our product range includes:

Hybrid Solar Inverters (4–25 kW) – Seamlessly manage solar input, battery storage, and grid connection.

Battery Energy Storage Systems (BESS) – Scalable, high-performance systems for commercial and residential use.

Smart Energy Management Systems (EMS) – Real-time monitoring and intelligent power optimization.

With over 20 years of inverter manufacturing experience, Thlinkpower ensures every product meets international standards for safety, performance, and reliability.
We also offer OEM/ODM services, giving our partners flexible customization options to fit their market demands.

Conclusion

As solar energy continues to reshape the global power landscape, AC Coupling stands out as a practical solution for anyone seeking energy security, flexibility, and independence.
Whether upgrading an existing system or designing a new hybrid installation, integrating AC coupling technology ensures your solar investment delivers reliable power — even when the grid goes down.

At Thlinkpower, we don't just manufacture products — we empower sustainable energy solutions.
Explore our full range of inverters and energy storage systems to see how we can power your next project.

If you want to learn more information of AC coupling，please watch our video:
